Air guiding device for a motor-vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
N/A
app pub date -
Mar 26, 2015
filing date -
May 13, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

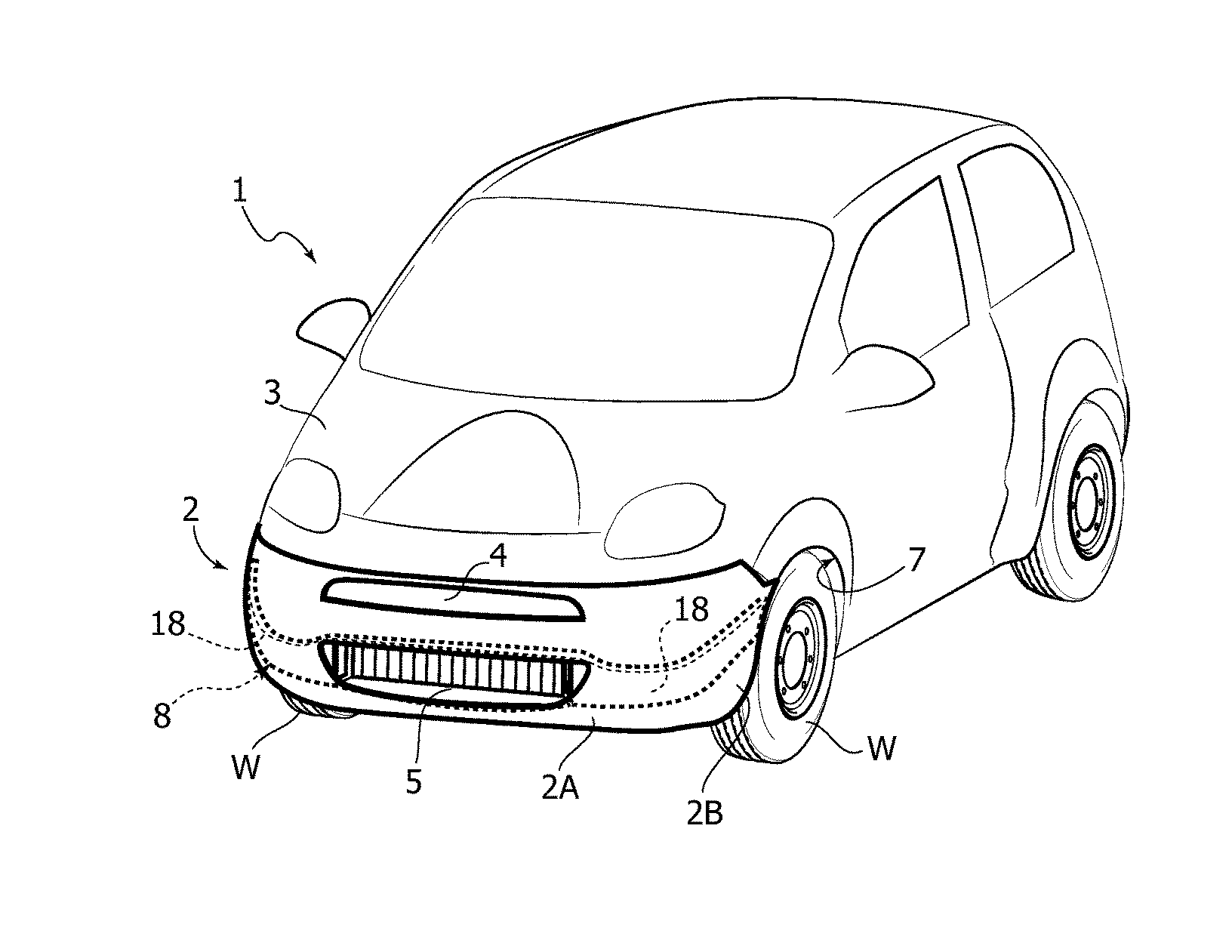

An air guiding device for a motor-vehicle includes a main chamber located at the rear of a front wall of the motor vehicle, and defined between the front wall, a rear wall which is spaced apart from the front wall and two side walls. A first opening is provided on the front wall, for the inlet of air into the main chamber, while at least one second opening on said rear wall guides the air into an engine compartment. Two side ducts extend from an inlet to an outlet giving out on a respective outer side wall of the motor-vehicle. To the second opening there is associated a device for controlling the air flow therethrough. The outlets of the two side ducts are arranged and oriented so as to generate a substantially flattened and vertical air curtain adjacent to each front wheel of the motor-vehicle.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B60K Class
- 15.87 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
