Member bonding apparatus and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
Jul 28, 2016
app pub date -
Aug 4, 2015
filing date -
Sep 16, 2014
priority date (Note) -
Published
status (Latency Note)
Importance

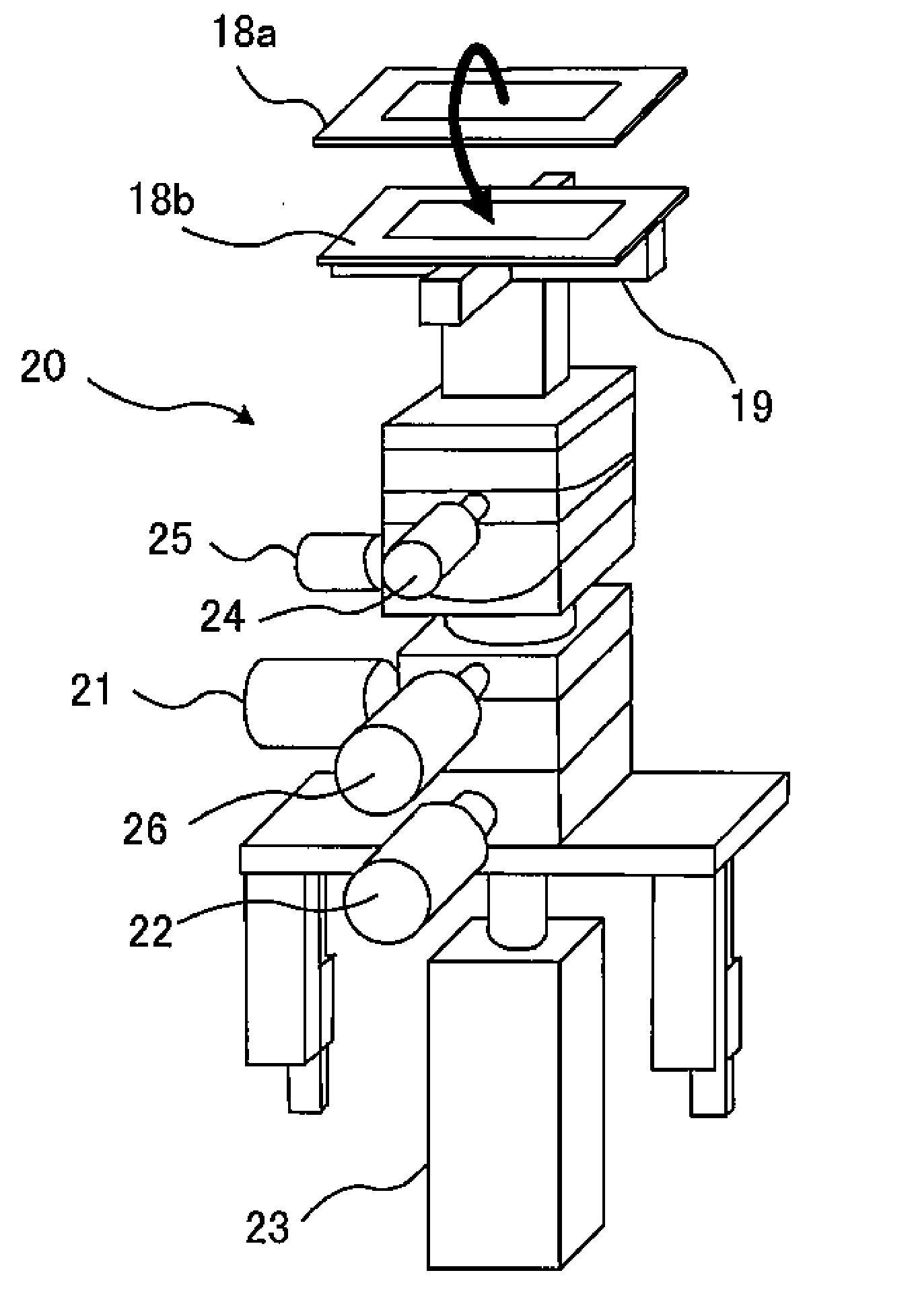

Abstract
To allow short time spreading for adhesive, verifying whether the adhesive is spread out to a member end. In obtaining a bonded member by applying the adhesive to a surface of one of two members and bonding the members with a member bonding device, a tilt adjusting device acquires with a camera an image of spreading state of the adhesive in the members' bonding surface, and adjusts the tilt of the bonded member when a non-spreading part of the adhesive between ends of the bonded member and the adhesive has a size bias so that the adhesive moves to the larger side of the part, and a spreading adjustment device controls a pushing amount and a pushing time interval of a pressing-side member to adjust spreading of the adhesive so that the part size reduces to a predetermined size depending on the part size acquired with the camera, and cures the adhesive in the bonded member edge with the non-spreading part eliminated.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- C09J Class
- 1204 Applications Filed
- 830 Patents Issued To-Date
- 68.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C09J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
