Nozzle for dissolved air flotation system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
Jul 2, 2015
app pub date -
Nov 11, 2014
filing date -
Dec 31, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

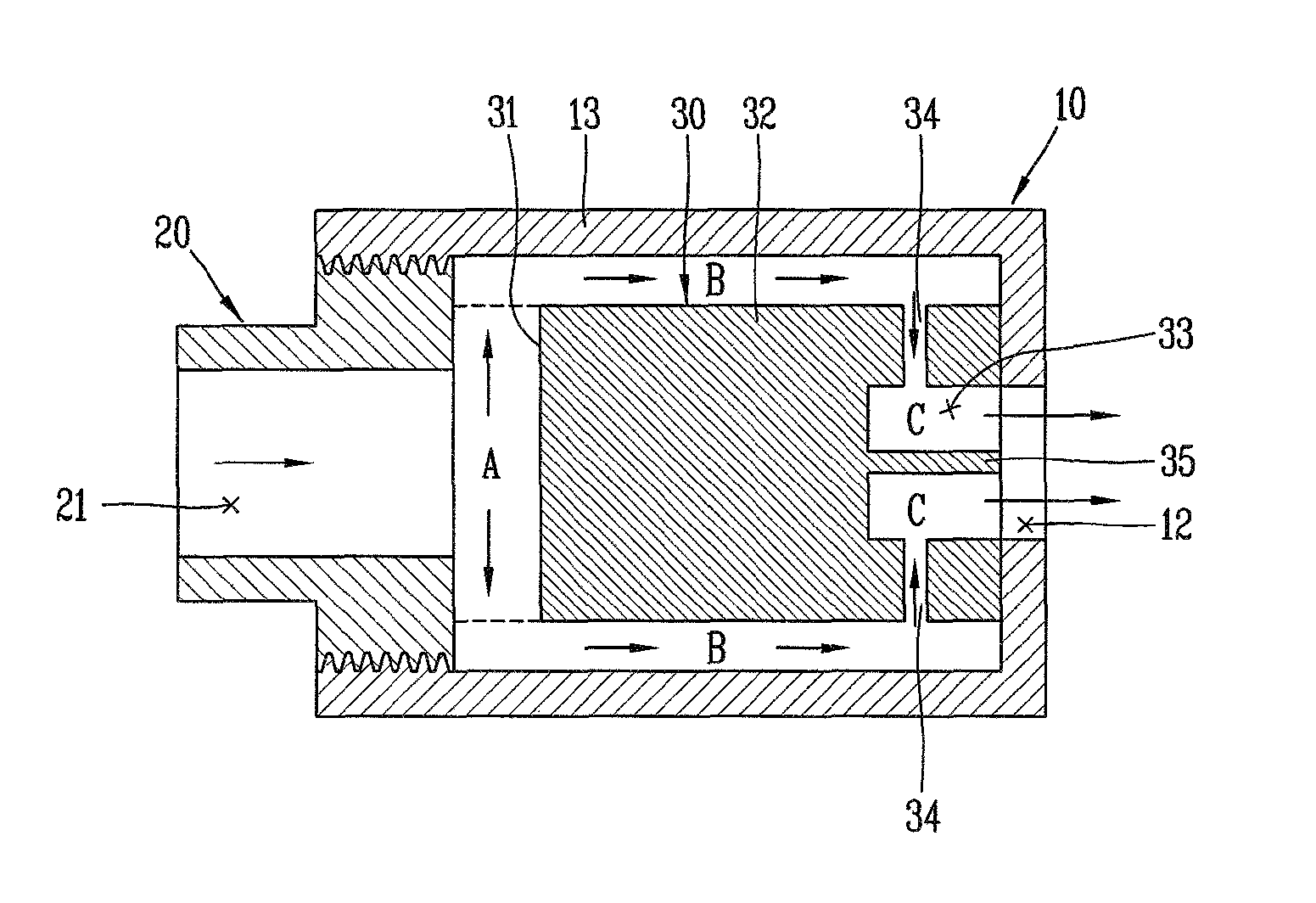

A nozzle for a dissolved air flotation system includes a housing, a nozzle connector, and a nozzle body. The housing has an inlet formed at one side and an outlet formed at another side. The nozzle connector couples to the inlet and has an inflow path formed in a longitudinal direction. The nozzle body is disposed in the housing, and includes: a collision portion formed at a first end portion of the nozzle body such that a fluid introduced along the inflow path of the nozzle connector 10 changes its flow direction and collides with an inner wall of a side portion of the housing, a plurality of faces formed at sides of the nozzle body, a plurality of side paths defined between the faces and the inner wall of the housing, and a spurt hole defined at a second end portion of the nozzle body.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B03D Class
- 56 Applications Filed
- 53 Patents Issued To-Date
- 94.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B03D Class
- 28.57 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
