Electrode-voltage waveform for droplet-velocity and chip-lifetime improvements of digital microfluidic systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
N/A
app pub date -
Apr 10, 2015
filing date -
Apr 10, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

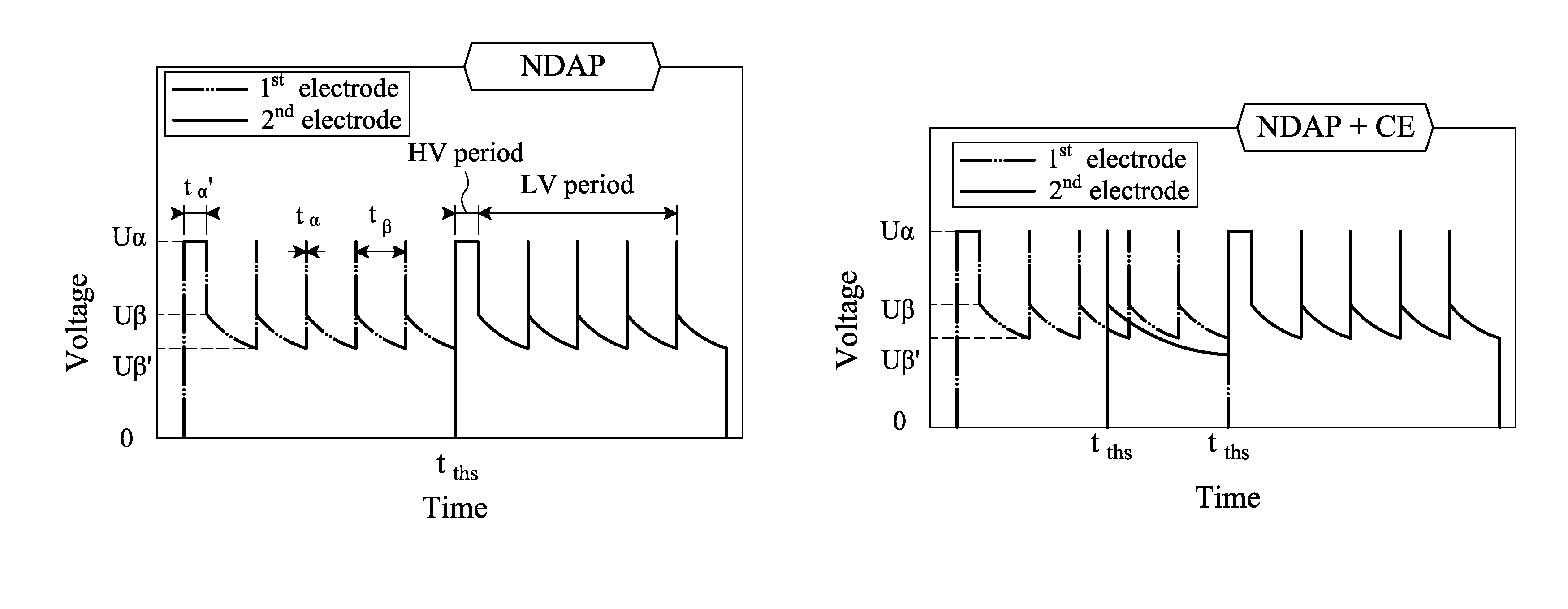

According to one aspect of the present disclosure, a control-engaged electrode-driving method for droplet actuation is provided. The method includes, a first voltage is provided to a first electrode for licking off a droplet. A second voltage is naturally discharged to a third voltage for maintaining a droplet movement. A fourth voltage is provided to the first electrode for accelerating the droplet. Naturally discharging from the second voltage to the third voltage and providing the fourth voltage to the first electrode are repeated. The first voltage is provided to a second electrode when a centroid of the droplet reaching a centroid of the first electrode. Naturally discharging from the second voltage to the third voltage and providing the fourth voltage to the second electrode are repeated.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G01N Class
- 11310 Applications Filed
- 8345 Patents Issued To-Date
- 73.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G01N Class
- 33.94 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
