Stator/rotor lamination sheet for stator/rotor laminations of generators and electric motors, stator/rotor lamination with such a stator/rotor lamination sheet as well as method for manufacturing a stator/rotor lamination sheet
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 31, 2017
Grant Date -
Dec 18, 2014
app pub date -
May 13, 2014
filing date -
Jun 13, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

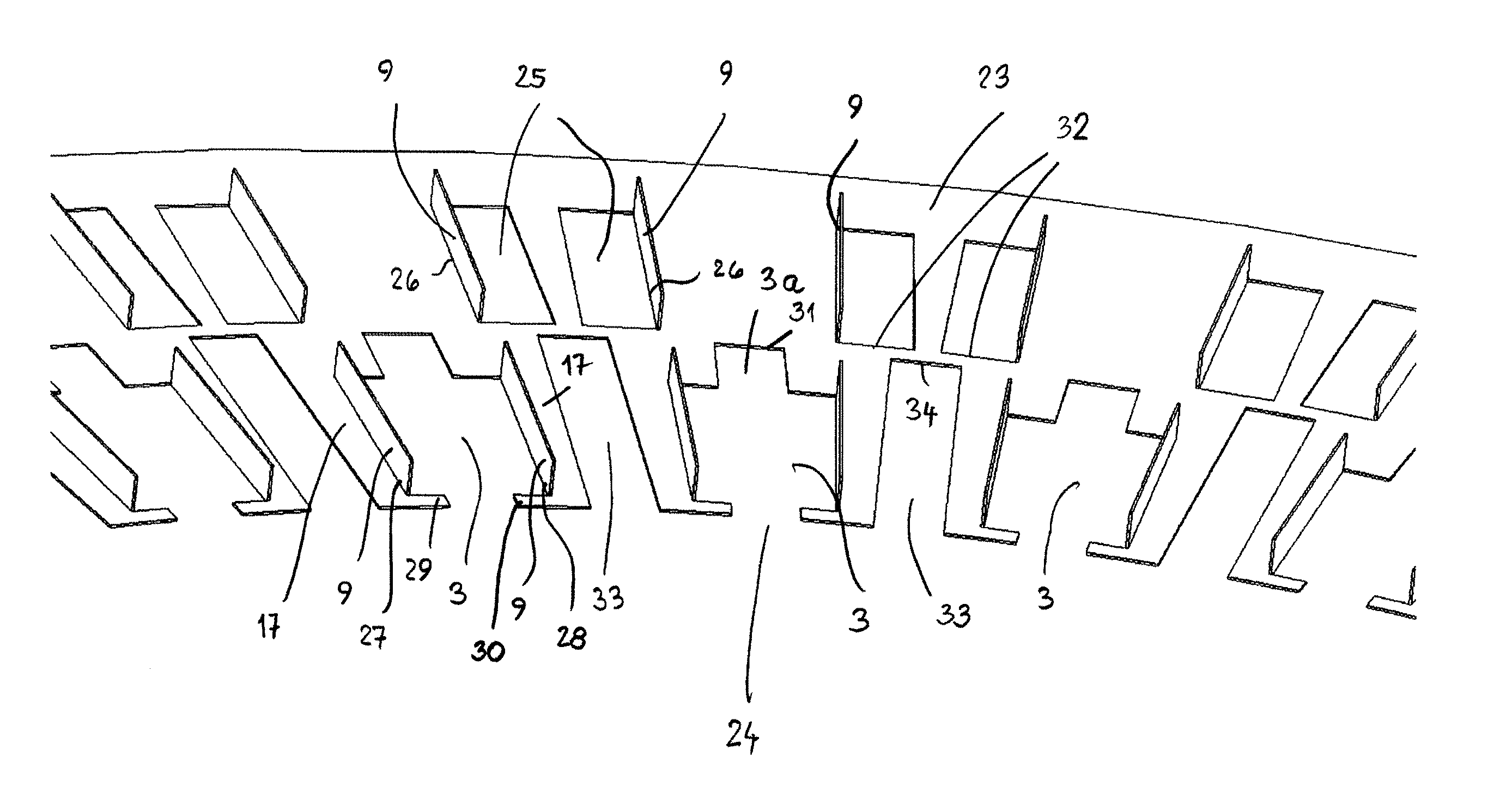

A stator/rotor lamination sheet for a stator/rotor lamination of generators and electric motors has spacers, wherein the spacers are monolithic lamination sections that are bent out of a lamination sheet plane about a bending edge and create corresponding recesses in the lamination sheet, wherein the spacers transversely protrude from the lamination sheet plane. A method for manufacturing the stator/rotor lamination sheet provides that a stator/rotor lamination sheet is punched out of a metal sheet; lamination sections are partially punched out out of the metal sheet; and the partially punched-out lamination sections are bent out of a lamination sheet plane of the lamination sheet to form spacers of the lamination sheet.
