Control system for electrical cord reel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 31, 2017
Grant Date -
Jul 23, 2015
app pub date -
Mar 30, 2015
filing date -
Aug 5, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

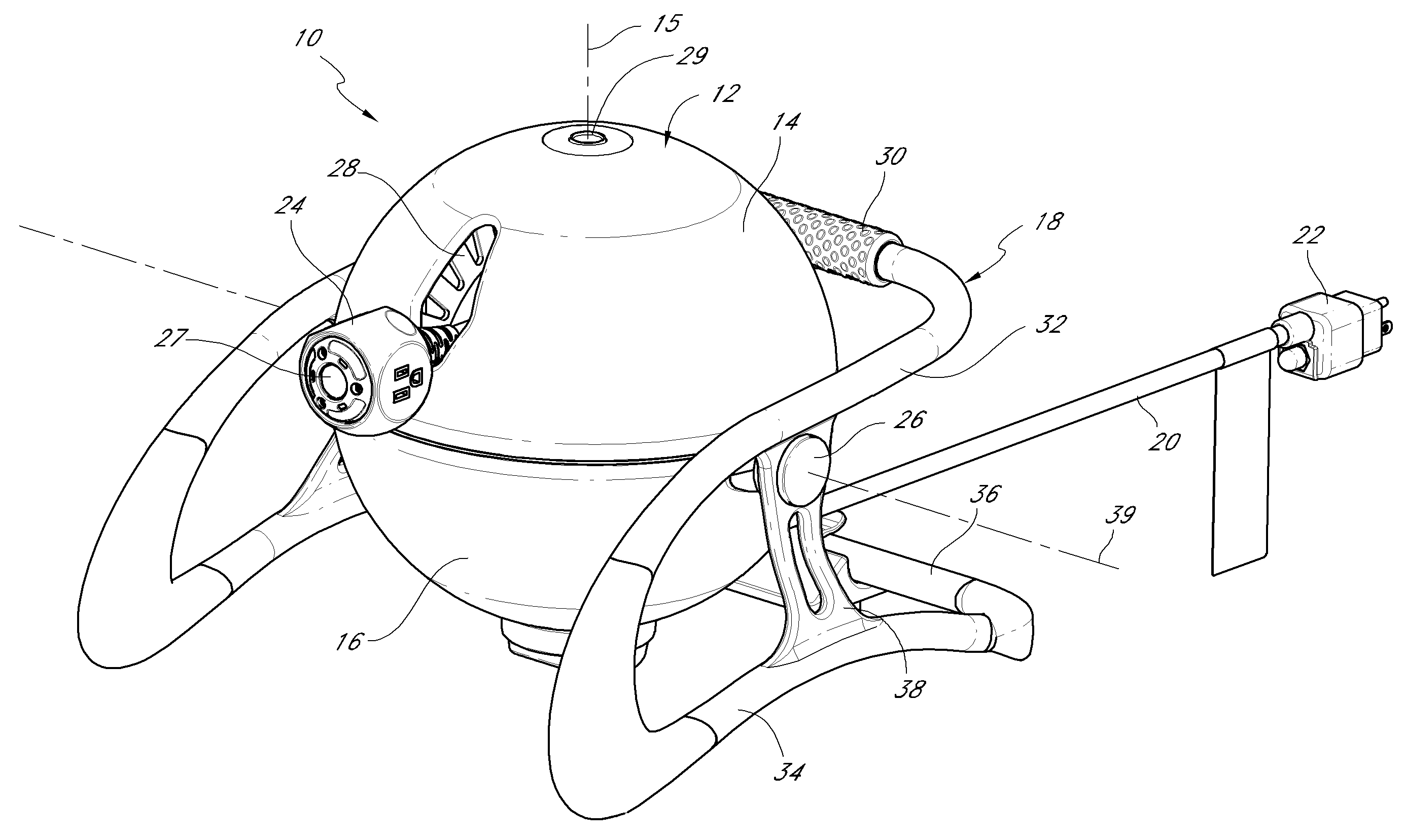

In an electrical cord reel, a rotatable member can rotate about a winding axis to spool and unspool a linear material. An input power connector can couple to an electrical power source. An output power connector on the rotatable member can couple to an electrical cord at least partially wound about the rotatable member. A switch is adjustable to allow or prevent electrical current flow from the input power connector to the output power connector. In an aspect, the electrical cord reel includes an electric cord comprising a first power wire, a second power wire, and a signal wire. A method of controlling the electric cord spool system includes energizing the first power wire and the signal wire. The method further includes determining a continuity of the signal wire. The method further includes de-energizing the first power wire when determining discontinuity of the signal wire.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B65H Class
- 28.75 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 30, 2029 |
