Lock device and valve device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 31, 2017
Grant Date -
Mar 31, 2016
app pub date -
Apr 11, 2014
filing date -
Apr 17, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance

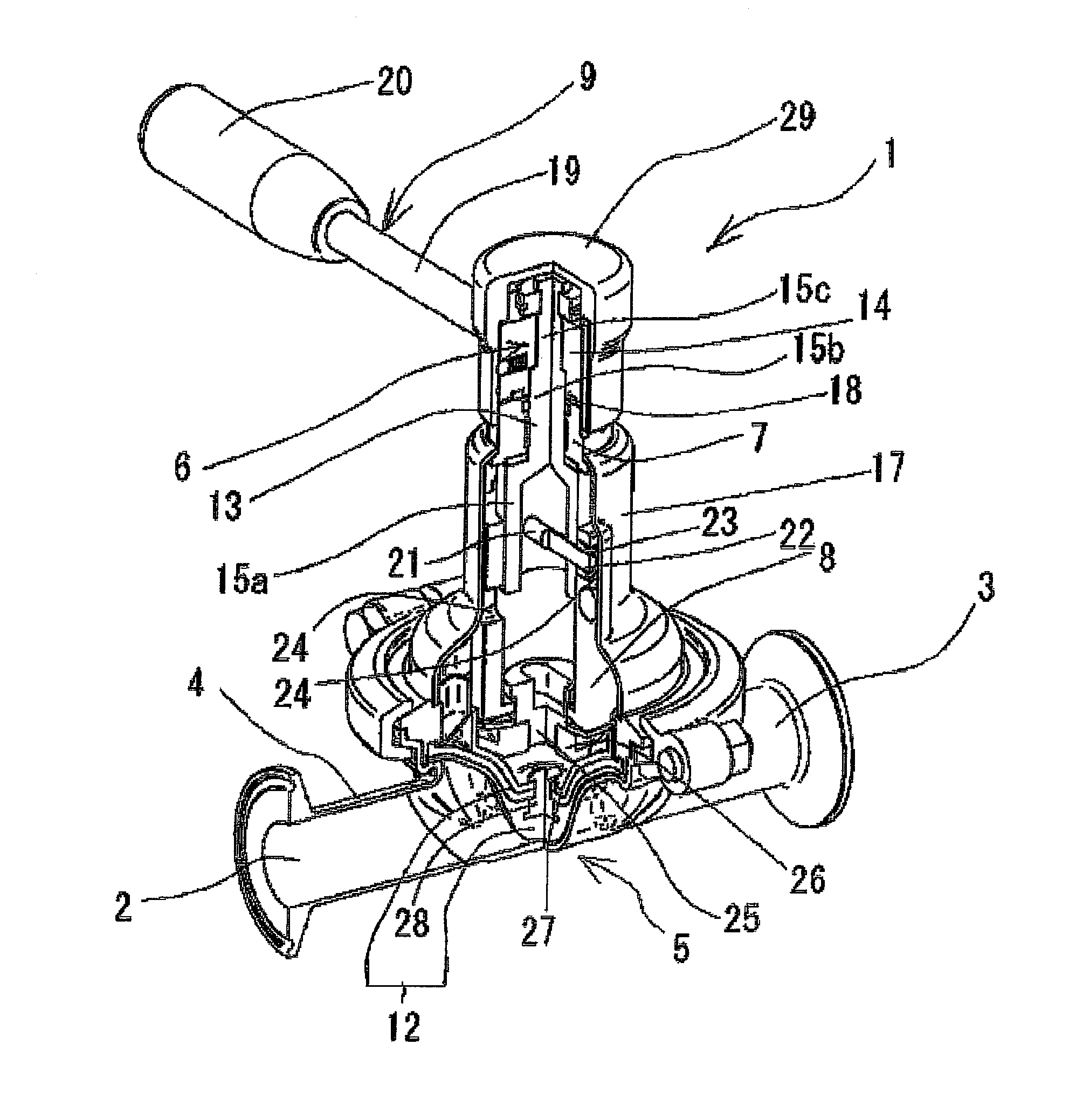

Abstract
Provided are a valve device free of changes in the position of the valve member caused by external force and fluid pressure, and a lock device for the valve device. The lock device has a tubular member fitted to the rotating part of the valve device so that the member is movable along the axis of the rotating part in both directions, wherein the member has a protrusion on its inner circumferential face along its axis, and the protrusion engages with or disengages from recesses in an outer circumferential face of a holder of the rotating part formed along its axis when the member moves in either direction; or the member has recesses in its inner circumferential face formed along its axis, and the recesses engage with or disengage from a protrusion on the outer circumferential face of the holder along its axis when the member moves in either direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F16K Class
- 1571 Applications Filed
- 1342 Patents Issued To-Date
- 85.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16K Class
- 31.02 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 30, 2029 |
