Flow control valve having a motion conversion device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 31, 2017
Grant Date -
Apr 6, 2017
app pub date -
Oct 2, 2015
filing date -
Oct 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

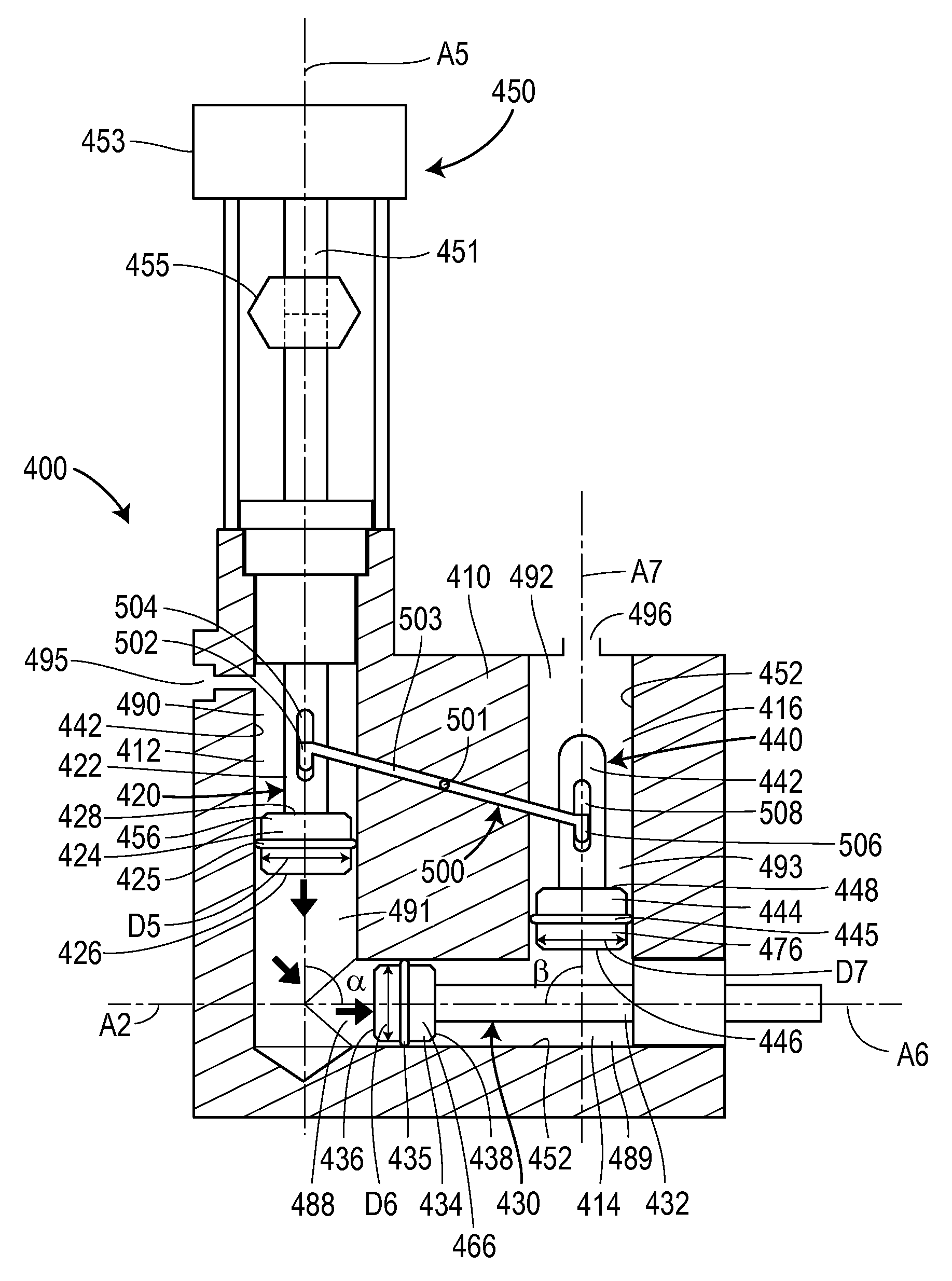

A motion conversion device is disclosed for converting motion in one direction into motion in another direction. The motion conversion device may include a single-acting cylinder hydraulically or pneumatically coupled to a double-acting cylinder such that movement of the single-acting cylinder along an axis causes movement of the double-acting cylinder along a non-parallel axis. The single-acting cylinder may be mechanically coupled to another single-acting cylinder such that movement of one of the single-acting cylinders in a direction causes movement of the other one of the single-acting cylinders in an opposite direction. In this way, the single-acting cylinders may cooperate to provide reciprocal motion of the double-acting cylinder. Also disclosed is a valve incorporating a motion conversion device for the purpose of moving a closure member between an open position and a closed position. Furthermore, a method for operating a valve closure member with a motion conversion device is disclosed.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2015 Application Filing Year
- F16K Class
- 1801 Applications Filed
- 1435 Patents Issued To-Date
- 79.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 30, 2029 |
