Cleaning agent for semiconductor substrates and method for processing semiconductor substrate surface
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 31, 2017
Issued Date -
N/A
app pub date -
Apr 26, 2013
filing date -
Apr 27, 2012
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

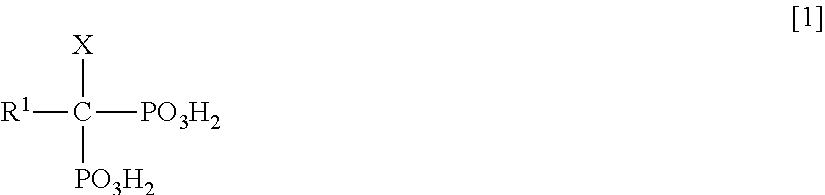

A cleaning agent is provided for a semiconductor substrate superior in corrosion resistance of a tungsten wiring or a tungsten alloy wiring, and superior in removal property of polishing fines (particle) such as silica or alumina, remaining at surface of the semiconductor substrate, in particular, at surface of a silicon oxide film such as a TEOS film, after a chemical mechanical polishing process; and a method for processing a semiconductor substrate surface. A cleaning agent for a semiconductor substrate is to be used in a post process of a chemical mechanical polishing process of the semiconductor substrate having a tungsten wiring or a tungsten alloy wiring, and a silicon oxide film, comprising (A) a phosphonic acid-based chelating agent, (B) a primary or secondary monoamine having at least one alkyl group or hydroxyalkyl group in a molecule and (C) water, wherein a pH is over 6 and below 7.
