Device for dispensing plastic fasteners
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 31, 2017
Issued Date -
N/A
app pub date -
Jan 9, 2014
filing date -
Nov 6, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

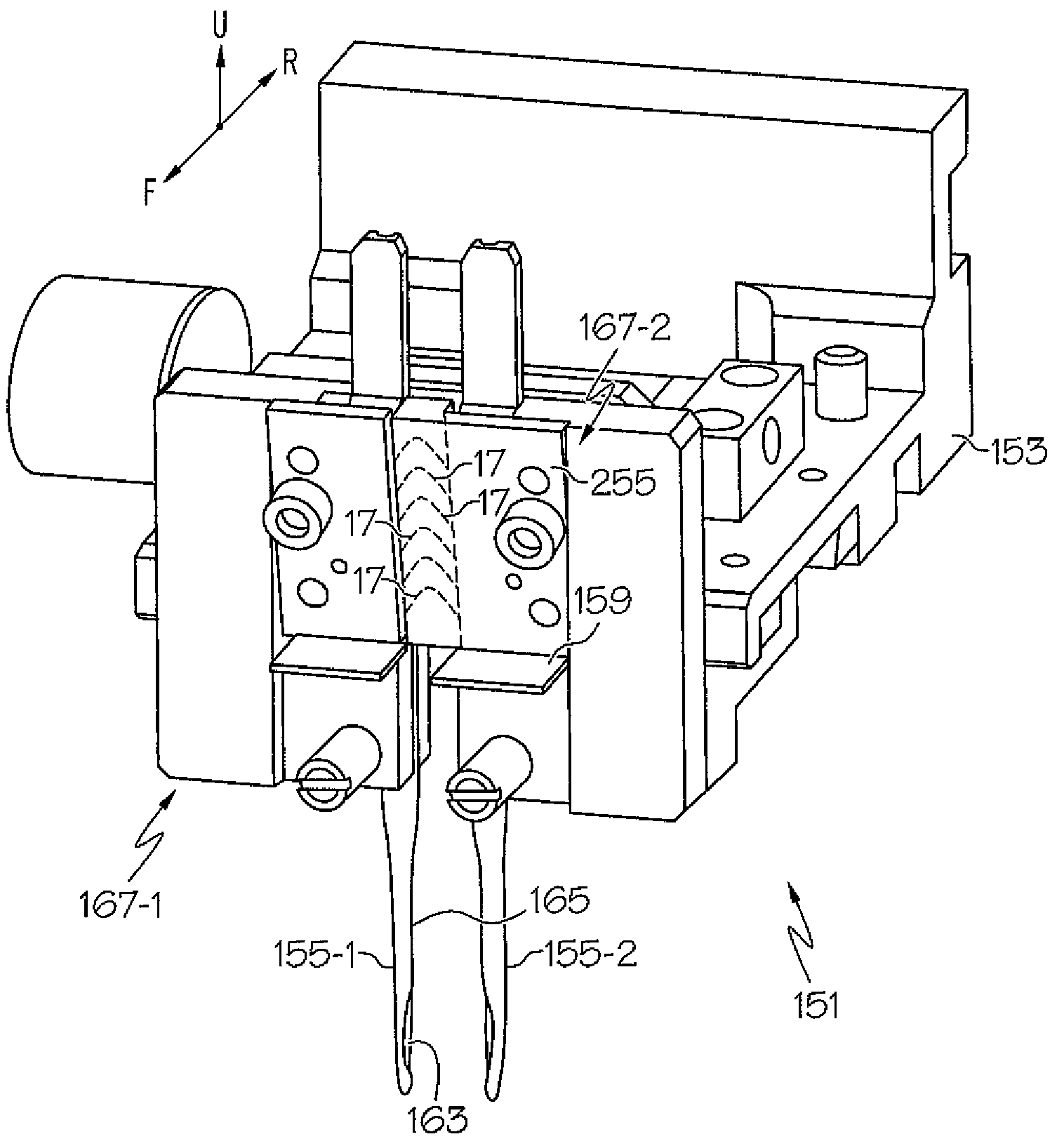

A device for dispensing an individual plastic fastener from a supply of fastener stock includes a motor-driven head assembly adapted to receive the supply of fastener stock, sever an individual fastener from the supply and in turn eject the severed fastener. The head assembly includes a pair of needle block assemblies that retain corresponding hollow needles, each needle block assembly being shaped to define a feed channel that transitions a side rail for the fastener stock into axial alignment behind its corresponding needle. In addition, at least one needle block assembly includes a rearward shelf and a forward bowing plate. In use, the lowermost cross-links of the fastener stock fittingly align between the shelf and the bowing plate. In this manner, the lowermost cross-links are limited to distort uniformly upward within the single plane defined by the pair of feed channels, thereby optimizing feed reliability of the device.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2014 Application Filing Year
- G09F Class
- 654 Applications Filed
- 573 Patents Issued To-Date
- 87.62 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G09F Class
- 29.79 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 30, 2029 |
