Control device for a bicycle derailleur
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 31, 2017
Issued Date -
N/A
app pub date -
Feb 19, 2016
filing date -
Jun 27, 2005
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

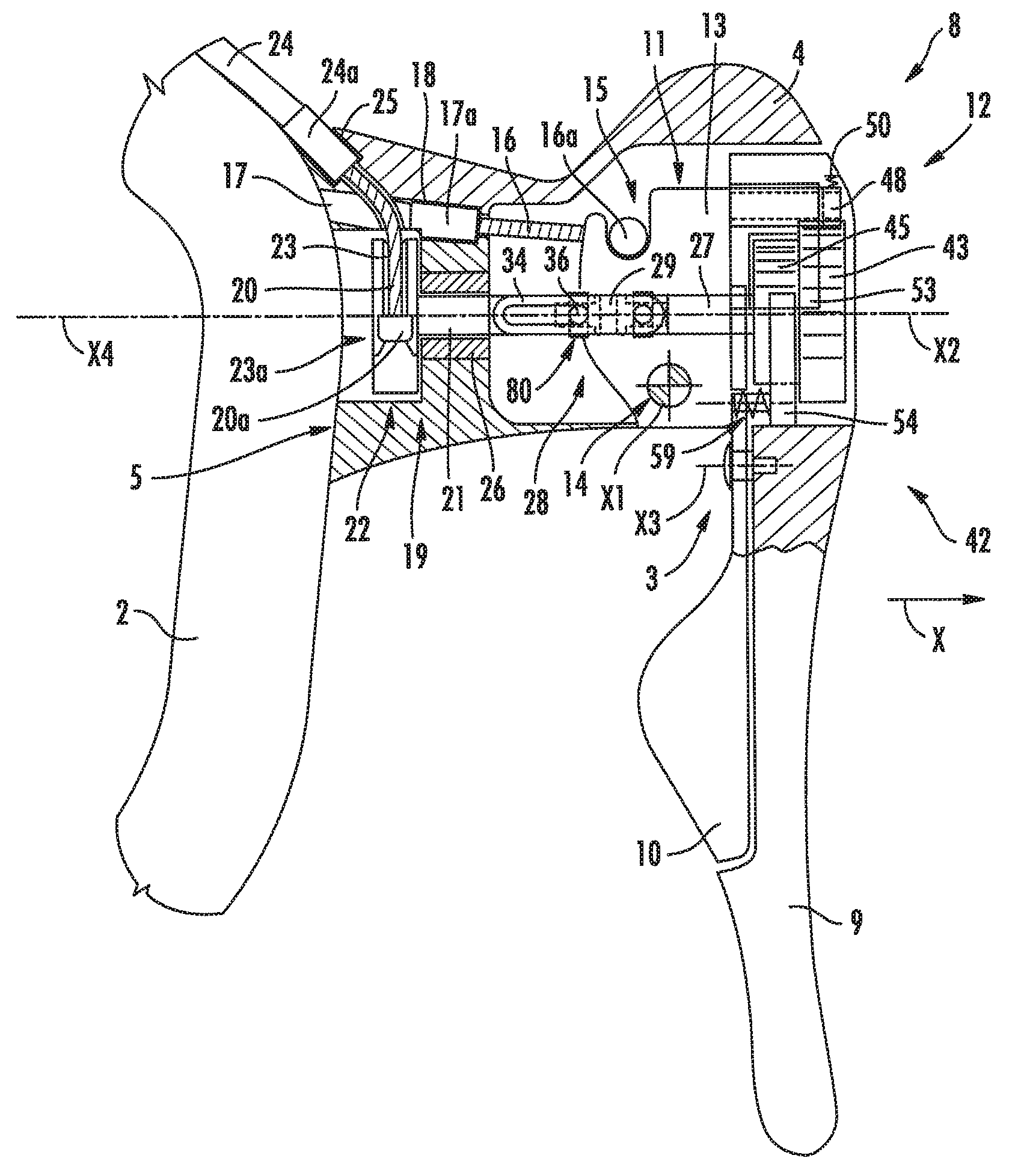

The integrated control device for driving the control cable of the derailleur and the brake cable of a bicycle is provided. The device having a support body connectable to the handlebar and that can be gripped by the cyclist's hand, a cable-winding bush about which the control cable of the derailleur is wound/unwound and a first lever rotatable with respect to the support body about a first axis for actuating the brake cable and rotatable about a second axis to drive the cable-winding bush into rotation in a first direction of rotation. An indexing mechanism connected to the first lever cooperates with the cable-winding bush to define predetermined angular positions therefor. The support body having a recess for the passage of the control cable of the derailleur.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
CAMPAGNOLO S R L | 36100 VICENZA (VI) |
International Classification(s)

- 2016 Application Filing Year
- B62L Class
- 123 Applications Filed
- 97 Patents Issued To-Date
- 78.87 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Dal, Prà Giuseppe | Vicenza, IT | 13 | 61 |
# of filed Patents : 13 Total Citations : 61 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 1 Citation Count
- B62L Class
- 29.41 % this patent is cited more than
- 8 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 30, 2025 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 30, 2029 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Apr 30, 2021 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 4TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1551); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 4 |
Oct 31, 2017 | I | Issuance | |
Oct 11, 2017 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Jun 23, 2016 | P | Published | |
Feb 19, 2016 | F | Filing | |
Jun 27, 2005 | PD | Priority Date |
