No-freewheeling arc lightning protection gap protecting device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Grant Date -
Jul 9, 2015
app pub date -
Dec 17, 2012
filing date -
Sep 27, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

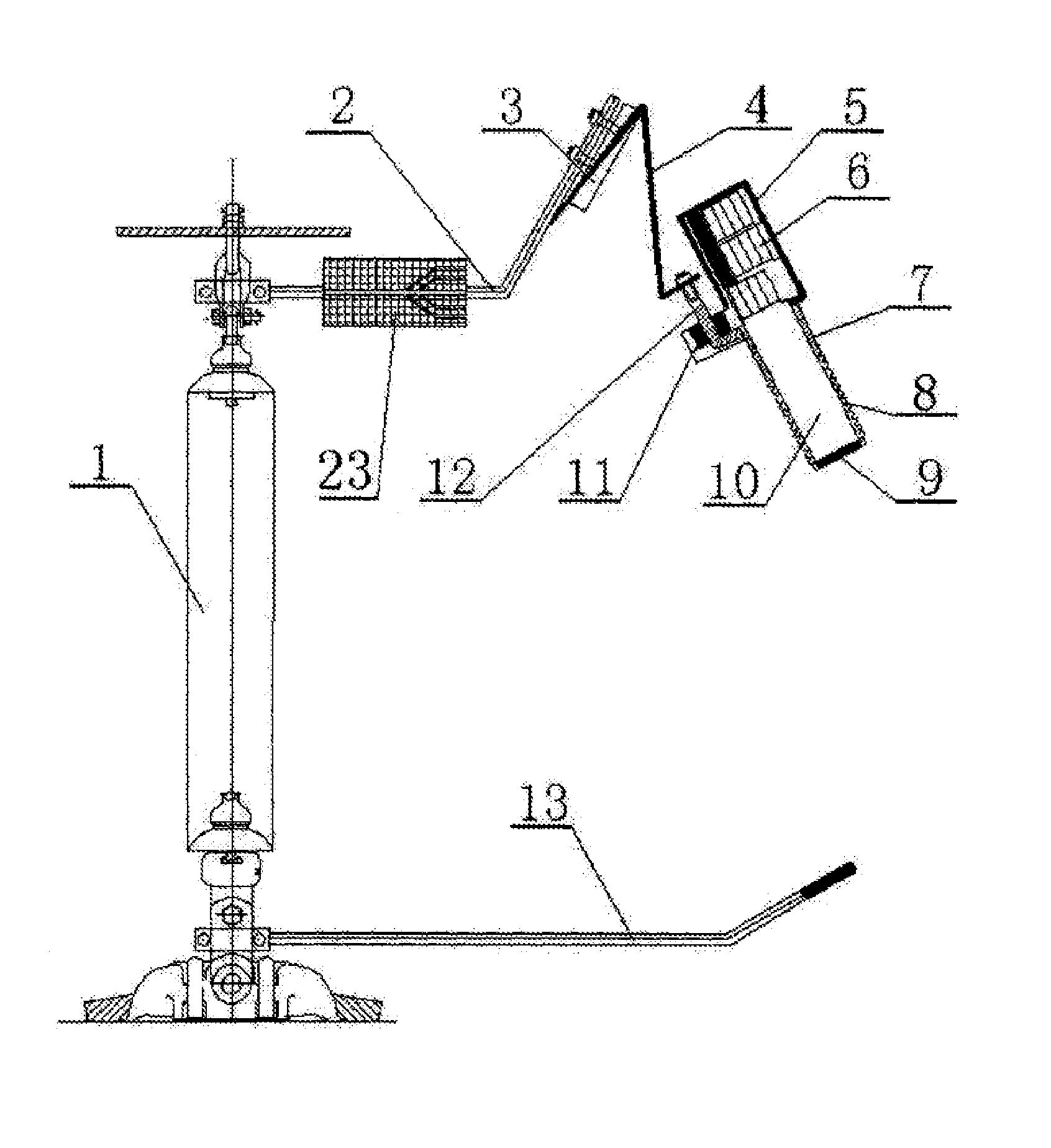

Disclosed is a no-freewheeling arc lightning protection gap protecting device, comprising a grounding-side arc extinguishing device, and a grounding-side fitting and a conducting wire-side fitting installed at two ends of a circuit insulator string via fixing devices. The grounding-side arc extinguishing device comprises a thunder and lightning pulse acquisition device, an insulating sealing shell, a gas generating device and an arc extinguishing chamber. The other end of the grounding-side fitting is equipped with a connecting fine pipe. The grounding-side arc extinguishing device also comprises a tubular earth electrode made of a nonmetal conductive material and an L-shaped earth electrode. One end of the L-shaped earth electrode is inlaid in and connected with the connecting fine pipe on the grounding-side fitting via a Z-shaped connecting fitting, and the other end of the L-shaped earth electrode penetrates the thunder and lightning pulse acquisition device and is connected with the tubular earth electrode. One end of the nonmetal conductive material tubular earth electrode is internally inlaid in the arc extinguishing chamber, and the other end is connected with the insulating sealing shell. The device improves the electric power system stability and prolongs the service life of the electric power equipment such as transformer and breaker, and has low production and maintenance cost.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- H01T Class
- 175 Applications Filed
- 162 Patents Issued To-Date
- 92.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01T Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
