Electrostatic chuck and method of manufacturing electrostatic chuck
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Issued Date -
N/A
app pub date -
Mar 22, 2013
filing date -
May 7, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

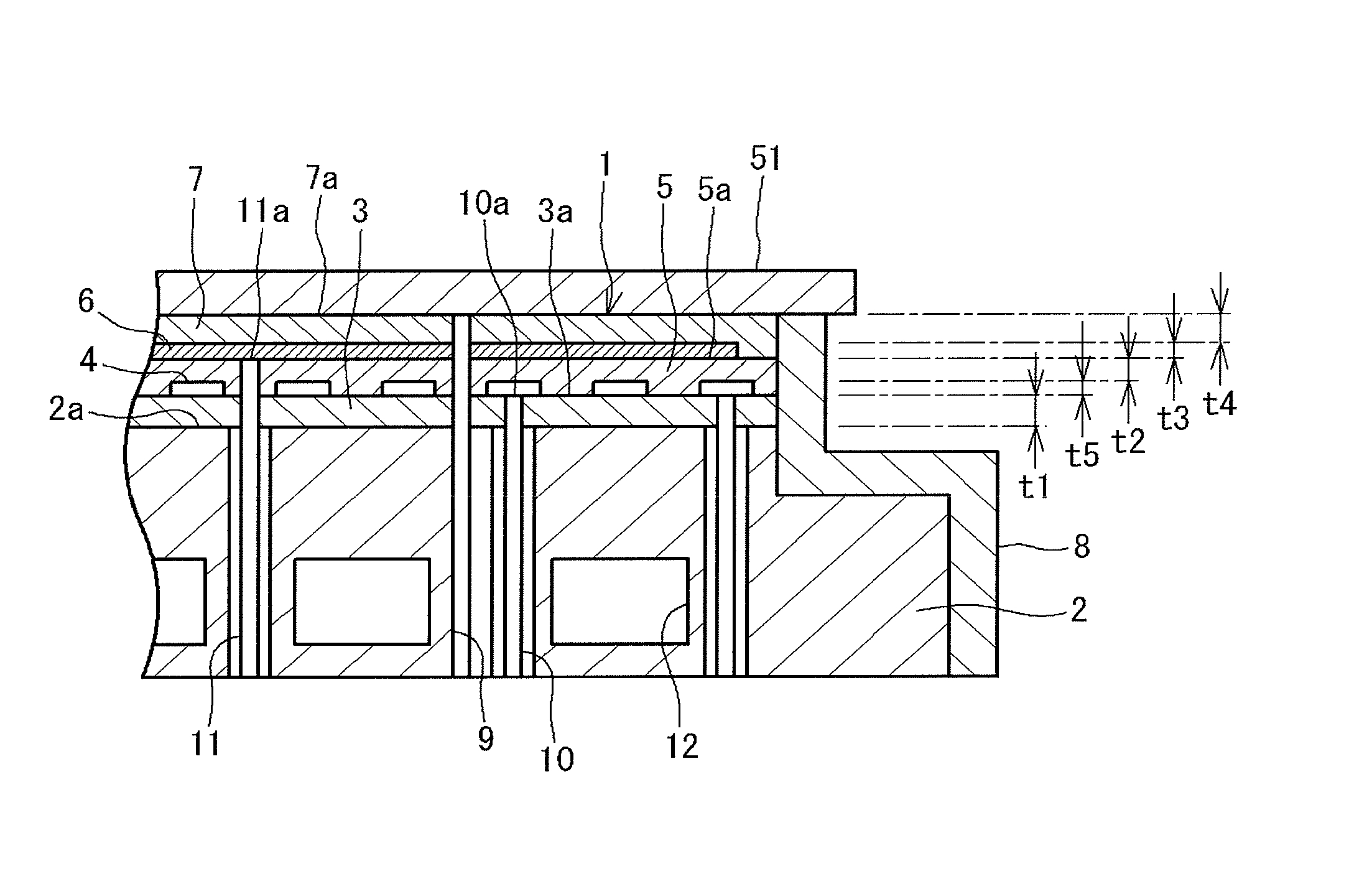

An electrostatic chuck and a manufacturing method are disclosed in which drawbacks of using an adhesive are not existent and a freedom degree of design is high. The electrostatic chuck includes a substrate part constituting a main chuck body, a first insulating layer of a spray coating formed to the surface of the substrate part, a heater part of an electric conductor formed by applying a conductive paste to the surface of the first insulating layer, a second insulating layer of a spray coating formed to the surface of the first insulating layer so as to cover the heater part, an electrode part formed by thermal spraying to the surface of the second insulating layer and a dielectric layer of a spray coating formed to the surface of the second layer so as to cover the electrode part and lowers a volume resistivity without using an adhesive.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- C23C Class
- 27.20 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
