Ion source, quadrupole mass spectrometer and residual gas analyzing method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Issued Date -
N/A
app pub date -
Dec 6, 2016
filing date -
Dec 11, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

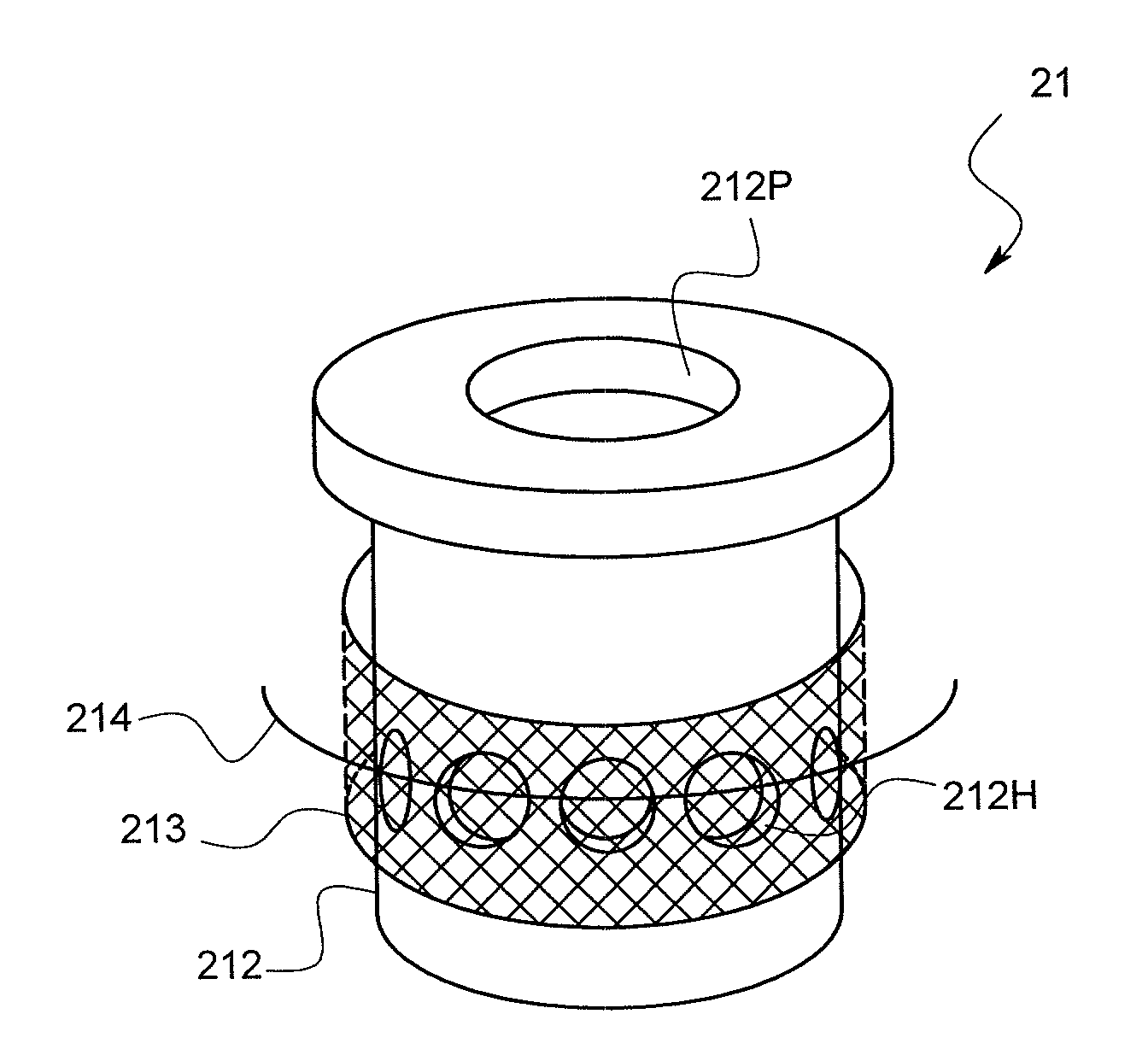

In order to attain a main objective of the present invention to provide an ion source capable of efficiently extracting ions, the ion source is configured to include: a conductive tubular body having an ion emitting aperture in a tip surface thereof and a penetration portion in a side wall thereof allowing thermo-electrons to pass through from an outside toward an inside; a mesh surrounding an outer periphery of the penetration portion; and a thermionic emission filament surrounding an outer periphery of the mesh, such that the thermo-electrons emitted from the thermionic emission filament pass through the mesh and reach the inside of the conductive tubular body through the penetration portion.
