Online engineering tool system for specifying the various components of a holdown system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Issued Date -
N/A
app pub date -
Jun 9, 2014
filing date -
Sep 23, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

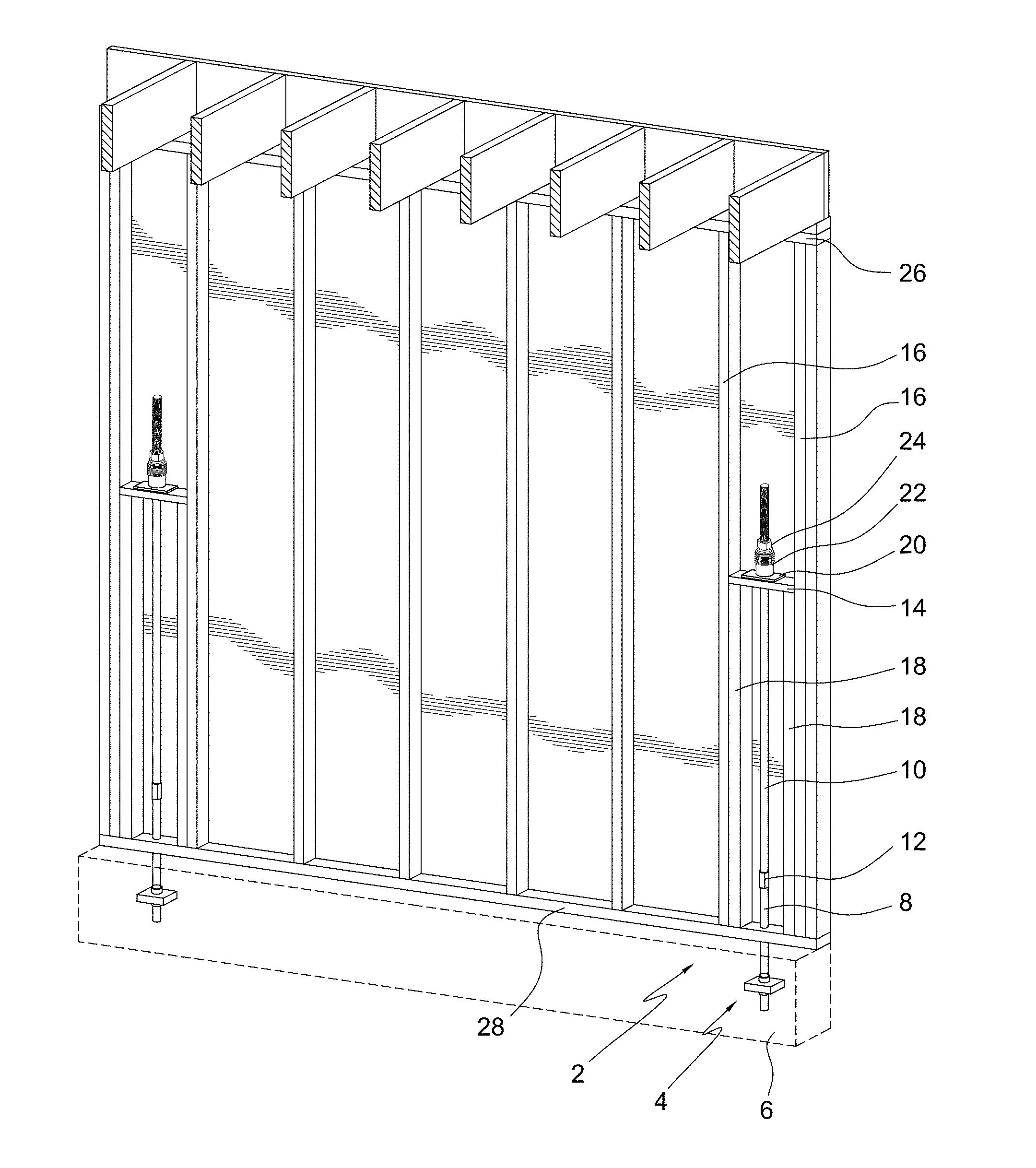

Computerized online engineering tool system for specifying the various components of a holdown system that assemble a run comprising a tie rod in a frame wall structure from the foundation up through the walls to the top floor, and bearing members and tension devices securing the tie rod to the wall. The system comprises a user's computer for connecting to a server which includes a database of drawing elements and hardware component parts; the server including a program operably associated with the database; and the program including the steps of i) allowing a user to login into the server; ii) allowing the user to select options for the run; iii) providing the user a data input and calculated data page for the load at each framing level and rod size sufficient to handle the load; and allowing the user to download a shop or installation drawing of the run generated using the drawing elements and hardware component parts from the database.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H04L Class
- 29135 Applications Filed
- 23333 Patents Issued To-Date
- 80.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
