Clamping device for a wire element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Issued Date -
N/A
app pub date -
May 18, 2015
filing date -
May 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

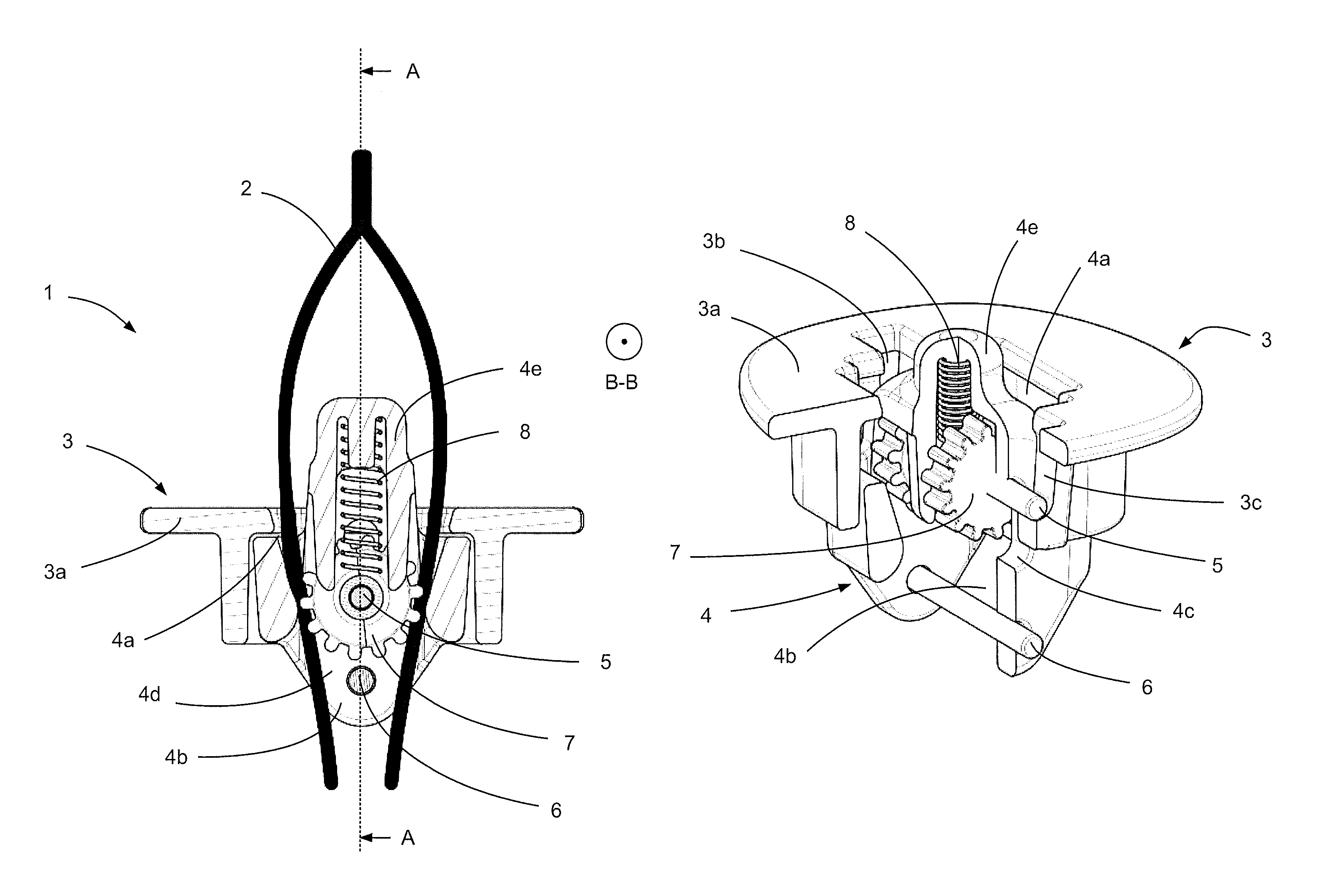

A clamping device has a body, at least one clamping member and an operating cover. The clamping member blocks at least one of the wire elements. The body has a cavity for passage a wire element and to house a clamping member, so that the clamping member is movable in the cavity along a first axis to a blocking position of the wire element. The operating cover is movable along the first axis relative to the body, and allows movement of the clamping member relative to the body along the first axis. The clamping device also has a drive device of the clamping member. The drive device enables free movement of the clamping member along the first axis with respect to the operating cover and with respect to the body, and enables movement of the clamping member away from the blocking position by actuation of the operating cover.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F16B Class
- 1569 Applications Filed
- 1178 Patents Issued To-Date
- 75.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- F16B Class
- 27.32 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
