Device for opening and closing an outwardly opening pivoting wing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Issued Date -
N/A
app pub date -
Mar 10, 2015
filing date -
Mar 20, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

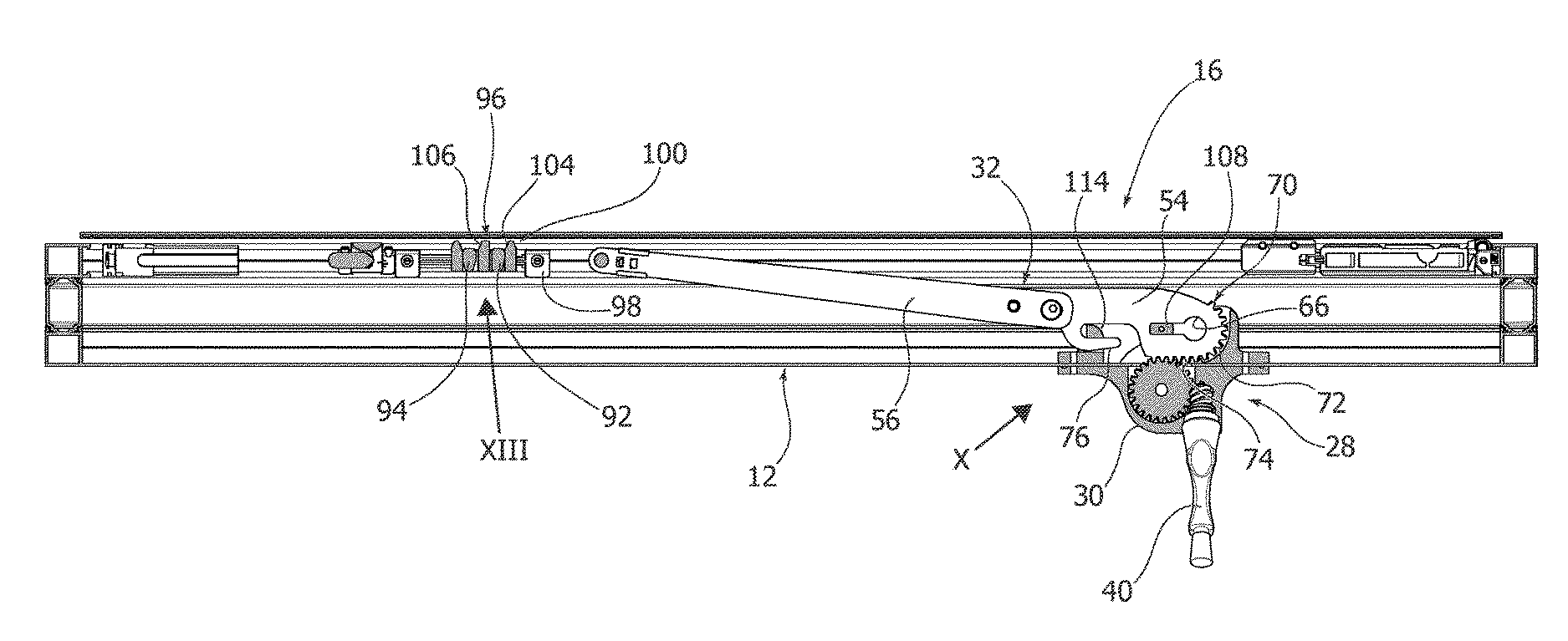

A device for opening and closing an outwardly opening pivoting wing, comprising: an actuating device including a support, a crank rotatable relative to the support and a control mechanism operated by the crank, and an arm having a toothed portion which cooperates with said control mechanism, wherein the control mechanism cooperates with the toothed portion of the arm for the translational motion of the arm along a rectilinear direction between a locked wing position and an unlocked wing position, and vice versa, a first and a second slider intended to engage a groove of the wing in a movable manner in a rectilinear direction, wherein the first slider is articulated at a distal end of the arm and wherein the second slider is connected to a locking device.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E06B Class
- 839 Applications Filed
- 647 Patents Issued To-Date
- 77.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- E06B Class
- 25.33 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
