Presence sensor for an openable body section of a motor vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Issued Date -
N/A
app pub date -
Dec 19, 2014
filing date -
Dec 19, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

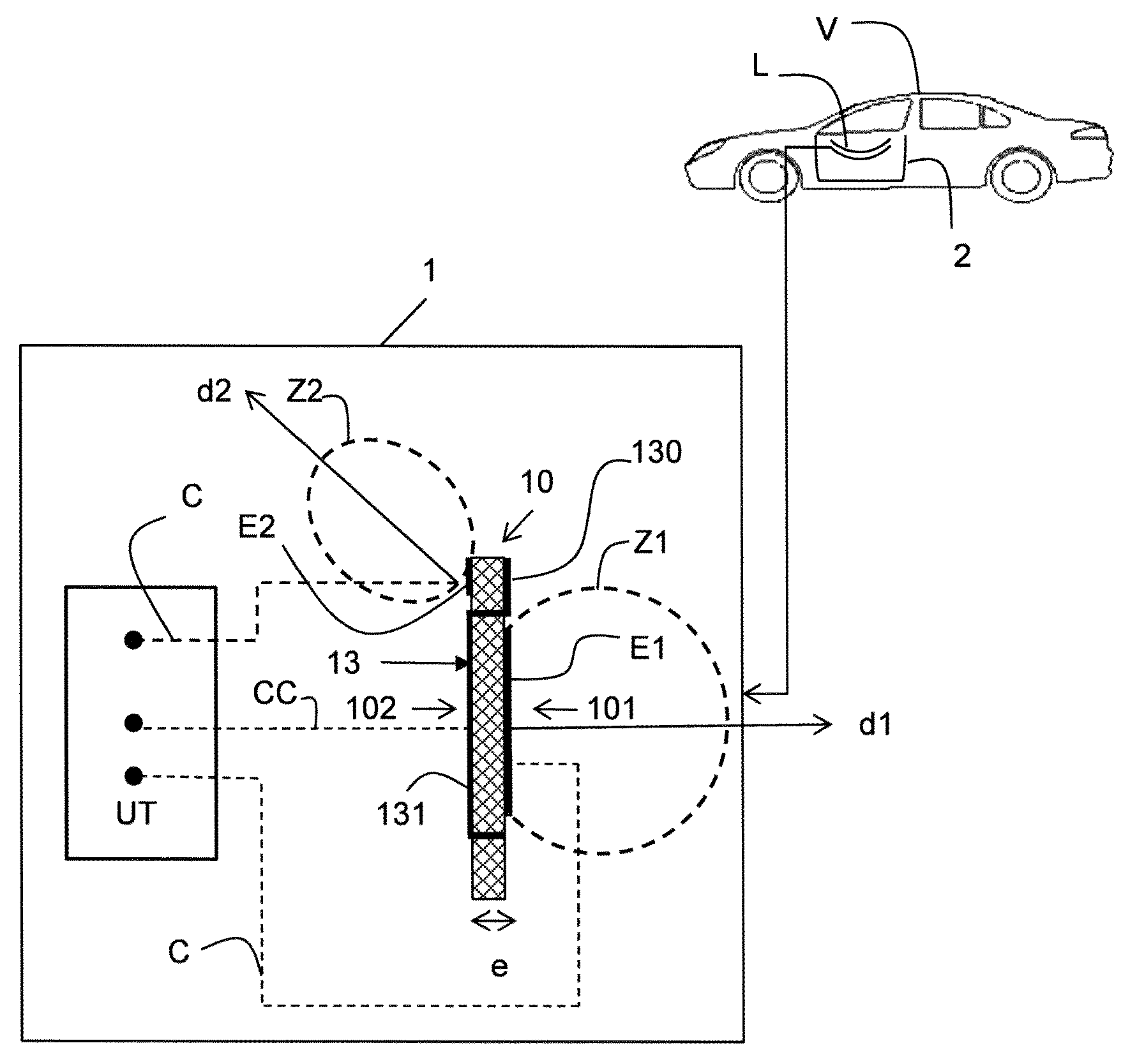

The present invention relates to a capacitive presence sensor (1) arranged in the gripping lever (L) of a handle of an openable body section (2) of a motor vehicle (V) characterised in that it comprises: a printed circuit (10) including a first surface (101) and a second surface (102), an electrode (E1) including a surface which extends along said first surface (101) and a second electrode (E2) including a surface which extends along said second surface (102); and also in that it comprises: a guard plane (13) made up of a conductive track arranged between the first electrode (E1) and the second electrode (E2), passing through the body (e) of said printed circuit (10) and comprising a first printed surface (130) extending along said first surface (101) of the printed circuit (10) and a second printed surface (131) extending along said second surface of the printed circuit (10).
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| FR | B1 | FR3015690 | Dec 19, 2013 |
| EP | A2 | EP3084962 | Dec 19, 2014 |
| WO | A2 | WO2015091950 | Dec 19, 2014 |
| CN | B | CN106464252 | Dec 19, 2014 |
| JP | B2 | JP6567527 | Dec 19, 2014 |
International Classification(s)
- 2014 Application Filing Year
- H03K Class
- 2384 Applications Filed
- 2057 Patents Issued To-Date
- 86.29 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
