Security element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Issued Date -
N/A
app pub date -
Oct 26, 2012
filing date -
Oct 27, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

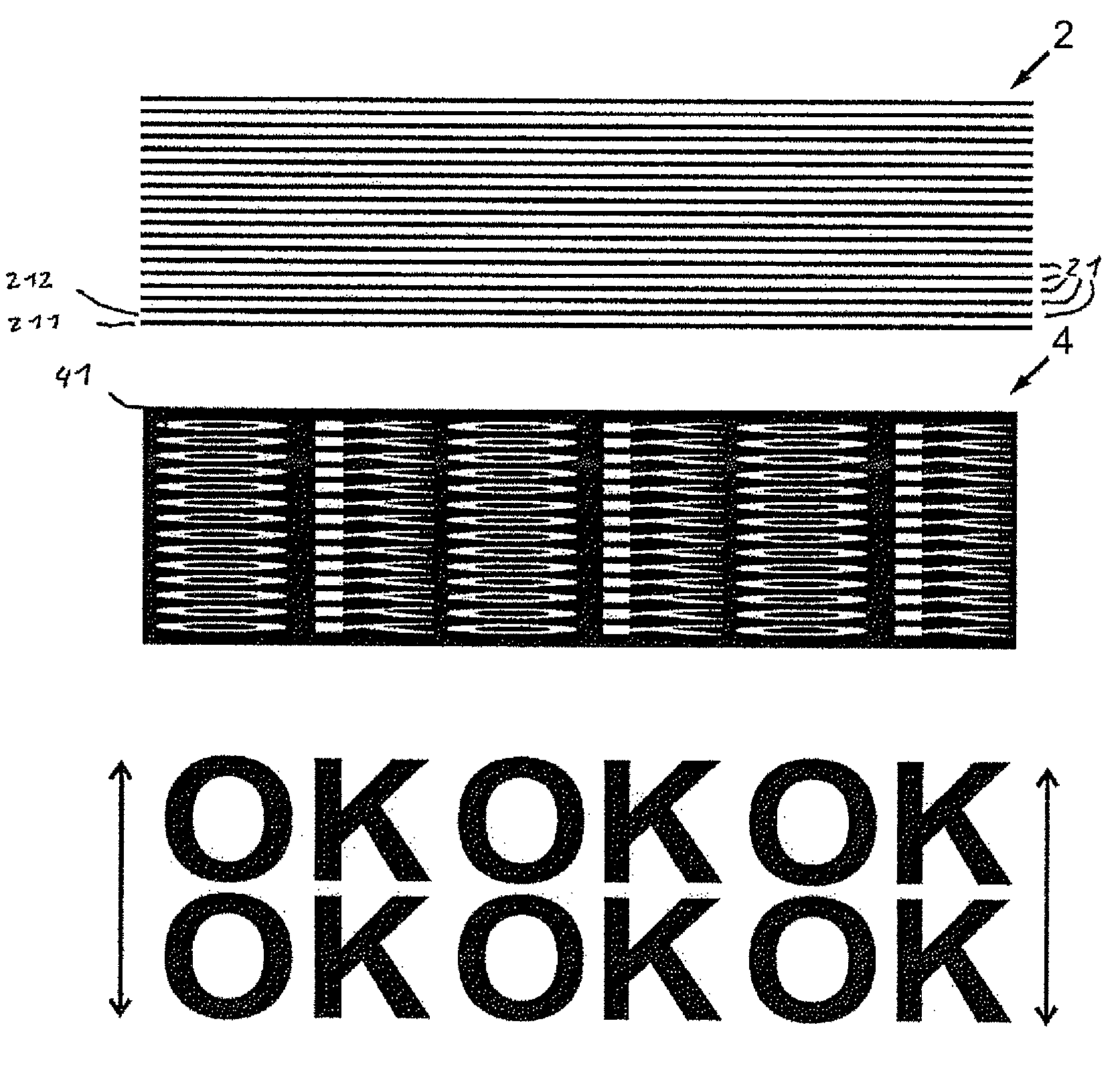

The invention relates to a security element (1). The security element (1) has a viewing side and a back side that is opposite the latter. The security element comprises at least one luminous layer (2) that can provide light (20), and at least one mask layer (4) that, when the security element (1) is viewed from the viewing side, is arranged in front of the at least one luminous layer (2). The at least one mask layer (4) has at least one opaque region (5) and at least two transparent openings (41, 42). The at least two transparent openings (41, 42) has a substantially higher transmittance than the at least one opaque region (5) in respect of light (20) provided by the at least one luminous layer (2), preferably a transmittance that is at least 20% higher, particularly preferably a transmittance that is at least 50% higher.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B42D Class
- 205 Applications Filed
- 165 Patents Issued To-Date
- 80.49 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B42D Class
- 23.11 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
