Method and system for manufacturing intaglio printing plates for the production of security papers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Grant Date -
Mar 24, 2011
app pub date -
May 5, 2009
filing date -
May 16, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

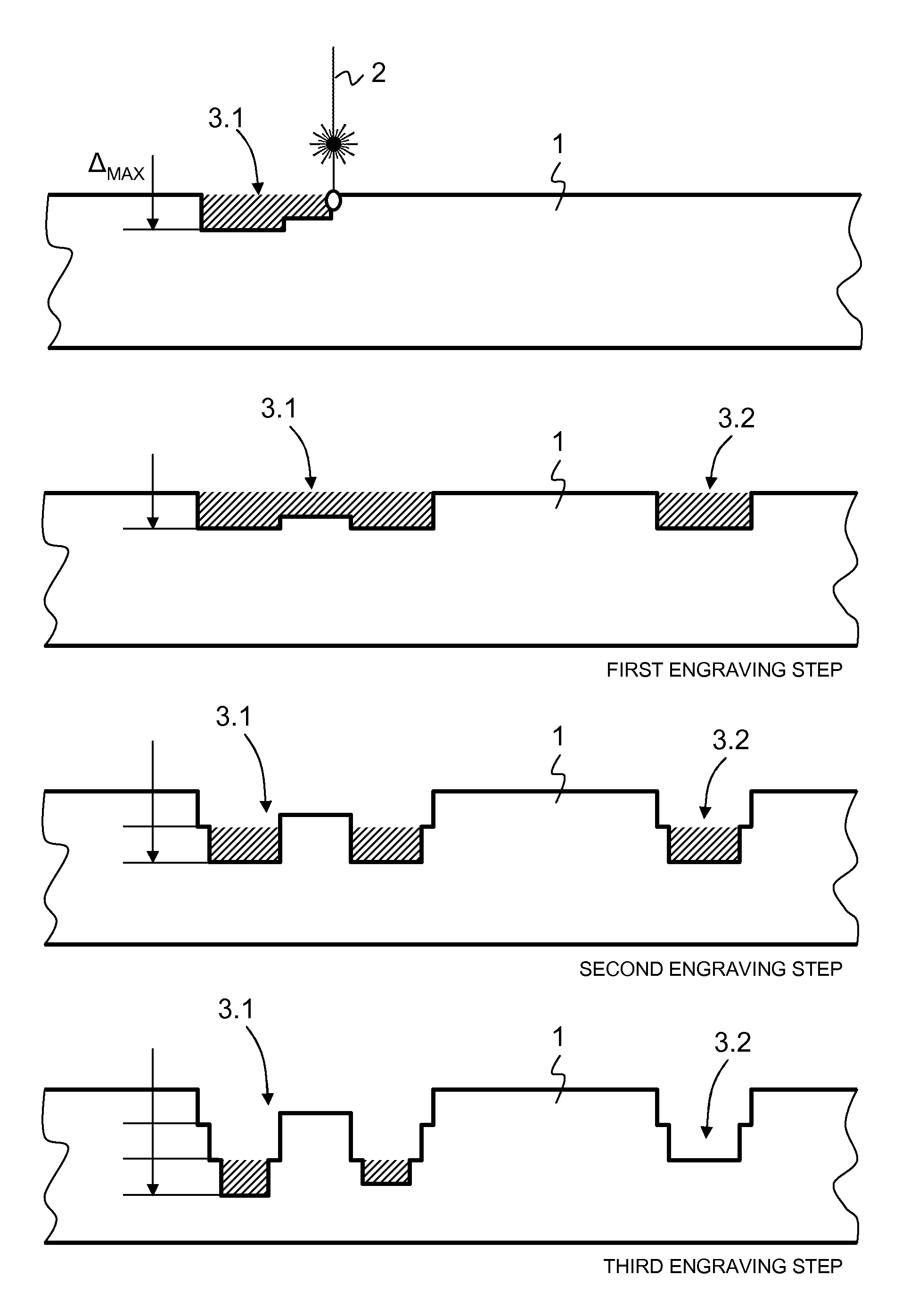

There is described a method for manufacturing intaglio printing plates for the production of security papers, wherein a laser beam (2) is used to engrave intaglio printing patterns (3, 3.1, 3.2, 3.3) directly into the surface of a laser-engravable, especially metallic, printing plate medium (1), wherein laser engraving of the printing plate medium (1) is carried out layer by layer in several individual engraving steps performed one after the other in register so that the intaglio printing patterns (3, 3.1, 3.2, 3.3) are gradually engraved into the surface of the printing plate medium (1) up to desired engraving depths, the surface of the engraved printing plate medium (1) being cleaned from residues of the laser engraving process following and between each individual engraving step.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- B41M Class
- 241 Applications Filed
- 163 Patents Issued To-Date
- 67.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B41M Class
- 32.52 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
