Sheet feed mechanism for printer having wide print zone
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Grant Date -
Mar 2, 2017
app pub date -
Jul 26, 2016
filing date -
Sep 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

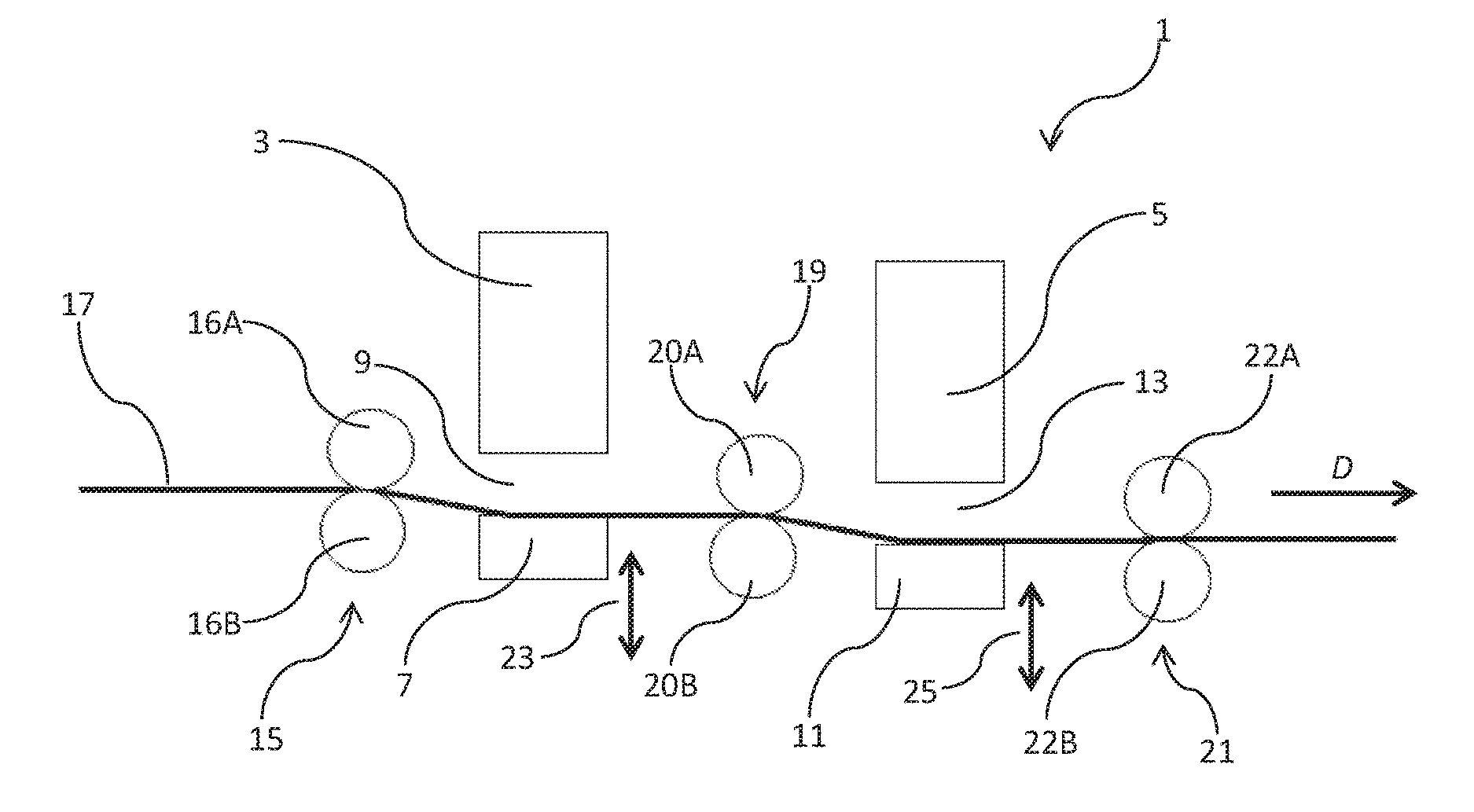

A printer includes: a first fixed printhead having a respective first print zone; a first platen positioned in the first print zone; a second fixed printhead positioned downstream of the first printhead having a respective second print zone; a second platen positioned in the second print zone; an input roller assembly configured for feeding media sheets along a downward trajectory towards the first platen; an intermediary roller assembly positioned between the first and second platens and configured for receiving the media sheets from the first platen and feeding the media sheets along a downward trajectory towards the second platen; and an exit roller assembly for receiving the media sheets from the second platen. The second platen is positioned relatively lower than the first platen to facilitate a stepped media feed path with minimal distance between the first and second printheads.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B41J Class
- 21.31 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
