Spring reset device for piston mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Grant Date -
Jan 28, 2016
app pub date -
Nov 21, 2014
filing date -
Jul 24, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

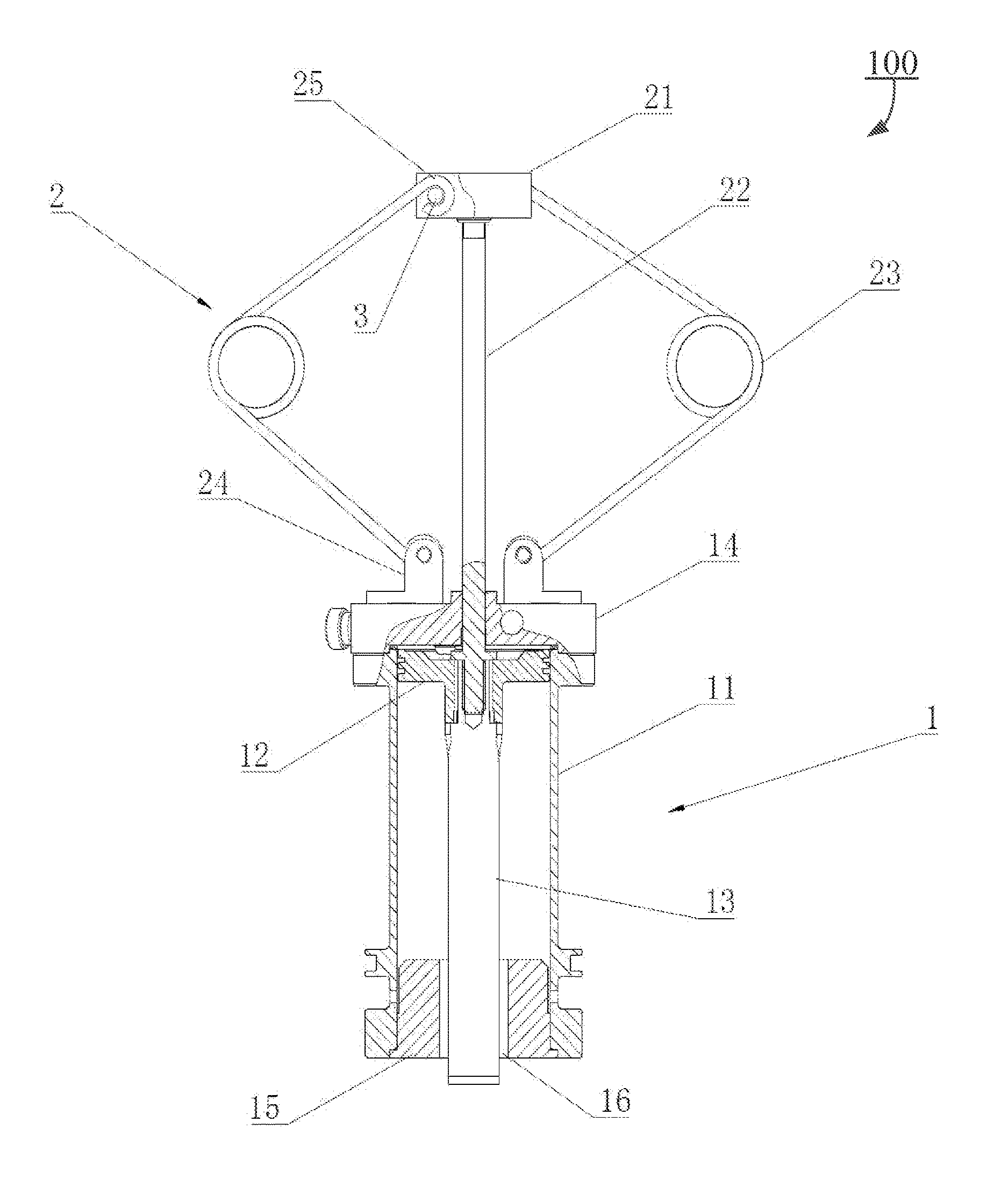

The present invention relates to a spring reset device for a piston mechanism. In certain embodiments, the spring reset device includes: a connecting plate, a pull rod, a plurality of reset springs, and a plurality of brackets. The connecting plate has a plurality of connecting pins. Each of the reset springs has a first end, and a second end. Each of the brackets has a connecting pin. The spring reset device is positioned on a top end of a piston body. The piston body includes a piston cylinder body, a piston plate, a piston rod, and a cylinder cover. A lower side of the piston plate is connected to the piston rod through a thread. First end of each of reset springs is rotatably connected to a hook portion of connecting plate. Second end of each of reset springs is rotatably connected a hook portion of a corresponding bracket.
