Method of fabricating a porous metal substrate structure for a solid oxide fuel cell
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Issued Date -
N/A
app pub date -
Jun 24, 2015
filing date -
Jul 23, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

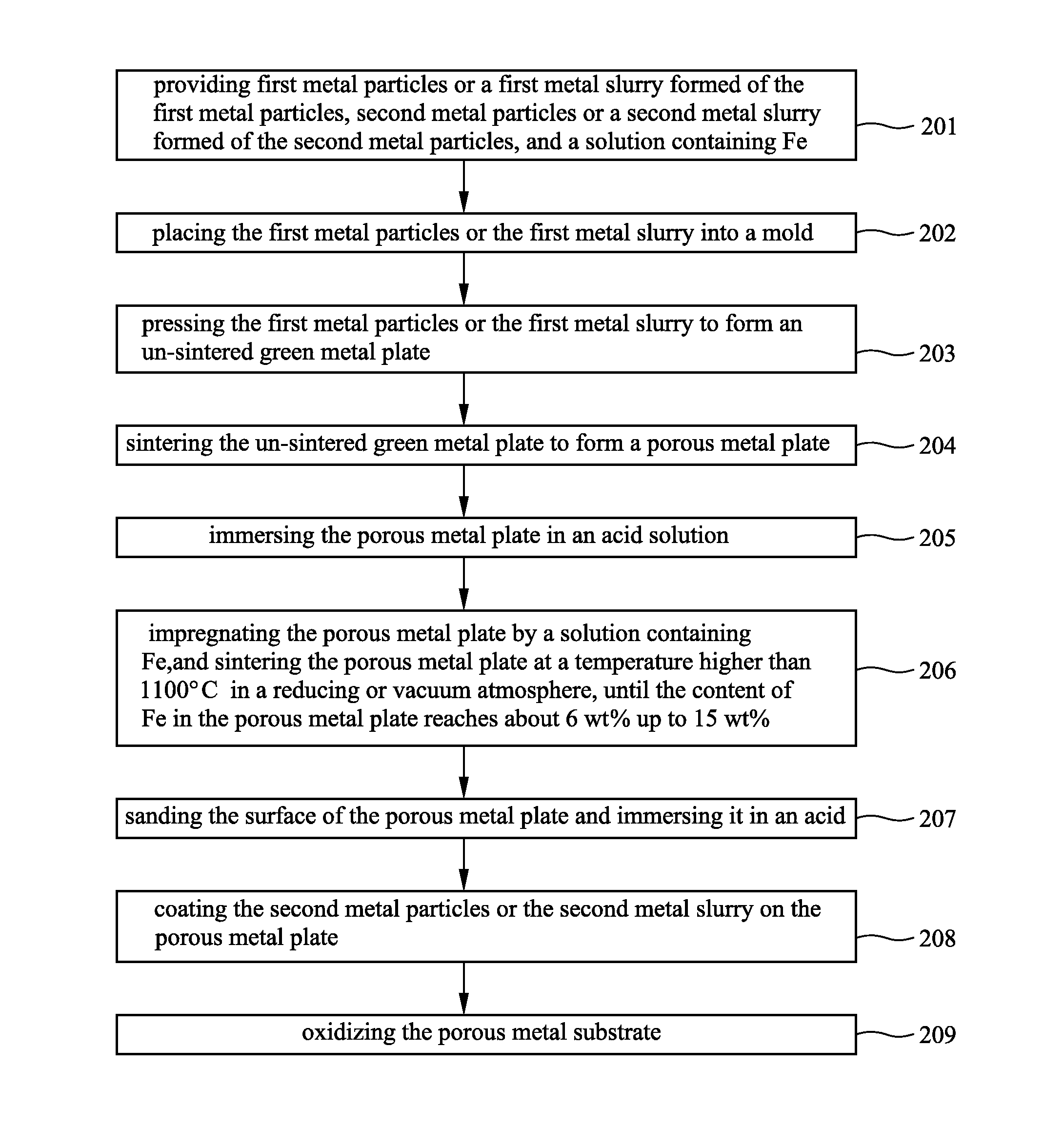

The disclosure provides a porous metal substrate structure with high gas permeability and redox stability for a SOFC and the fabrication process thereof, the porous metal substrate structure comprising: a porous metal plate composed of first metal particles; and a porous metal film composed of second metal particles and formed on the porous metal plate; wherein the porous metal plate has a thickness more than the porous metal film, and the first metal particle has a size more than the second metal particle. Further, a porous shell containing Fe is formed on the surface of each metal particle by impregnating a solution containing Fe in a high temperature sintering process of reducing or vacuum atmosphere, and the oxidation and reduction processes. The substrate uses the porous shells containing Fe particles to absorb the leakage oxygen.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- C04B Class
- 1366 Applications Filed
- 1059 Patents Issued To-Date
- 77.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C04B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
