Winding/unwinding device and method for winding/ unwinding a metal product in a rolling line
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Issued Date -
N/A
app pub date -
Dec 29, 2010
filing date -
Dec 30, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

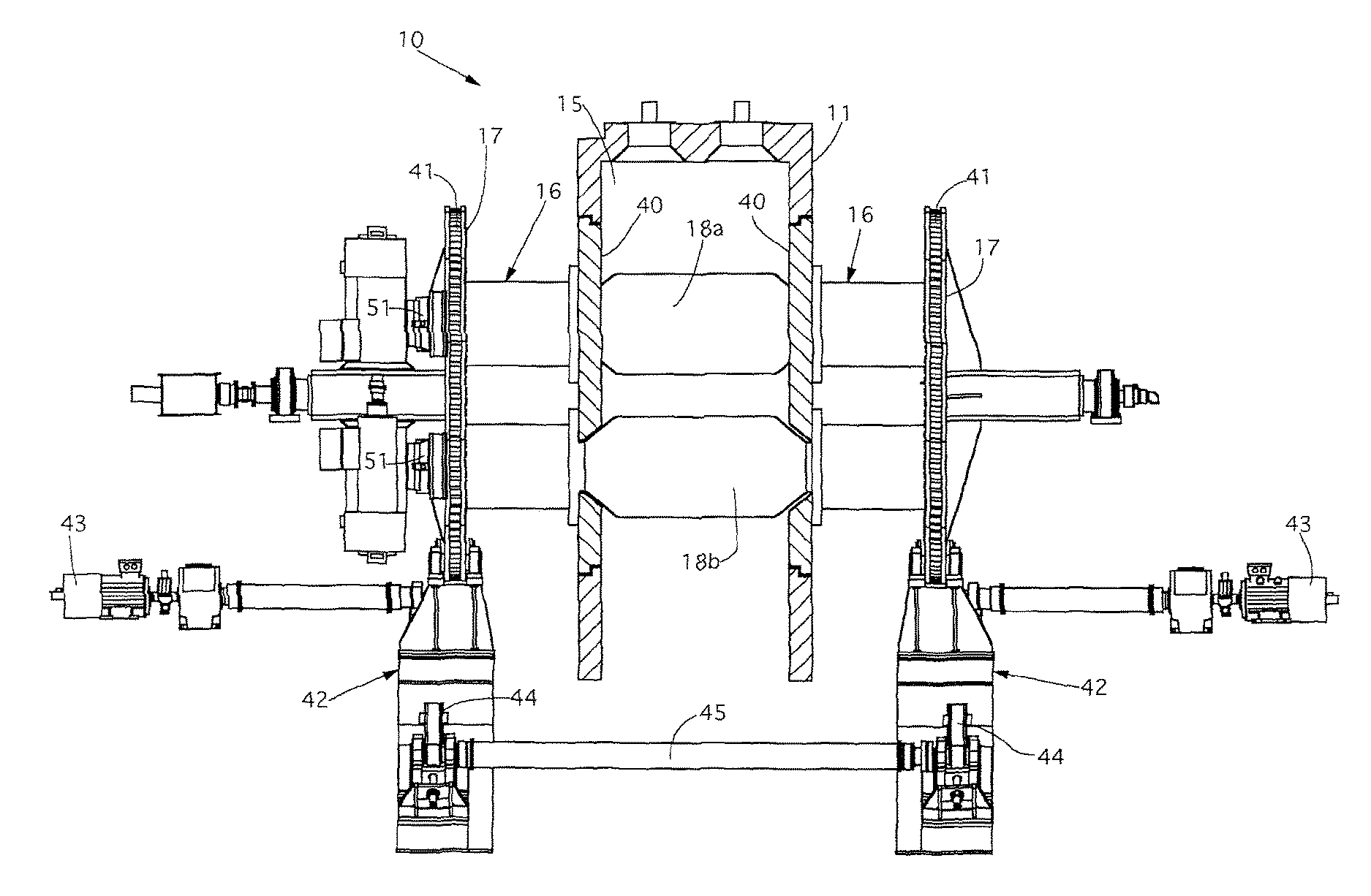

Device (10) and method for winding/unwinding rolled products (20). The device (10) is interposed between a rolling unit located upstream (102) and a rolling unit located downstream (105). The device (10) comprises a heating furnace (11) and a support structure (16) disposed outside the heating furnace (11). On the support structure (16), substantially in a diametrically opposite position, two winding/unwinding drums (18a, 18b) are assembled, positioned inside the furnace (11). The support structure (16) is selectively rotating to alternatively dispose a first of the two drums (18a or 18b) in its winding position or in its unwinding position of a reel (29). A second of the two drums (18b or 18a) consequently assuming the opposite unwinding or winding position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B21C Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
