Washing device and method for tube sections
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Grant Date -
Jan 5, 2017
app pub date -
Dec 19, 2014
filing date -
Dec 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

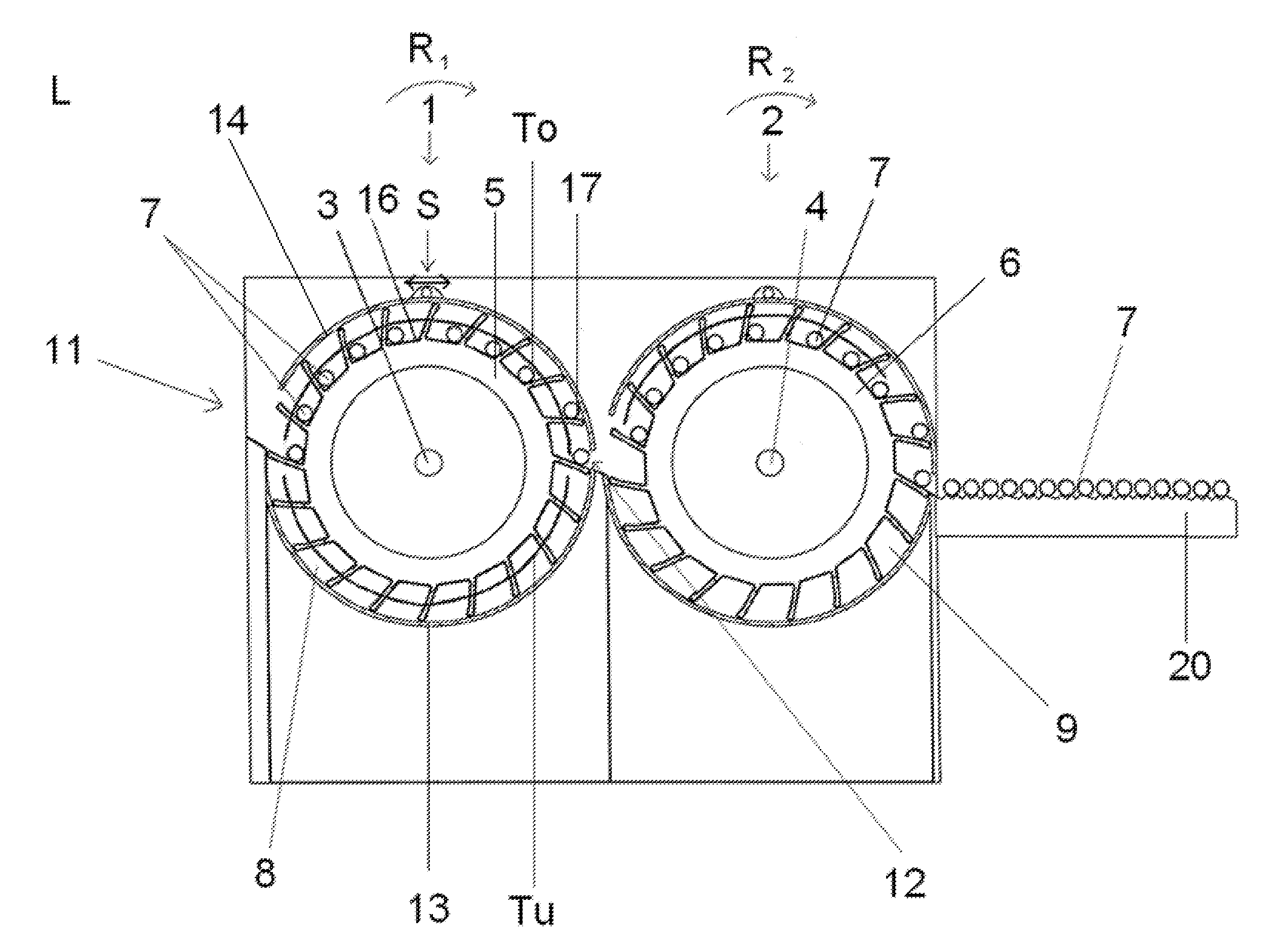

A washing device is provided for elongate profile sections which have been cut to length, having a drum which is rotatable about a horizontally oriented axis of rotation, the drum having a plurality of receiving areas which are arranged next to one another along the circumference of the drum and into which elongate profile sections oriented along the longitudinal direction can be inserted, with a receiving opening for the elongate profile sections and a discharge opening for the elongate profile sections and an upper transport path for the elongate profile sections, the upper transport path running between the receiving opening and the discharge opening, wherein the upper transport path passes the axis of rotation on the side thereof facing away from the ground, wherein an opening width of the discharge opening is adjustable in the circumferential direction.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | B4 | DE102013114850 | Dec 23, 2013 |
| EP | B1 | EP3086888 | Dec 19, 2014 |
| JP | B2 | JP6282744 | Dec 19, 2014 |
| CN | B | CN105828963 | Dec 19, 2014 |
| CA | C | CA2933743 | Dec 19, 2014 |
| WO | A1 | WO2015097114 | Dec 19, 2014 |
| MX | B | MX383396 | Jun 22, 2016 |
International Classification(s)
- 2014 Application Filing Year
- B08B Class
- 792 Applications Filed
- 630 Patents Issued To-Date
- 79.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B08B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
