Application of self-seal and adhesive strips to asphalt shingles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2017
Issued Date -
N/A
app pub date -
Aug 12, 2015
filing date -
Aug 14, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

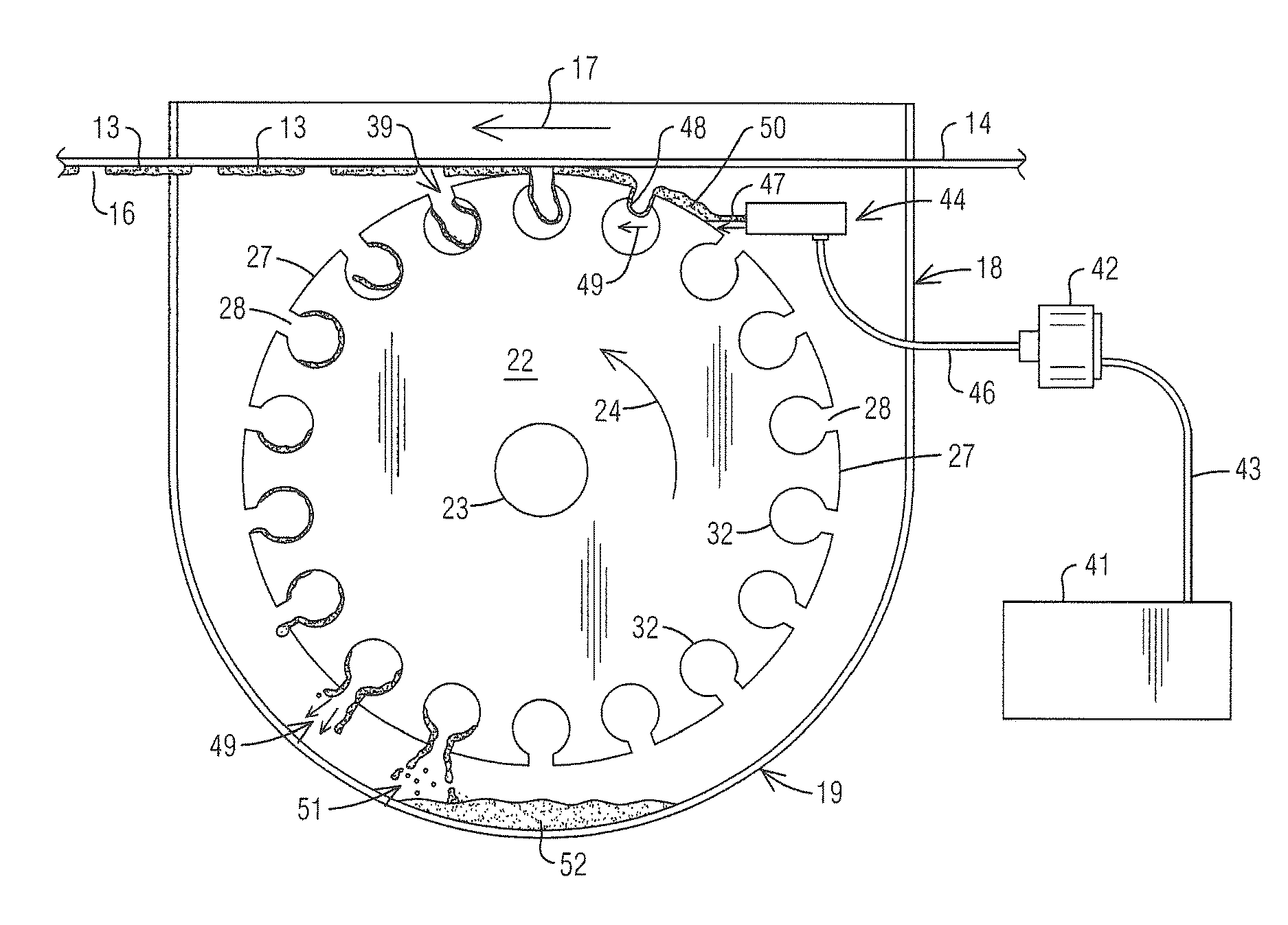

An apparatus is disclosed for applying a strip of sealant to a web of roofing shingle stock as the web moves along a processing path. The apparatus includes an applicator wheel disposed on one side of the processing path and having a peripheral surface. The applicator wheel is rotatably mounted and oriented such that rotation of the applicator wheel moves the peripheral surface of the applicator wheel toward, adjacent to, and then away from the moving web of shingle stock. A nozzle preferably in the form of a slot die is disposed adjacent to the peripheral surface of the applicator wheel. A source of sealant is supplied and a delivery system is configured to deliver the sealant from the source of the sealant to the slot die under a predetermined pressure. The slot die and delivery system are configured to project a stream of sealant toward and onto the peripheral surface of the applicator wheel at a predetermined speed. This applies a coating of sealant to the peripheral surface of the applicator wheel. The moving web of roofing shingle stock engages the sealant on the peripheral surface of the applicator wheel as the peripheral surface moves adjacent to the web. This, in turn, draws sealant from the peripheral surface of the applicator and onto the web of roofing shingle stock thereby applying the strip of sealant to the web.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2015 Application Filing Year
- B05C Class
- 543 Applications Filed
- 408 Patents Issued To-Date
- 75.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- B05C Class
- 38 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2029 |
