Rotatable plug structure for power adapter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 2017
Grant Date -
N/A
app pub date -
Dec 7, 2016
filing date -
Aug 22, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

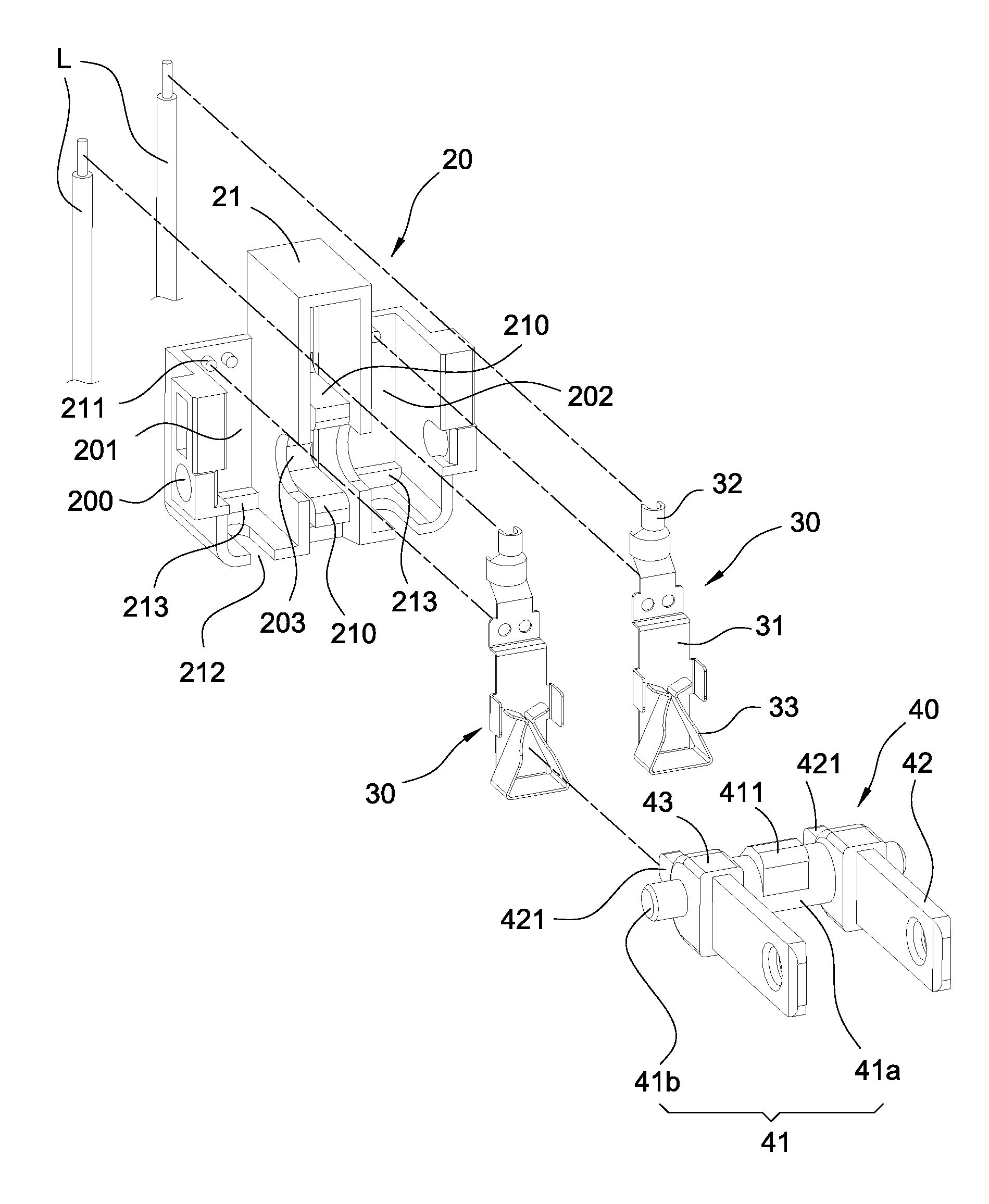

A rotatable plug structure for a power adapter includes a carrying base, two conductive terminals and a plug. The carrying base includes a first installation slot, a second installation slot and a channel connected between the two. The conductive terminals are secured onto the first and second installation slots; the conductive terminals include a main body, a wiring portion and a clamping member. The clamping member includes a pair of metal slats bent from the main body and extended to taper toward each other. The plug is rotatably installed on the carrying base and the conductive terminal; the plug includes a pivotal axle, a pair of insertion pins and a conductive connecting end. The plug swings freely about the pivotal axle between a deployed state and a retracted state; thereby, the conductive connecting ends are clamped by the clamping member or disengaged therefrom to overcome the improper contact problem.
