Pipe coupling having double-threaded tightening fastener and associated methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 2017
Issued Date -
N/A
app pub date -
Aug 17, 2015
filing date -
Aug 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

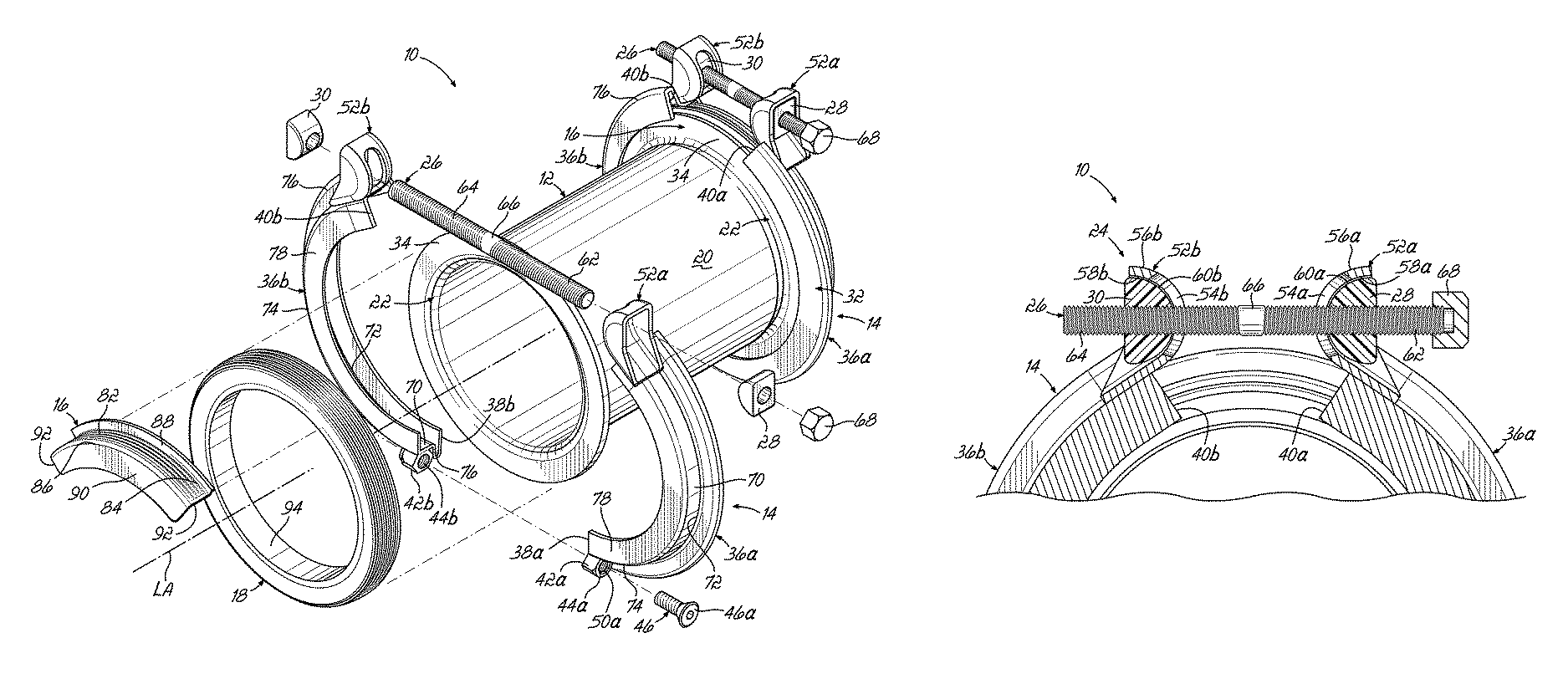

A pipe coupling for coupling adjacent pipe ends of a pair of pipes includes a sleeve, a sealing gasket operatively coupled with the sleeve adjacent an open end of the sleeve, and a clamping element for compressing the sleeve or the sealing gasket into tightened engagement with one of the pipe ends. The clamping element includes two bolt flanges nominally spaced apart by a gap and a double threaded fastening bolt with two external threaded portions, which engage with two corresponding fastening nuts having right-hand thread and left-hand thread, respectively. Accordingly, when the fastening bolt is rotated, both of the fastening nuts move towards or away from one another, thereby rapidly moving the bolt flanges to shrink the gap and compress the clamping element or to expand the gap. As such, less time and labor are required to operate the pipe coupling in the field.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F16L Class
- 1770 Applications Filed
- 1377 Patents Issued To-Date
- 77.80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16L Class
- 26.55 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 17, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 17, 2029 |
