Hold and releasing mechanism for holding and releasing a cable take-up device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 2017
Issued Date -
Mar 19, 2015
app pub date -
Aug 26, 2014
filing date -
Aug 26, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

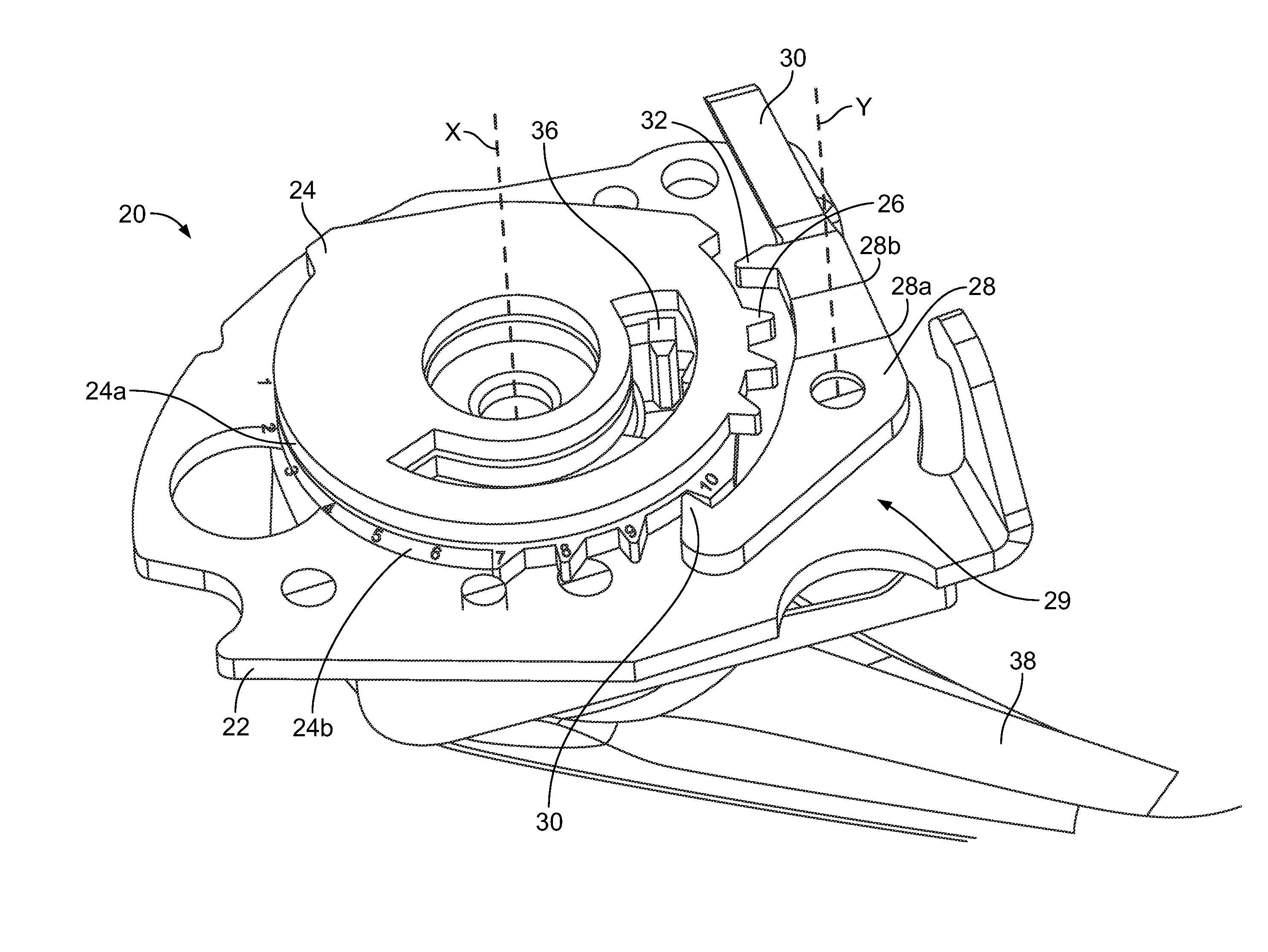

A hold and release mechanism for holding and releasing a cable includes a toothed-disk arrangement coupled with the cable take-up device for rotating together about a first axis. The toothed-disk arrangement includes a plurality of teeth at an outer periphery of the toothed-disk arrangement. The plurality of teeth includes locking and safety teeth. The locking teeth are disposed in a first tooth plane orthogonal to the first axis. The safety teeth are disposed in a second tooth plane that is orthogonal to the first axis and offset relative to the first tooth plane. An adjustable locking pawl pivotably mounted about a second axis includes locking and safety catches. The locking catch engages with one of the locking teeth for holding the toothed-disk arrangement in a first rotational position. The safety catch engages with one of the safety teeth for holding the toothed-disk arrangement in a second rotational position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B62M Class
- 329 Applications Filed
- 279 Patents Issued To-Date
- 84.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B62M Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 17, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 17, 2029 |
