Fastener
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 2017
Issued Date -
N/A
app pub date -
Apr 14, 2016
filing date -
Apr 15, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

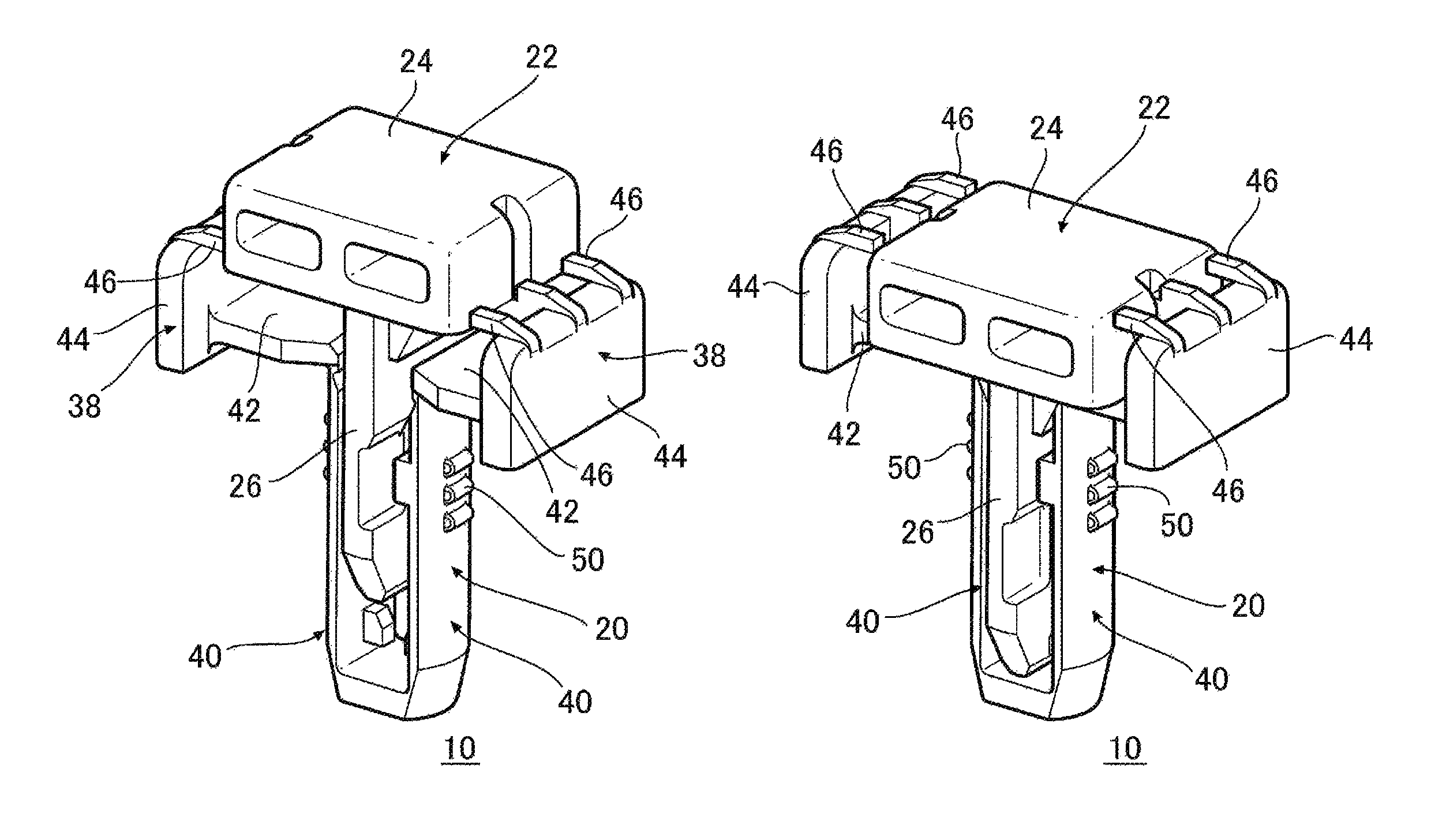

An embodiment provides a fastener including a locking member and a pin member which are connected. The locking member has a pair of leg portions that are inserted into the mount hole and a flange portion that is brought into abutment with a portion of the mount-base member that lies on a circumference of the mount hole. The pin member has a head portion that is connected to the flange portion and an extending portion that extends from a rear side of the head portion. When the head portion of the pin member is forced into the locking member, a connection between the flange portion and the head portion is released, and the extending portion travels between the pair of leg portions to expand open the pair of leg portions or to restrict the pair of leg portions from moving towards each other.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F16B Class
- 1804 Applications Filed
- 1257 Patents Issued To-Date
- 69.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16B Class
- 27.32 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 17, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 17, 2029 |
