Steering apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 2017
Issued Date -
N/A
app pub date -
Aug 8, 2016
filing date -
Aug 11, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

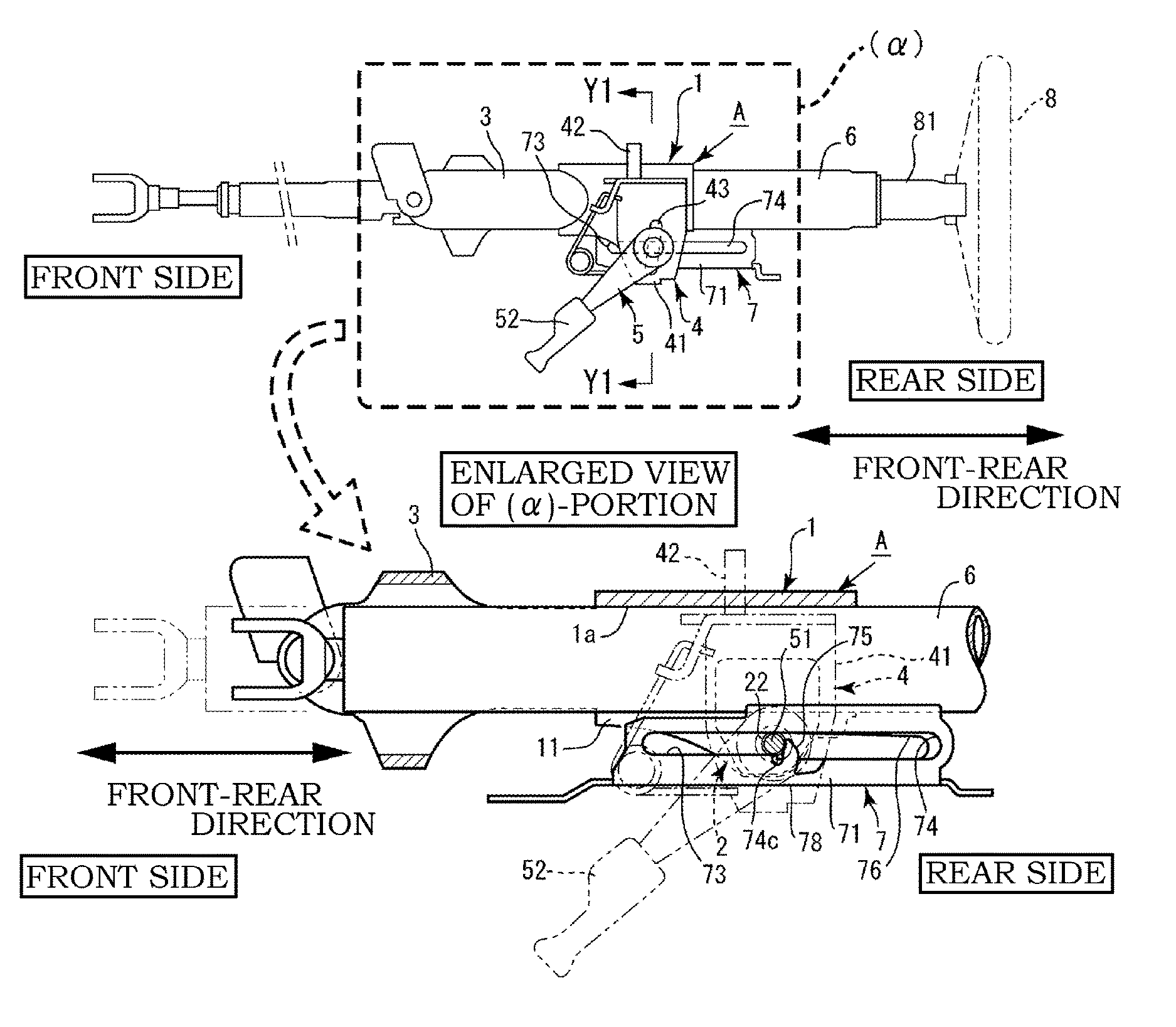

A steering apparatus includes a column pipe, an outer column, a fixed bracket, a stopper bracket, and a clamping tool. The stopper bracket has a first suspending planar portion and a second suspending planar portion. A telescopic slot and an impact absorbing slot are formed in the first and second suspending planar portions. A first collapsing portion, which is configured as a protruding plate piece positioned between the telescopic slot and the impact absorbing slot of the first suspending planar portion and bent by colliding with a bolt shaft in an event of a secondary collision, is provided in the first and second suspending planar portions. A second collapsing portion, the height dimension of which decreases toward a trailing end is provided in the impact absorbing slot of one of the first suspending planar portion and the second suspending planar portion.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- B62D Class
- 16.86 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 17, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 17, 2029 |
