Unibody hopper trailer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 2017
Issued Date -
N/A
app pub date -
Aug 29, 2014
filing date -
Sep 6, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

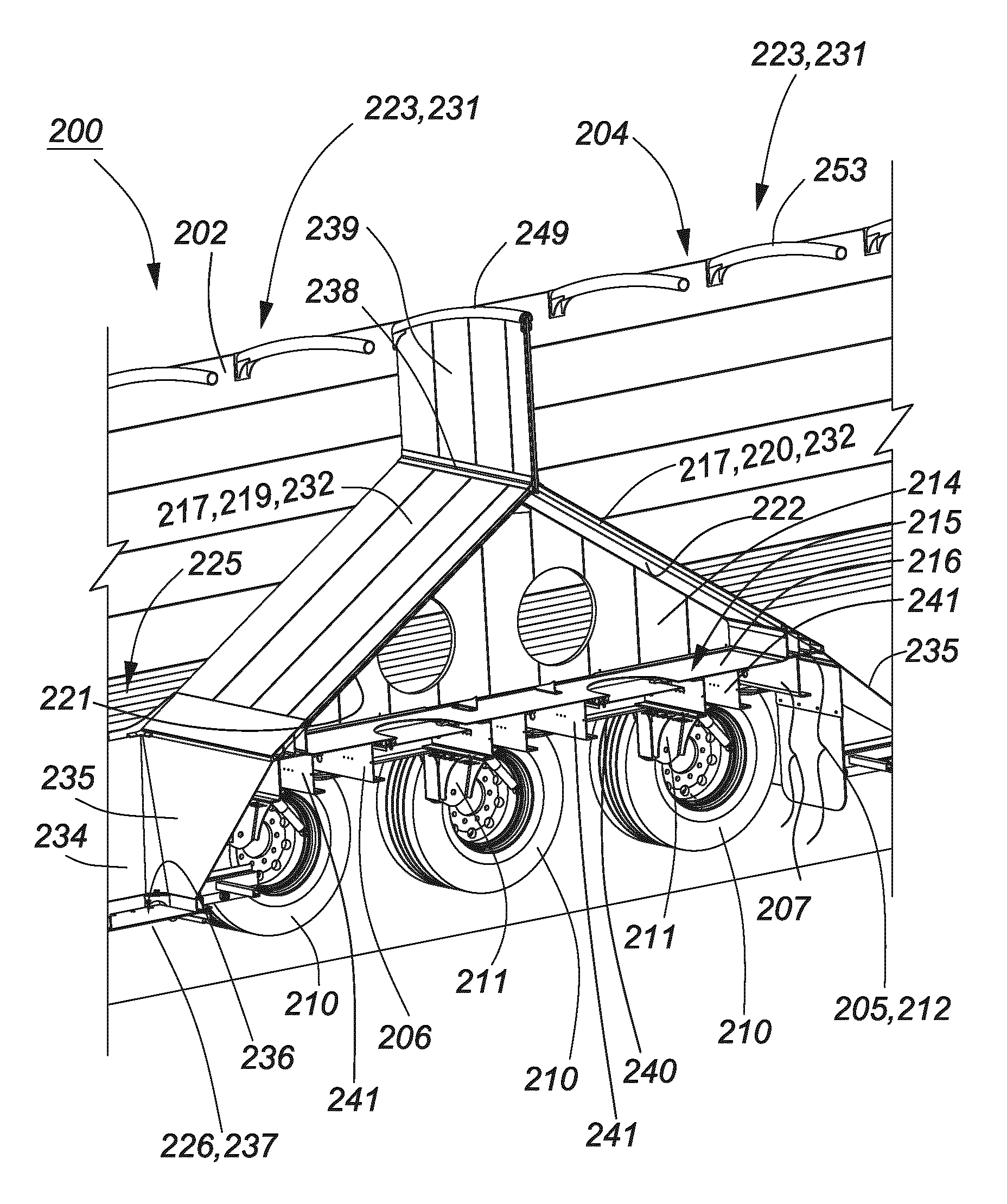

A hopper trailer has a chassis with longitudinal rails mounted to a wheeled suspension. Triangular load transfer plates are mounted vertically on and carried by the longitudinal rails. A container has opposing sidewalls, opposing end walls, and two sloping walls each spanning between and adjoining the opposing sidewalls. The sloping walls and the sidewalls form a hopper. One of the sloping walls is mounted on and carried by the load transfer plates. The sidewalls are mounted to and carried by the sloping wall. The weight of a bulk material carried in the hopper and the weight of the sidewalls is carried by the sloping wall. This weight is transferred vertically downwardly from the sidewall through the load transfer plate into the chassis without substantial deflection from a vertical path. Bending stresses caused in the hopper slopes and floor frame of conventional trailers by indirect weight transmission is avoided.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B60P Class
- 519 Applications Filed
- 447 Patents Issued To-Date
- 86.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B60P Class
- 14.83 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 17, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 17, 2029 |
