Rug cleaning device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 2017
Issued Date -
N/A
app pub date -
Jul 18, 2013
filing date -
Aug 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

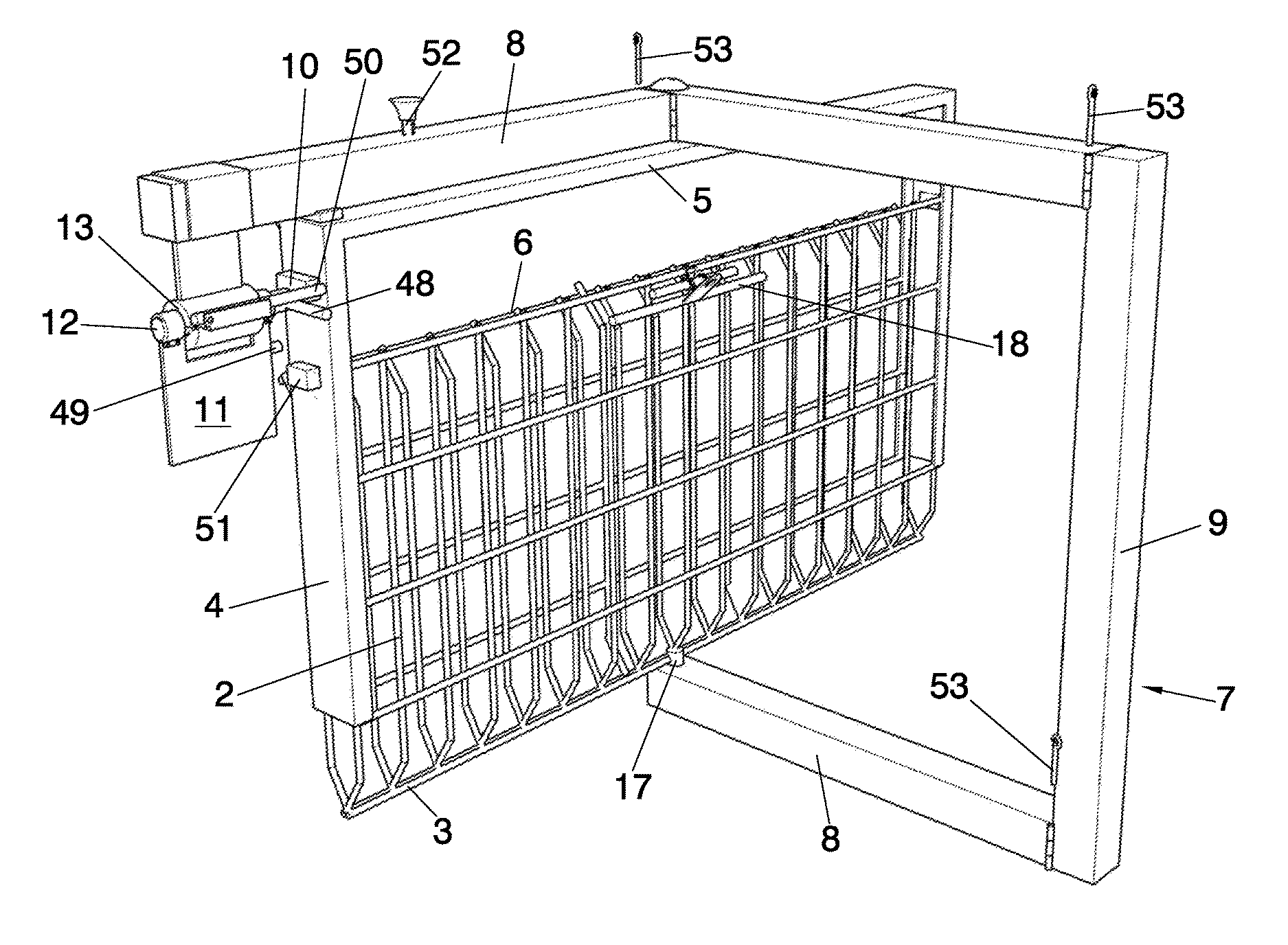

Mat cleaning device comprising at least one washing basket having a cage-like shape and intended to accommodate the mat in an adjacent arrangement, and in a non-folded position. The basket comprises at least a metallic mesh, having a V configuration defined by two convergent sections converging in a lower edge and having a free end opposite to the lower edge in each convergent section, through which a mat is introduced in the basket, and two side ends delimiting the cage sides. The device comprises a support to which the basket is rotationally linked through rotating elements, in such a way that it can rotate over a transversal axis or a longitudinal axis.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- D06G Class
- 2 Applications Filed
- 2 Patents Issued To-Date
- 100 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D06G Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 17, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 17, 2029 |
