Hybrid electric device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2017
Issued Date -
N/A
app pub date -
May 20, 2014
filing date -
Oct 17, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance

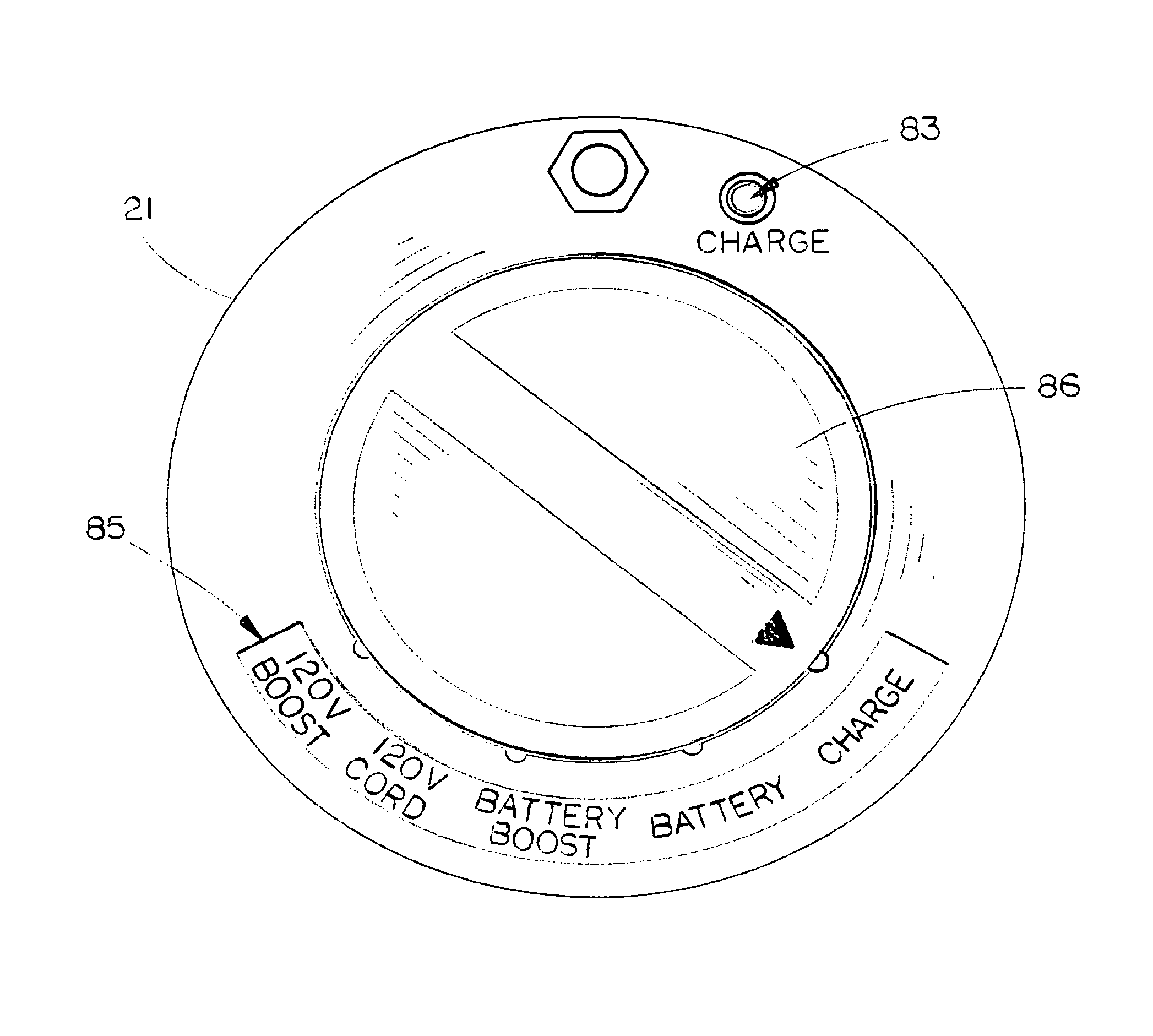

Abstract
A device includes a housing configured with a working element and a motor configured for urging motion of the working element. The device further includes a power control module. The power control module is configurable for being in electrical connection with at least one of the motor, a first power source configuration and a second power source configuration. The first power source configuration is configurable for being electrically connected to a battery assembly having a DC power output. The second power source configuration is configurable for being electrically connected to a power inverter, the power inverter configured for receiving an AC power and further configured for outputting a DC power to the second power source configuration. The power control module includes an automatic power selection configuration for automatically selecting the second power source configuration when the second power source configuration receives DC power from the power inverter.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H02P Class
- 1299 Applications Filed
- 1159 Patents Issued To-Date
- 89.23 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 12 Citation Count
- H02P Class
- 84.58 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 10, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 10, 2029 |
