Polarization-based coherent gradient sensing systems and methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2017
Grant Date -
Dec 15, 2016
app pub date -
May 12, 2016
filing date -
Jun 15, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

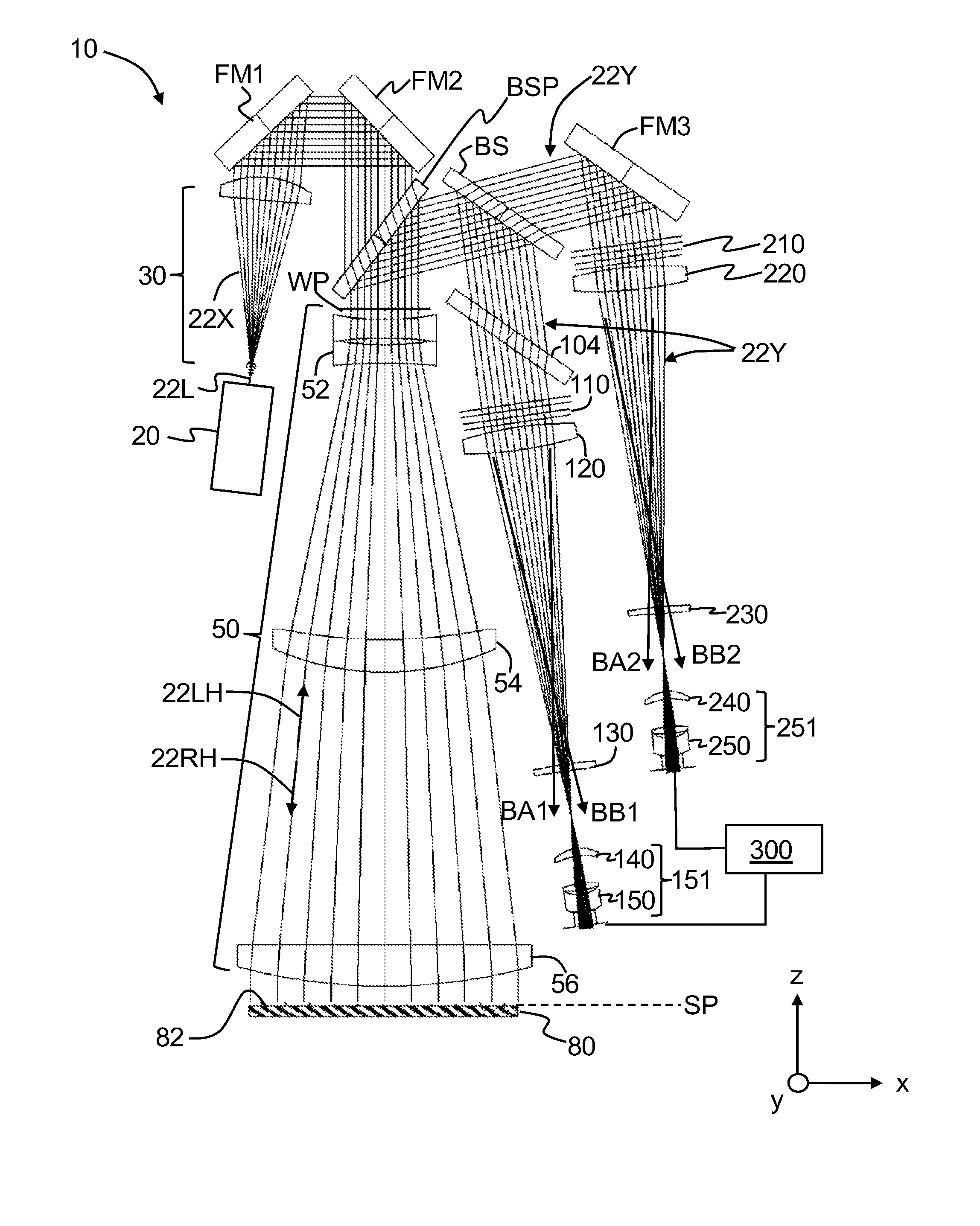

Polarization-based coherent gradient-sensing systems and methods for measuring at least one surface-shape property of a specularly reflective surface are disclosed. The method includes: reflecting a first circularly polarized laser beam from a sample surface to form a second circularly polarized laser beam that contains surface-shape information; converting the second circularly polarized laser beam to a linearly polarized reflected laser beam; directing respective first and second portions of the linearly polarized reflected laser beam to first and second relay assemblies that constitute first and second interferometer arms. The first and second relay assemblies each use a pair of axially spaced-apart gratings to generate respective first and second interference patterns at respective first and second image sensors. Respective first and second signals from the first and second image sensors are processed to determine the at least one surface-shape property.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 10, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 10, 2029 |
