Entanglement obstacle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2017
Issued Date -
N/A
app pub date -
Oct 21, 2014
filing date -
Oct 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

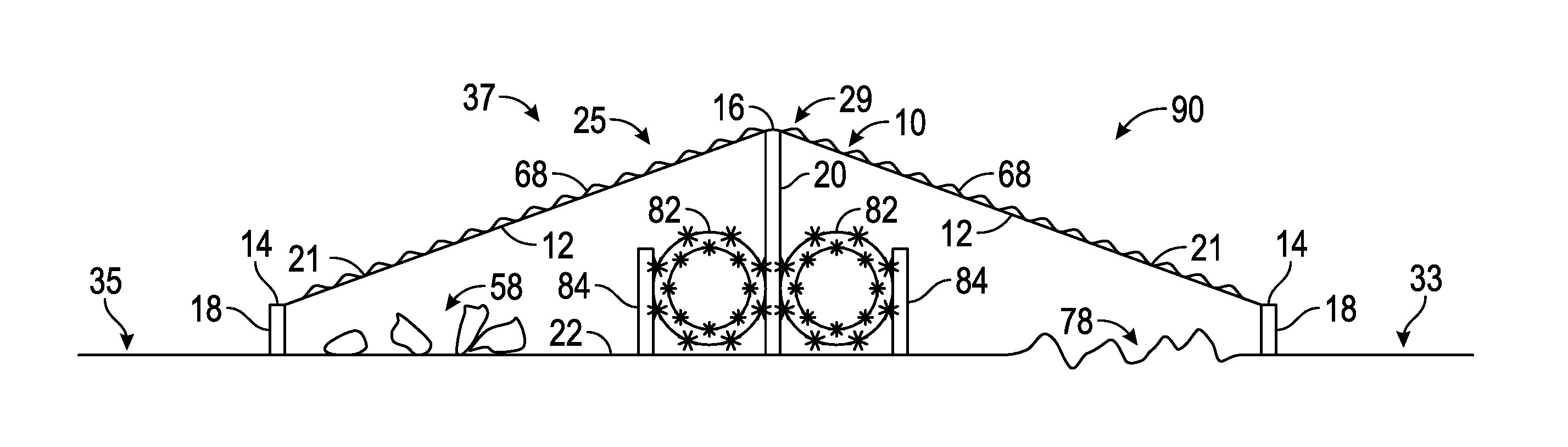

An entanglement obstacle for obstructing an area of a surface includes a mesh layer suspended over upright perimeter members via a perimeter cable and over upright central members via a central cable. The upright members are operatively attached to the surface. The perimeter cable is operatively attached to the perimeter members at a perimeter clearance above the surface to provide a trip impediment. The central cable is operatively attached to the central members at a central clearance above the surface to provide a step-over impediment. The central clearance is greater than the perimeter clearance. The mesh layer is operatively attached to the perimeter and central cables such that the mesh layer covers the obstructed area to provide an entanglement obstacle. The mesh layer is inclined from the central cable to each of first and second sides of the obstacle at an angle defined by the central perimeter clearances.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F41H Class
- 264 Applications Filed
- 218 Patents Issued To-Date
- 82.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F41H Class
- 10.77 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 10, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 10, 2029 |
