Low-thickness thermostructural composite material part, and manufacture method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2017
Grant Date -
Jun 30, 2016
app pub date -
Mar 7, 2016
filing date -
Oct 30, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

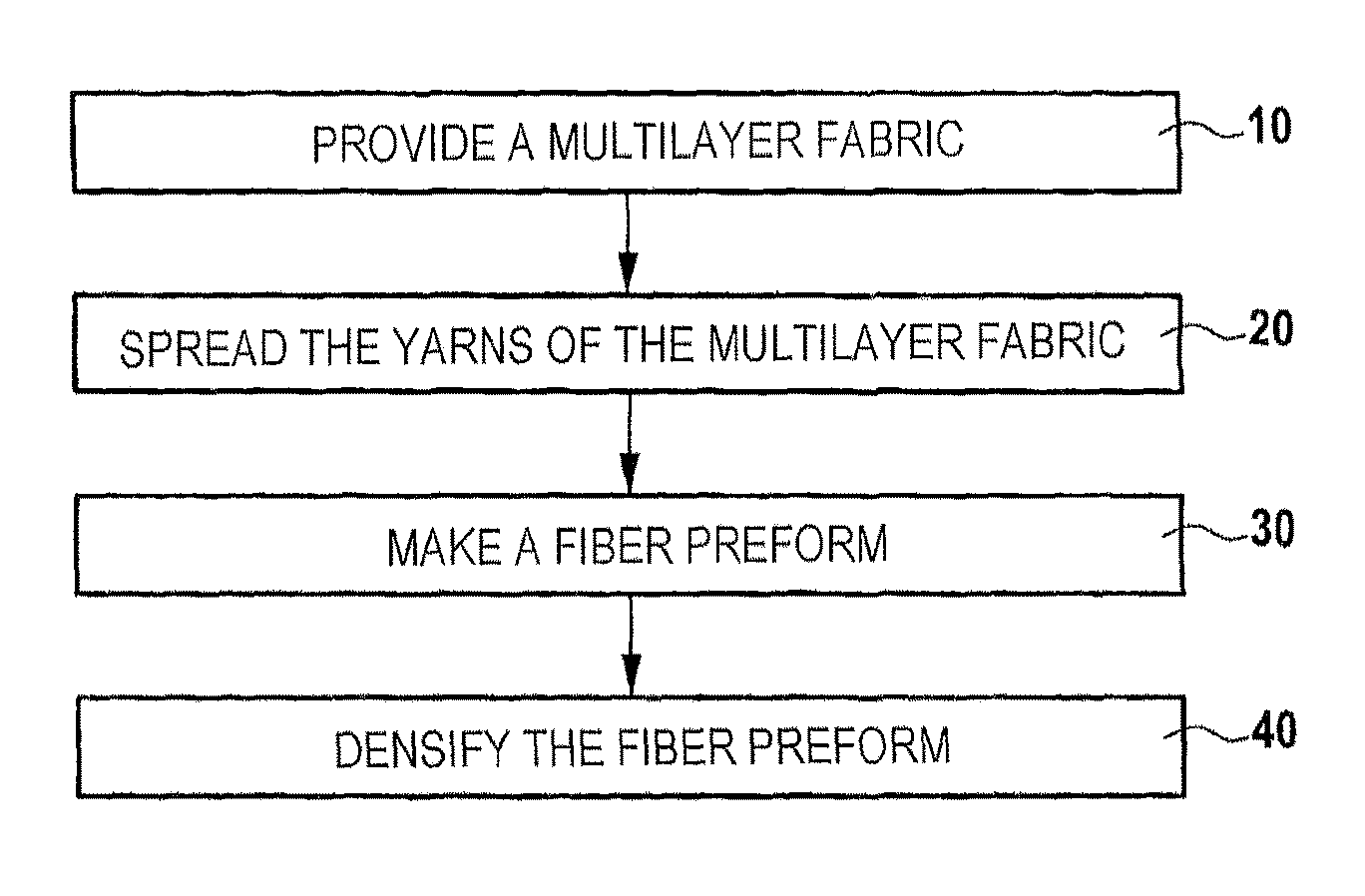

A thermostructural composite material part including carbon or ceramic fiber reinforcement densified by a matrix having at least one thin portion in which: the thickness of the part is less than 2 mm, or indeed less than 1 mm; the fiber reinforcement is made as a single thickness of multilayer fabric made of spread yarns having a weight of not less than 200 tex; the fiber volume ratio lies in the range 25% to 45%; and the ratio between the number of layers of the multilayer fabric and the thickness in millimeters of the part is not less than four.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- F02K Class
- 527 Applications Filed
- 379 Patents Issued To-Date
- 71.92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 10, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 10, 2029 |
