Lock-key system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2017
Grant Date -
Nov 1, 2012
app pub date -
Oct 8, 2010
filing date -
Oct 16, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

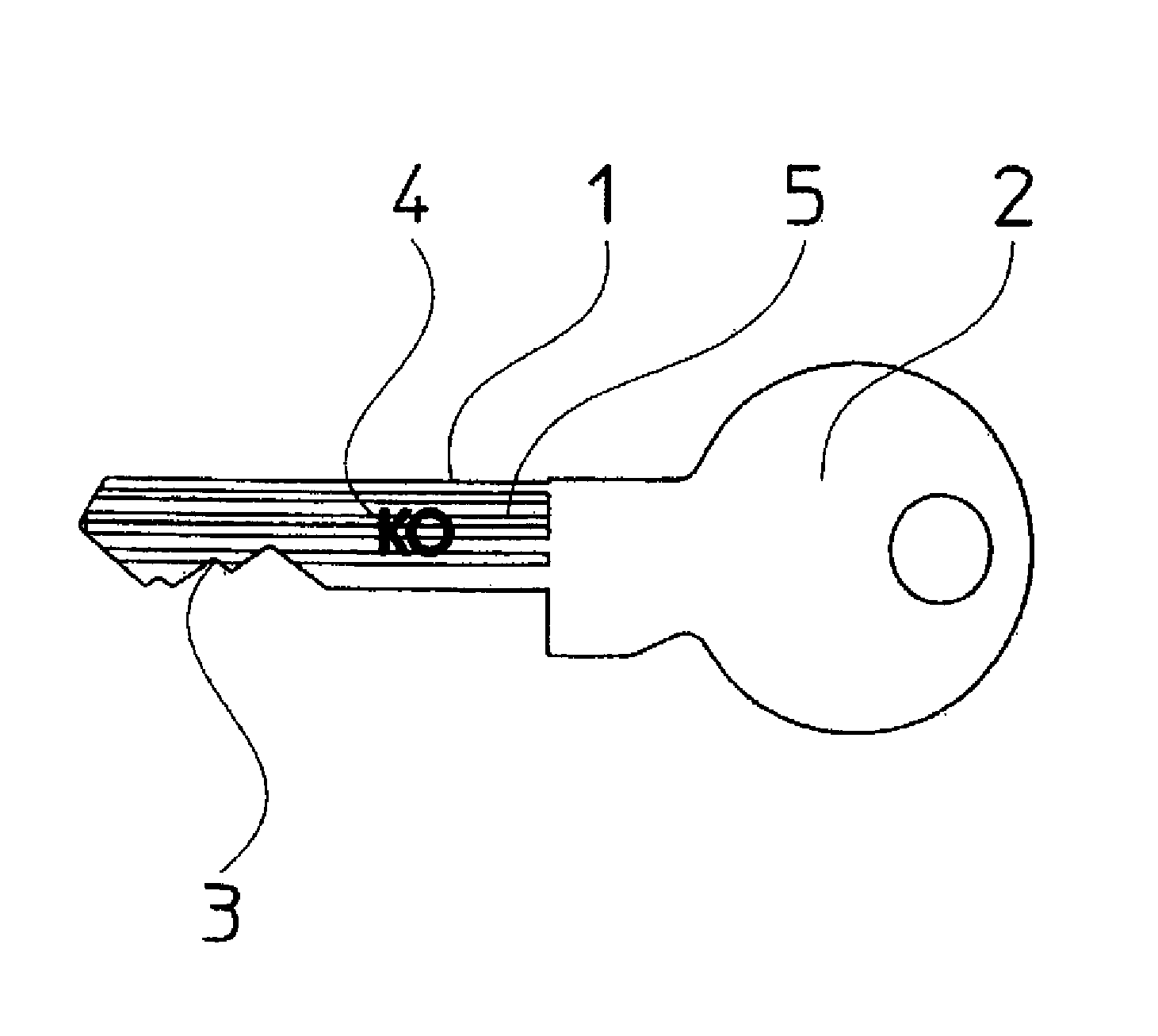

The invention relates to a lock-key system, including a key that is insertable into a key channel of a lock cylinder, and traceable by core pins or by locking elements that are displaceable in the cylinder core, wherein in case of a match, the cylinder core can be rotated by means of the inserted key. Lettering in the form of an impression and/or an embossment, serving as an identifier and including letters and/or numbers and/or symbols, is introduced into at least one lateral surface of the key shank and in case of a lateral profiling, into the lateral profiling. The lettering or individual letters, numbers, or the symbol or sub-areas thereof are traceable by core pins or locking elements having a correspondingly formed contact surface.
