Modular travel warning strip system and methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2017
Issued Date -
N/A
app pub date -
Jan 28, 2016
filing date -
Jan 28, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

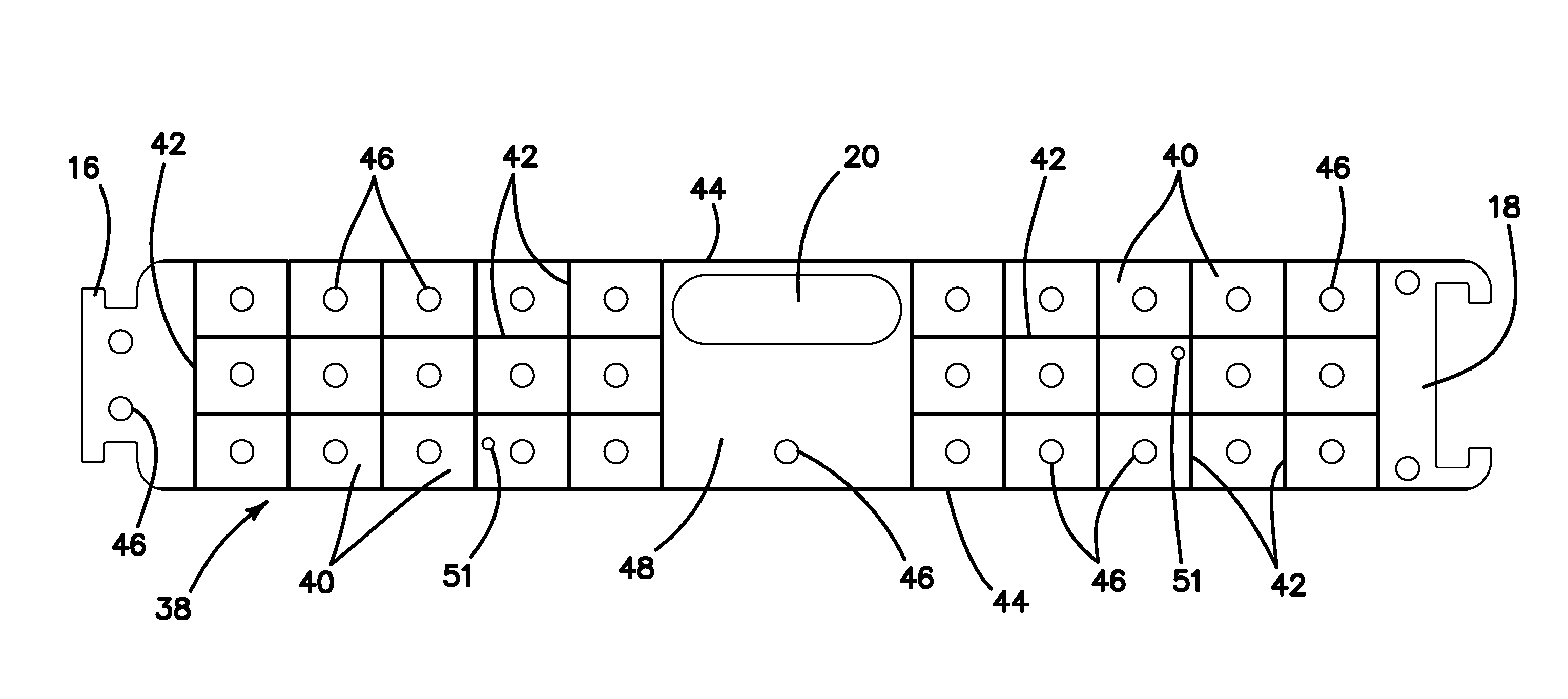

A modular highway warning strip system which comprises a modular warning strip segment having first and second ends, a length extending between the first and second ends, two opposing lengthwise sides, a width extending between the opposing lengthwise sides of the segment, top and bottom surfaces, and a thickness. Each of the first and second ends comprise at least one male protrusion and at least one female receptacle, wherein the at least one male protrusion is configured to engage the at least one female receptacle for joining a plurality of the segments together end-to-end. A segmented metallic plate is disposed between upper and lower rubber layers, the segmented plate comprising a plurality of segments separated by slits comprising living hinges.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- E01F Class
- 186 Applications Filed
- 141 Patents Issued To-Date
- 75.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- E01F Class
- 21.93 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 10, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 10, 2029 |
