Method for producing an aromatic hydrocarbon with an oxygenate as raw material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2017
Issued Date -
N/A
app pub date -
Oct 30, 2014
filing date -
Oct 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

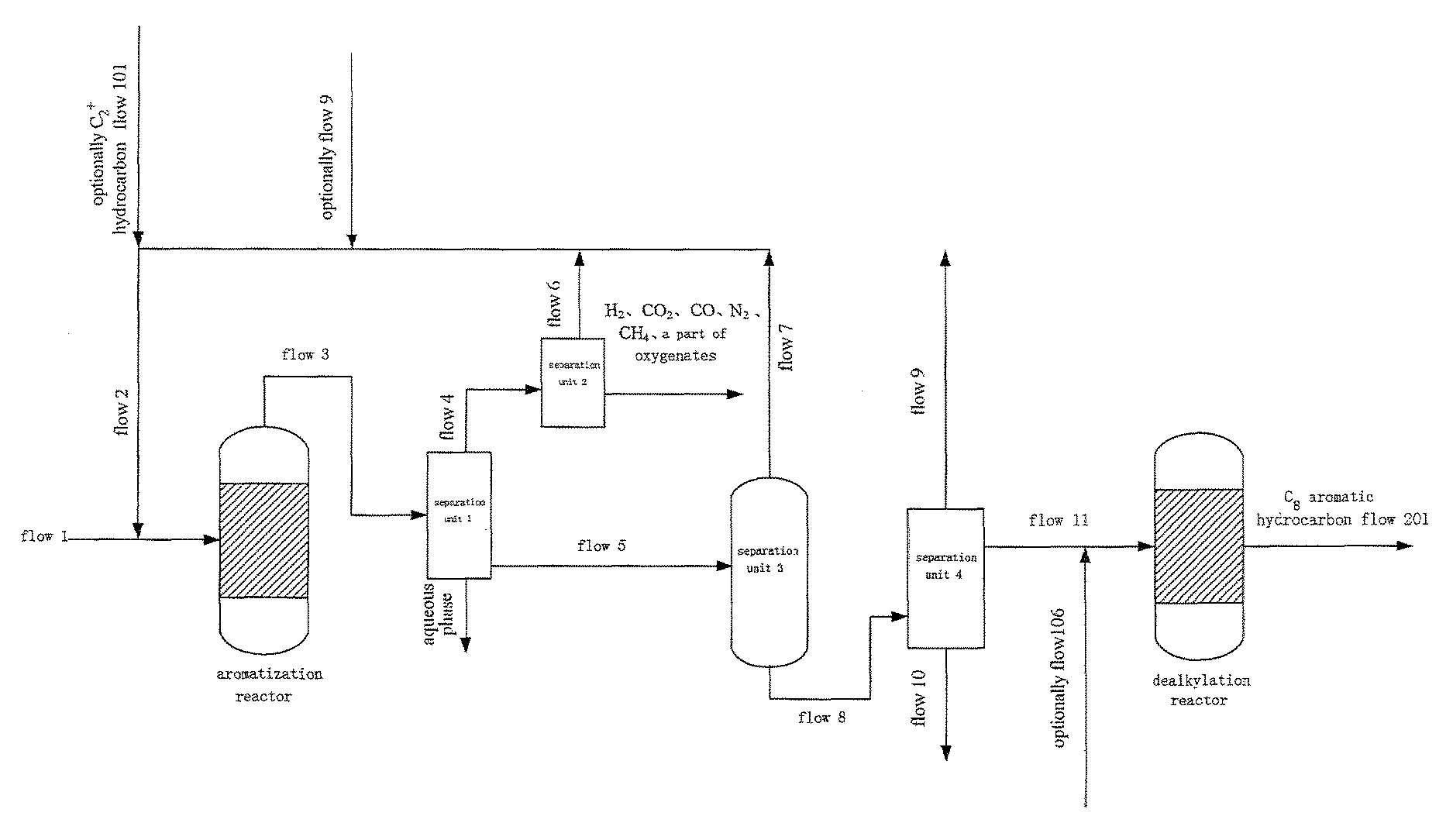

A method for producing an aromatic hydrocarbon with an oxygenate as raw material, includes: i) reacting an oxygenate in at least one aromatization reactor to obtain an aromatization reaction product; ii) separating the aromatization reaction product to obtain a gas phase hydrocarbons flow X and a liquid phase hydrocarbons flow Y; iii) after removing gas and/or a part of the oxygenate from the gas phase hydrocarbons flow X, a hydrocarbons flow X1 containing a non-aromatic hydrocarbon is obtained; or after removing gas and/or a part of the oxygenate from the gas phase hydrocarbons flow X, a reaction is conducted in another aromatization reactor and a separation is conducted to obtain a flow X2 containing a non-aromatic hydrocarbon and a flow X3 containing an aromatic hydrocarbon. The flows are further treated.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- C07C Class
- 3318 Applications Filed
- 2843 Patents Issued To-Date
- 85.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C07C Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 10, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 10, 2029 |
