System and method for crane counterweight positioning
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2017
Grant Date -
Oct 6, 2016
app pub date -
Mar 28, 2016
filing date -
Mar 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

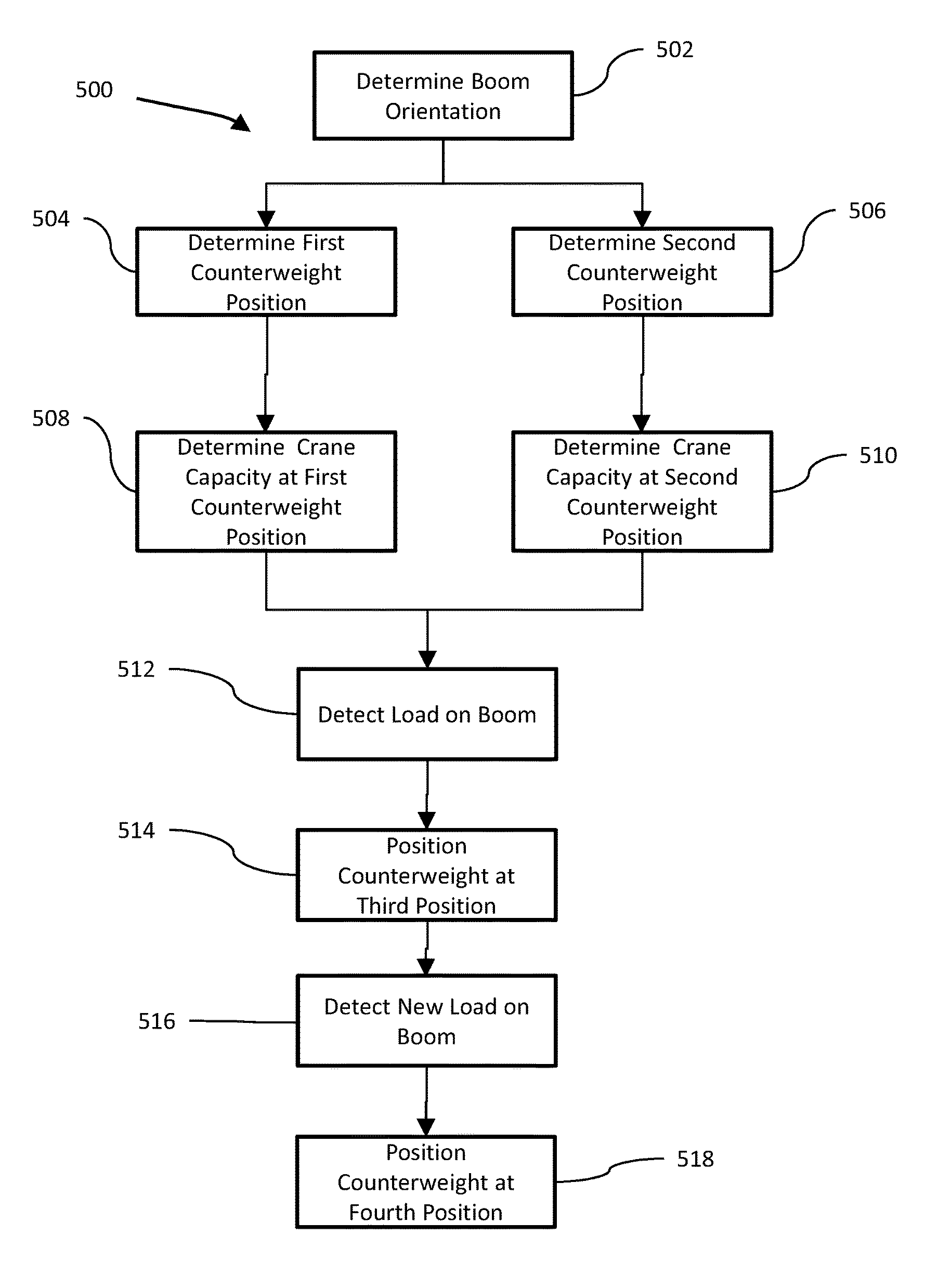

A system and method for positioning a movable crane counterweight is disclosed. In the method, a boom orientation is determined, a first counterweight position is determined, a first crane capacity at the first counterweight position is determined, a second counterweight position is determined corresponding to a second rearward stability associated with the boom orientation. A second crane capacity at the second counterweight position. A load on the crane is determined and the counterweight is positioned at a third position between the first counterweight position and the second counterweight position dependent on the boom load, and the first crane capacity.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B66C Class
- 375 Applications Filed
- 297 Patents Issued To-Date
- 79.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- B66C Class
- 43.48 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 10, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 10, 2029 |
