Suspension coil spring
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2017
Grant Date -
Sep 2, 2004
app pub date -
Apr 12, 2002
filing date -
Apr 13, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

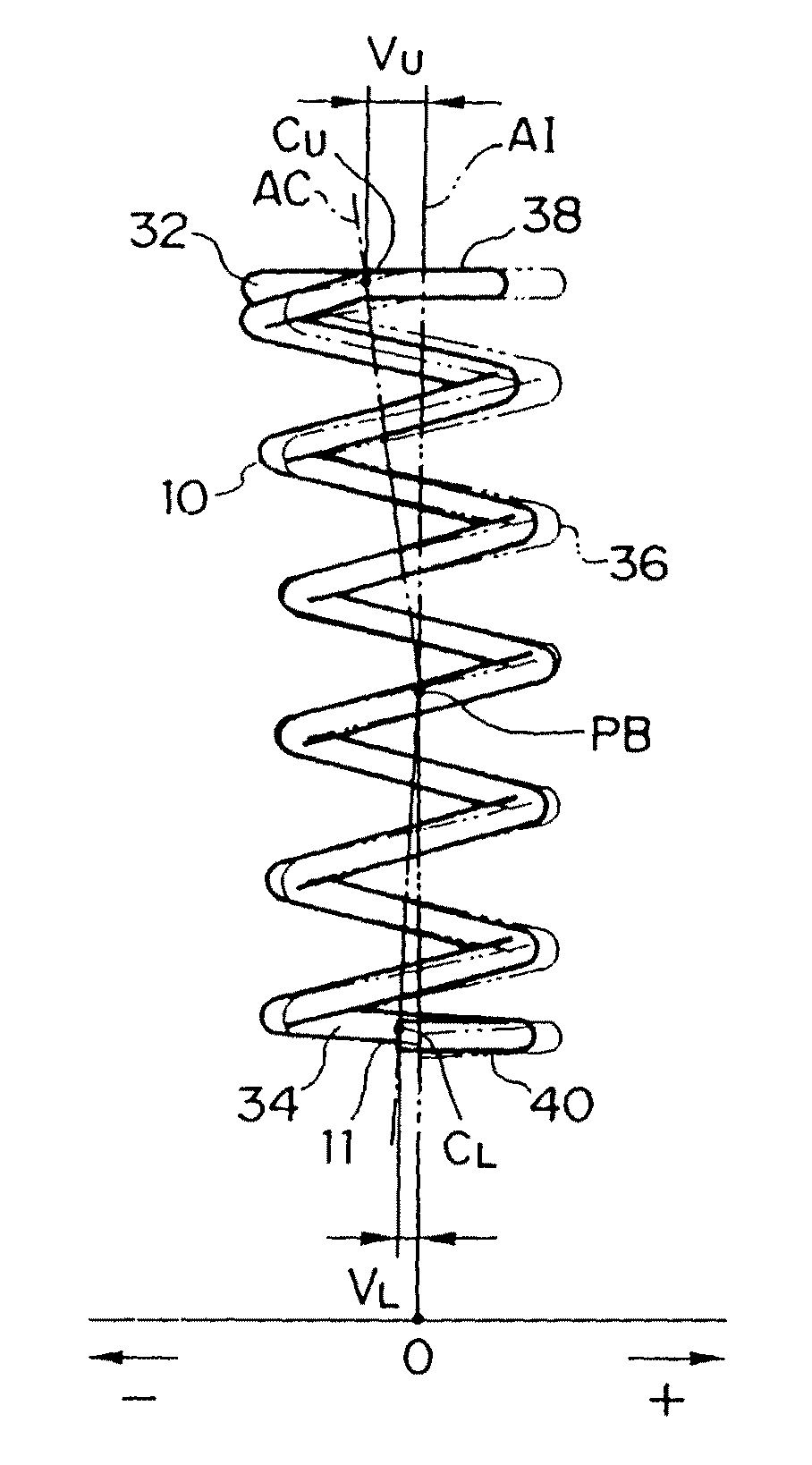

A suspension coil spring, when assembled to a suspension device, in which a spring reaction axis (AR) is positioned coincident with or sufficiently close to a load input axis (AA), and the design and manufacture of coil springs are facilitated. Namely, a suspension coil spring (10) in a free state is formed so that a coil axis (AC) is bent in V-shape at bend point (PB) and the distance from the end turn center (CU) of the upper seating surface (38) to an imaginary coil axis (AI) is an upper inclination amount (VU), and the distance from the end turn center (CL) to the imaginary coil axis (AI) is a lower inclination amount (VL). When the suspension coil spring (10) is interposed between spring seats (22, 24) in the suspension device and compressed along a strut axis, the spring reaction AR axis of the suspension coil spring (10) is inclined and offset with respect to the imaginary coil axis (AL) according to the inclination amounts (VU, VL).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2002 Application Filing Year
- B60G Class
- 254 Applications Filed
- 86 Patents Issued To-Date
- 33.86 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60G Class
- 18.34 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 10, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 10, 2029 |
