Peripheral device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2017
Grant Date -
Dec 22, 2016
app pub date -
May 12, 2016
filing date -
Jun 18, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

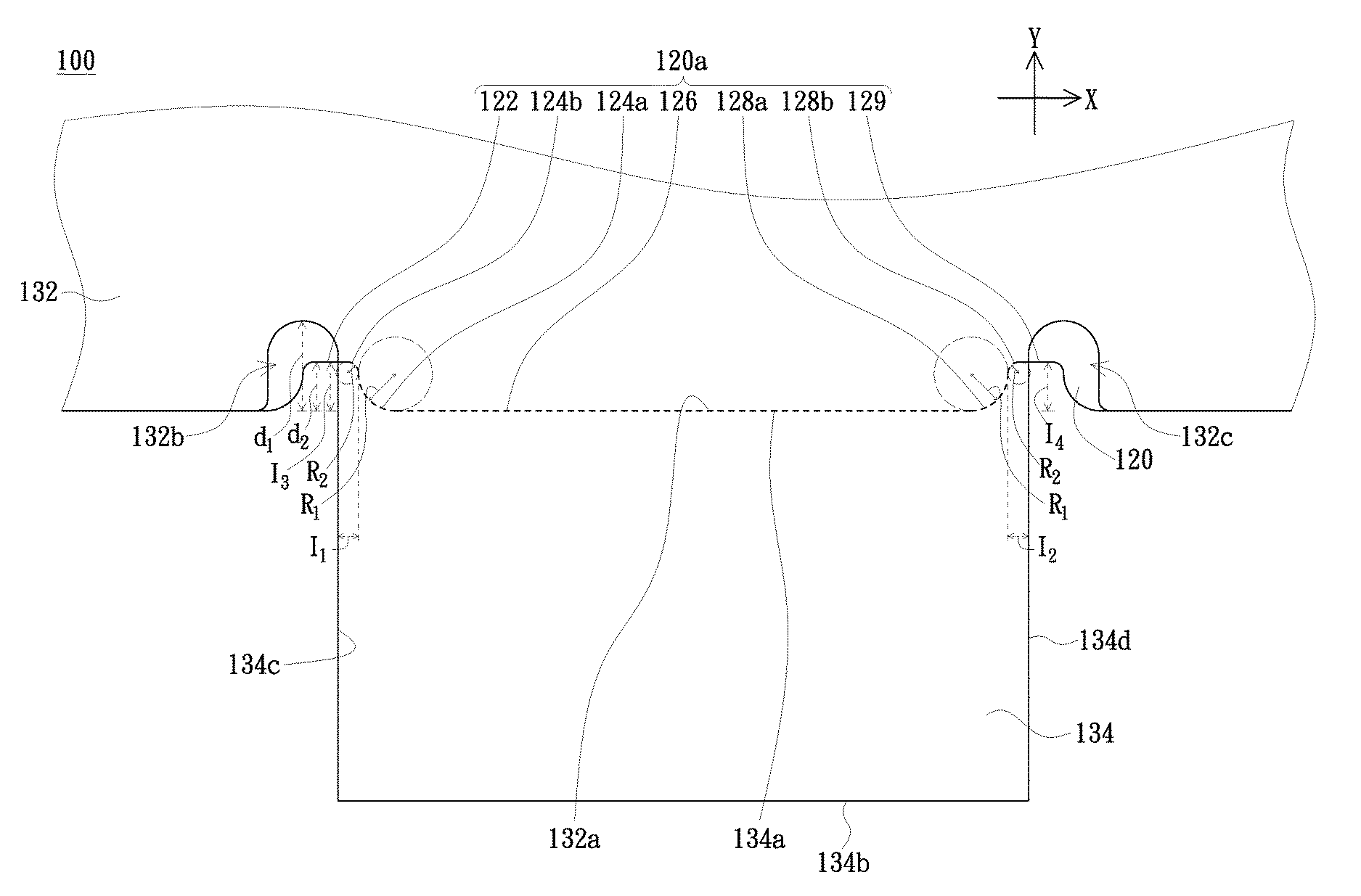

A peripheral device includes a manual operable device, a baseplate for carrying the manual operable device and a circuit board. The baseplate includes a plate edge extending substantially along an x-axis; a left plate indent edge, a left convex edge, a substantially linear edge, a right convex edge and a right plate indent edge are sequentially disposed on the plate edge. The circuit board includes a main portion and a flexible extension. The main portion generates a control signal in response to a triggering event at the manual operable device. The flexible extension extends substantially along a y-axis, and includes an upper end, a lower end, a y-axial left edge and a y-axial right edge; the upper end is connected to the main portion, the lower end is connected to an external connection point, and the control signal is transmitted to the external connection point via the flexible extension.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| TW | B | TWI592069 | Jun 18, 2015 |
International Classification(s)
- 2016 Application Filing Year
- H01H Class
- 1455 Applications Filed
- 1243 Patents Issued To-Date
- 85.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01H Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 3, 2029 |
