Multifunctional components for electronic devices and related methods of providing thermal management and board level shielding
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2017
Issued Date -
N/A
app pub date -
Mar 16, 2016
filing date -
Jul 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

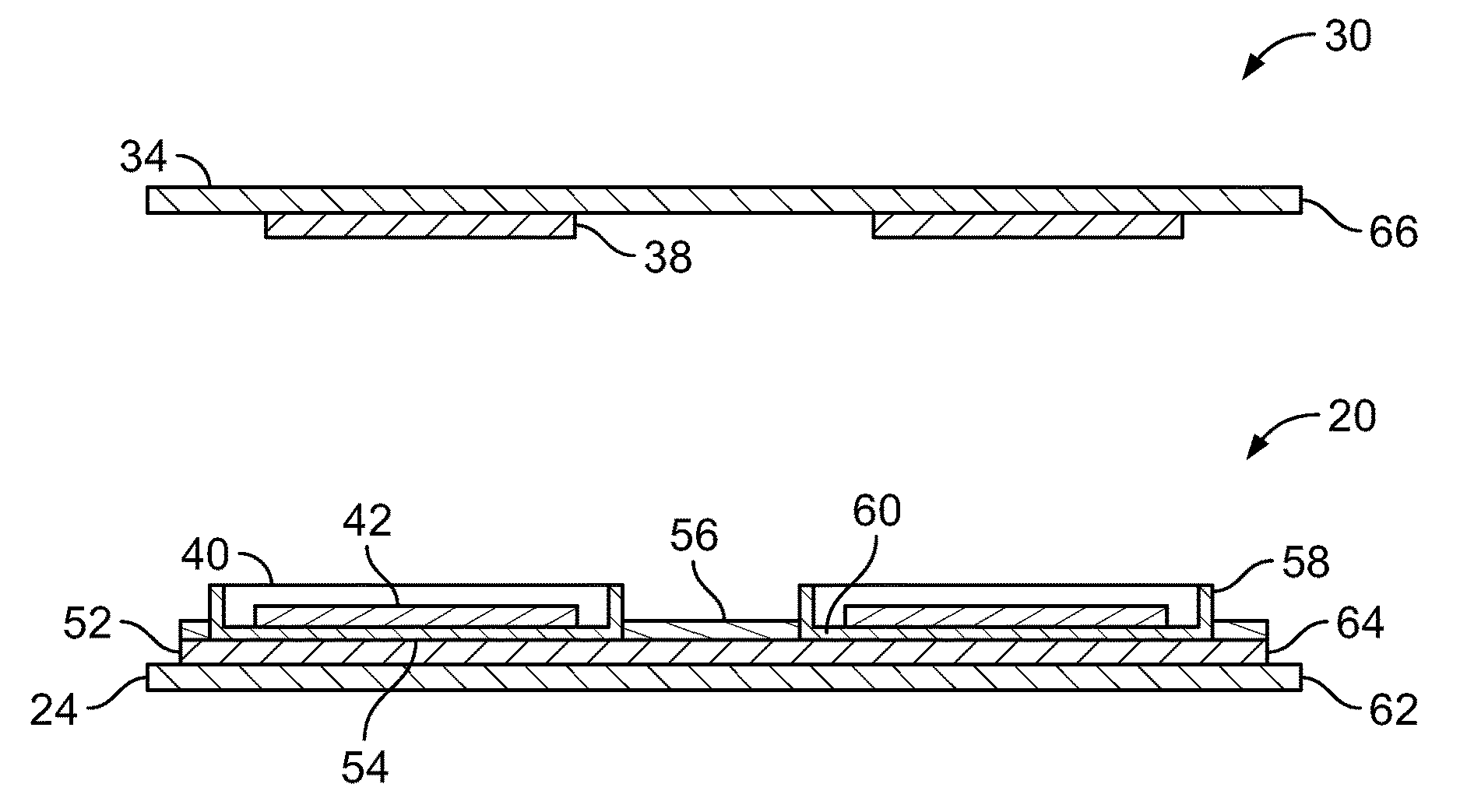

Exemplary embodiments are disclosed of multifunctional components for electronic devices. In an exemplary embodiment, a multifunctional component generally includes a base component, such as a smart phone case (e.g., a back cover, etc.), an inner plate (e.g., a screenplate, a mid-plate, etc.). A heat spreader may be disposed on the base component. Thermal interface material and electromagnetic interference shielding may be disposed on area(s) of the heat spreader. The area(s) may correspond in mirror image relation to component(s) of a circuit board with which the multifunctional component is configured to be joined. During operation of the electronic device, the multifunctional component may draw waste heat from one area and transfer/spread the waste heat to one or more other areas of the electronic device, which may increase a temperature of these one or more other areas. This, in turn, may make device temperature more uniform.
First Claim
Other Claims data not available
