Surge protection device with at least one surge protection unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2017
Issued Date -
N/A
app pub date -
Feb 10, 2015
filing date -
Mar 13, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

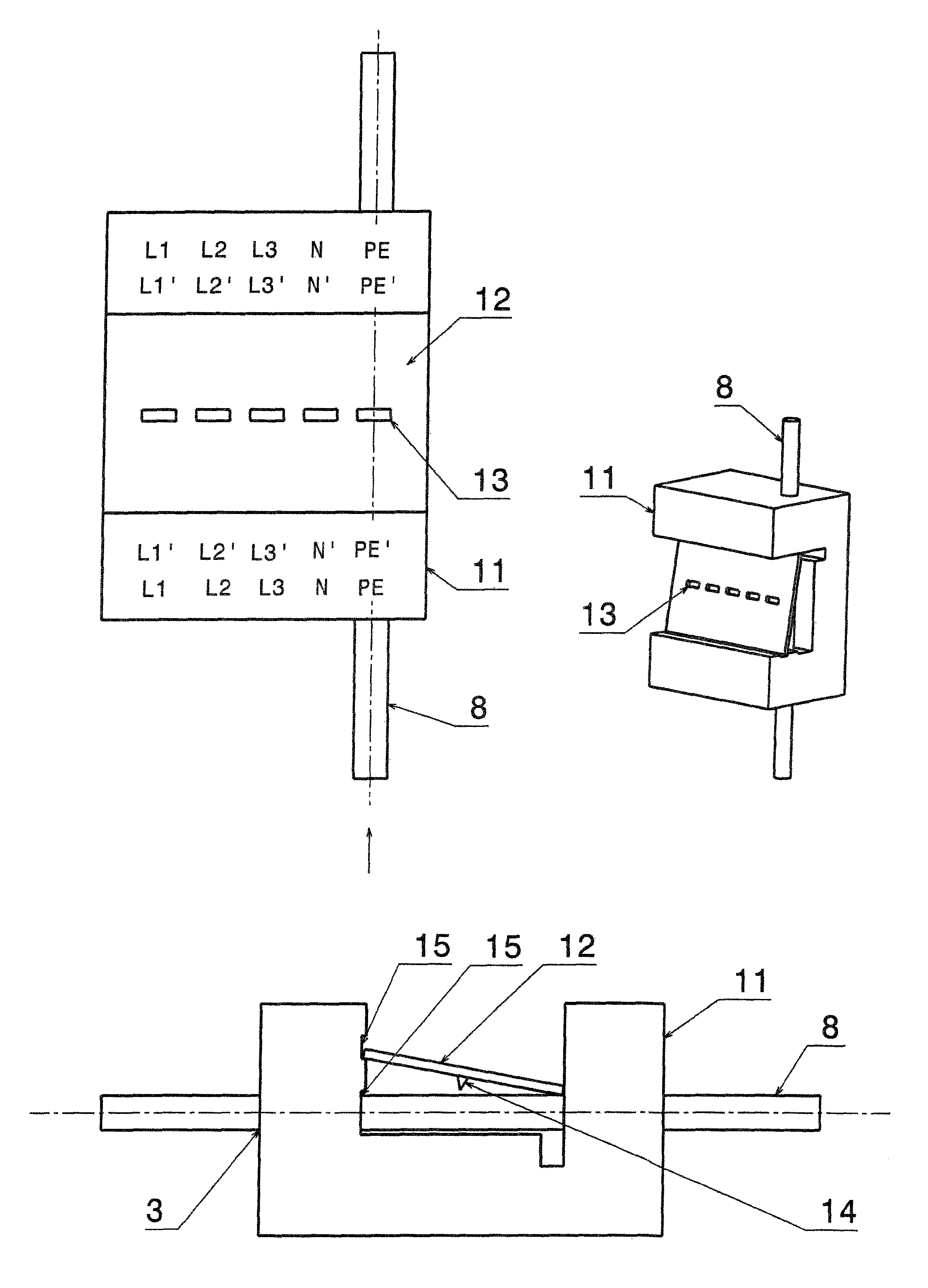

A surge protection device comprises at least one surge protection unit, consisting of a substantially U-shaped socket part and a plug part which can be fixed in the socket part and which receives a surge protector. Insulated electric conductors on or in the socket part are contacted by vampire taps or displacing terminals. The surge protection device also comprises openings or perforations formed in the socket part for receiving conductors. The openings are selectively designed so that the electric conductors are inserted into or through the openings, and the openings are exposed in a socket part region which can be covered by the socket part such that cutting surfaces located on the base of the plug part penetrate the conductor insulation during the plug-in process and directly contact the respective conductor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04M Class
- 4919 Applications Filed
- 4207 Patents Issued To-Date
- 85.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04M Class
- 15.38 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 3, 2029 |
