US Patent No: 9779958

Method of, and apparatus for, forming hard mask

---

Abstract

---

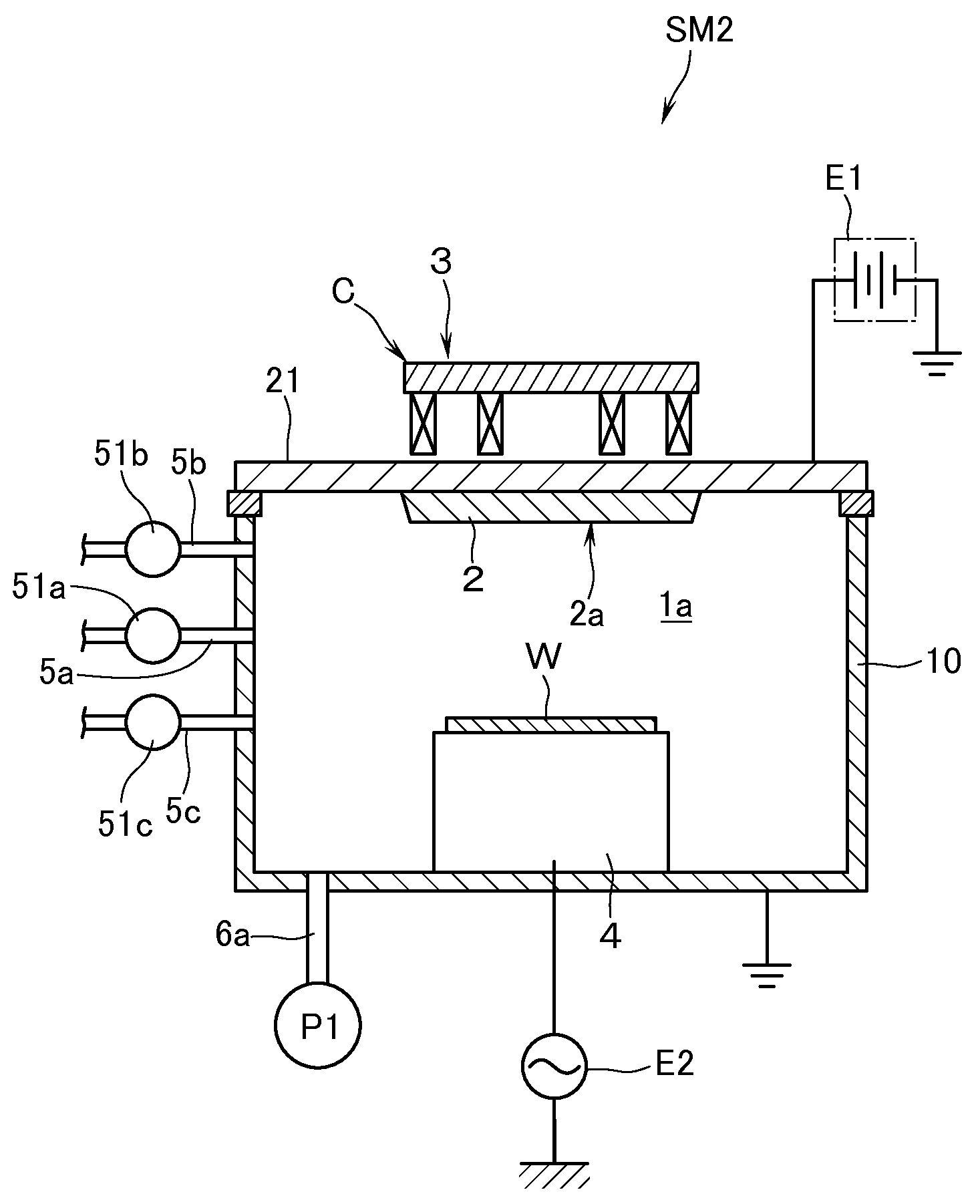

A method of forming a hard mask includes depositing step for depositing a titanium nitride film on a surface of a to-be-processed object; adsorbing step for adsorbing oxygen-containing molecules onto a surface of the titanium nitride film; and heating step for heating the titanium nitride film to a predetermined temperature.

---



---
