Light-based touch screen
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2017
Issued Date -
N/A
app pub date -
Apr 30, 2015
filing date -
Nov 2, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

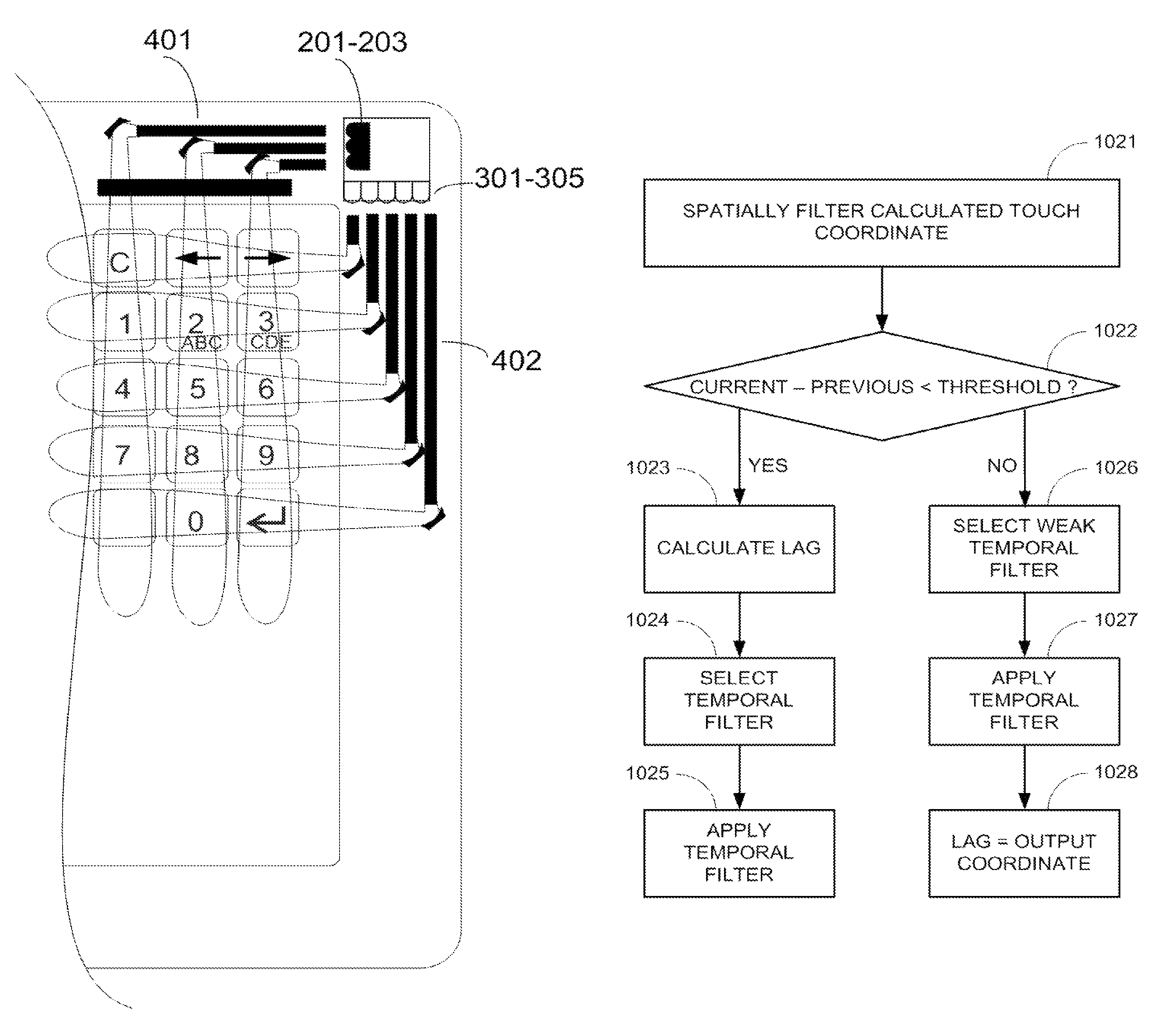

A state machine for controlling a sensor including a chip package coupled with photo-emitters and photo-detectors mounted in a device, and with a host processor, including an emitter driver, a detector driver, a signal processor for generating signals representing amounts of light detected by the detectors, and a scan controller for controlling the emitter and detector drivers to activate an automated sequence of emitter-detector pairs, the scan controller including registers for storing parameters designating emitter-detector pairs that are to be activated during the automated sequence, and for storing the signals generated by the signal processor for the emitter-detector pair activations, and at least one input/output pin for receiving parameters from the host processor to be loaded into the registers, and for outputting the stored signals in the registers to the host processor, for the host processor to identify therefrom location coordinates of an object near or touching the device.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G06F Class
- 57200 Applications Filed
- 45873 Patents Issued To-Date
- 80.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G06F Class
- 14.60 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 3, 2029 |
