Process and apparatus for testing substances for potential carcinogenicity
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2017
Issued Date -
N/A
app pub date -
Mar 19, 2010
filing date -
Mar 20, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

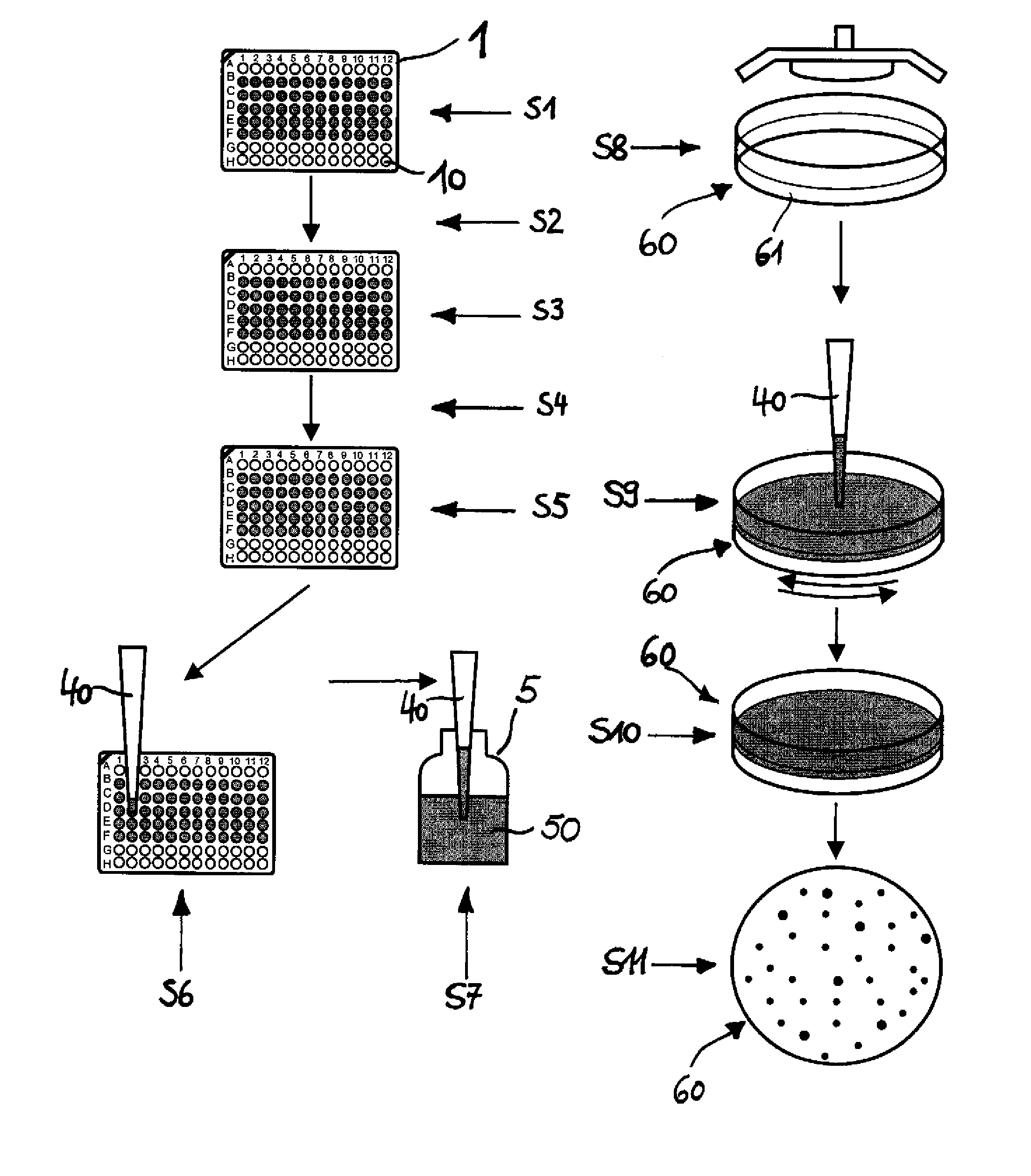

An apparatus (2) for the automatic testing of substances for carcinogenicity comprises: a plate support (3) on which at least one micro-well plate (1) can be placed; a movable pipetting unit (4) comprising a predetermined number of pipettes (40); a number of containers (5) containing a liquid culture medium (50), the number of containers (5) corresponding to the number of pipettes (40) of the pipetting unit (4); a dish support (6) on which a corresponding number of dishes (60) can be placed, each having a bottom and an upstanding side wall (601); a plurality of spinners (63) for spinning the dishes (60); a plurality of suction cups (62) for placing a lid (600) on each of the dishes; and a plurality of laterally arranged belts (64,65) for transporting the closed dishes (60) to an intermediate storage (8).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- C12Q Class
- 2467 Applications Filed
- 1330 Patents Issued To-Date
- 53.92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C12Q Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 3, 2029 |
