Determining a position of a hydraulic subsea actuator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2017
Grant Date -
Jul 9, 2015
app pub date -
May 27, 2013
filing date -
May 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

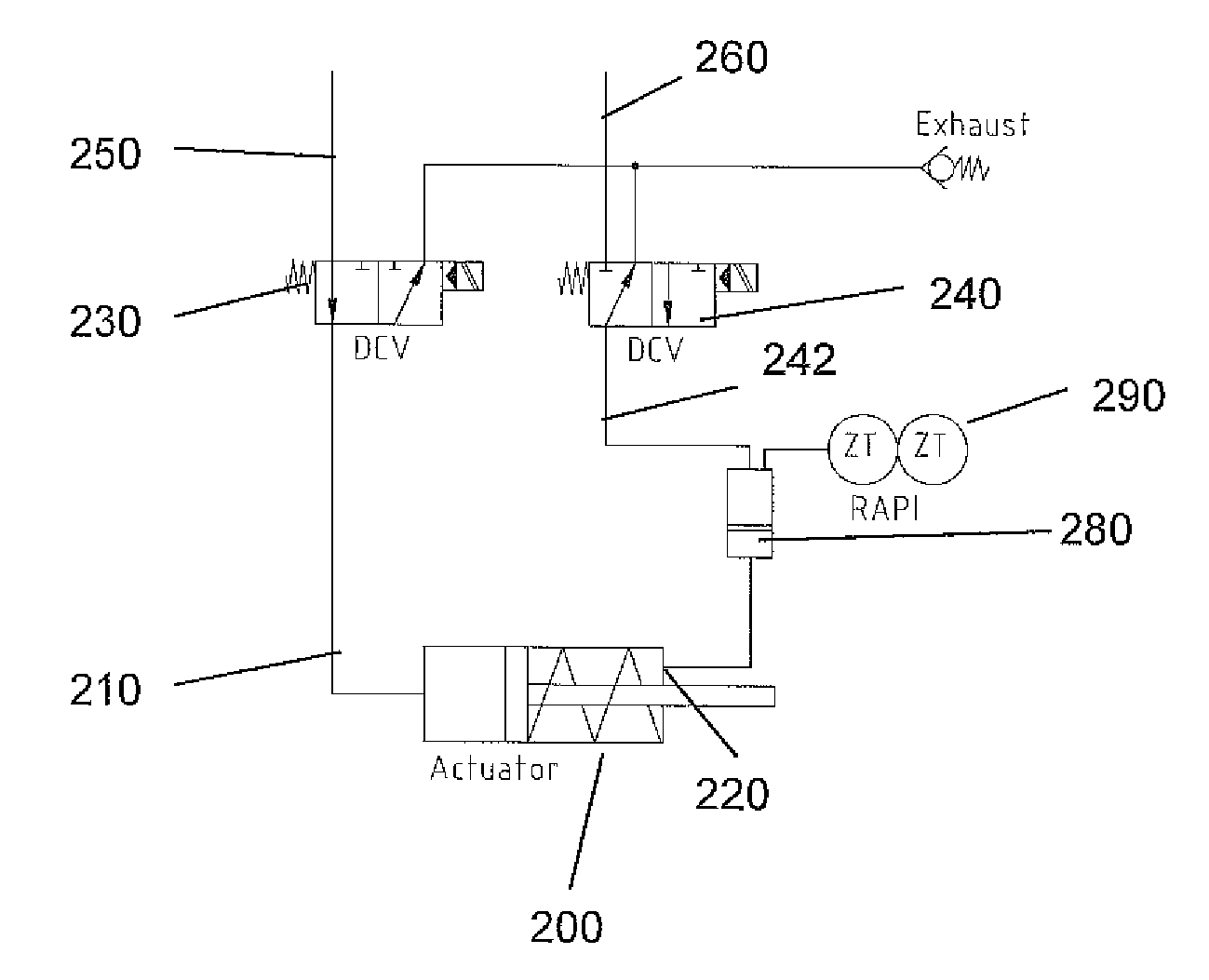

A method and an apparatus (280) for determining an estimate of a position of a hydraulic subsea actuator (200), wherein the hydraulic subsea actuator (200) has a fluid port (220) fluidly connected to a fluid source (260). The apparatus (280) comprises a hydraulic cylinder (310) connected in series between the fluid source (260) and the fluid port (220) of the hydraulic subsea actuator, and a movable piston (320) arranged in the second hydraulic cylinder (310), a position determining device, arranged to determine a position of the movable piston (320), and a signal processing device (350), arranged to calculate the estimate of the position of the hydraulic subsea actuator based on the position of the movable piston.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| NO | B1 | NO334269 | May 29, 2012 |
| WO | A1 | WO2013178579 | May 27, 2013 |
| GB | B | GB2517387 | May 27, 2013 |
International Classification(s)
- 2013 Application Filing Year
- F15B Class
- 471 Applications Filed
- 405 Patents Issued To-Date
- 85.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F15B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 3, 2029 |
