Adjustable guide vane mechanism for a turbine, turbine for an exhaust gas turbocharger and exhaust gas turbocharger
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2017
Grant Date -
May 14, 2015
app pub date -
Jan 1, 2015
filing date -
Jul 26, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

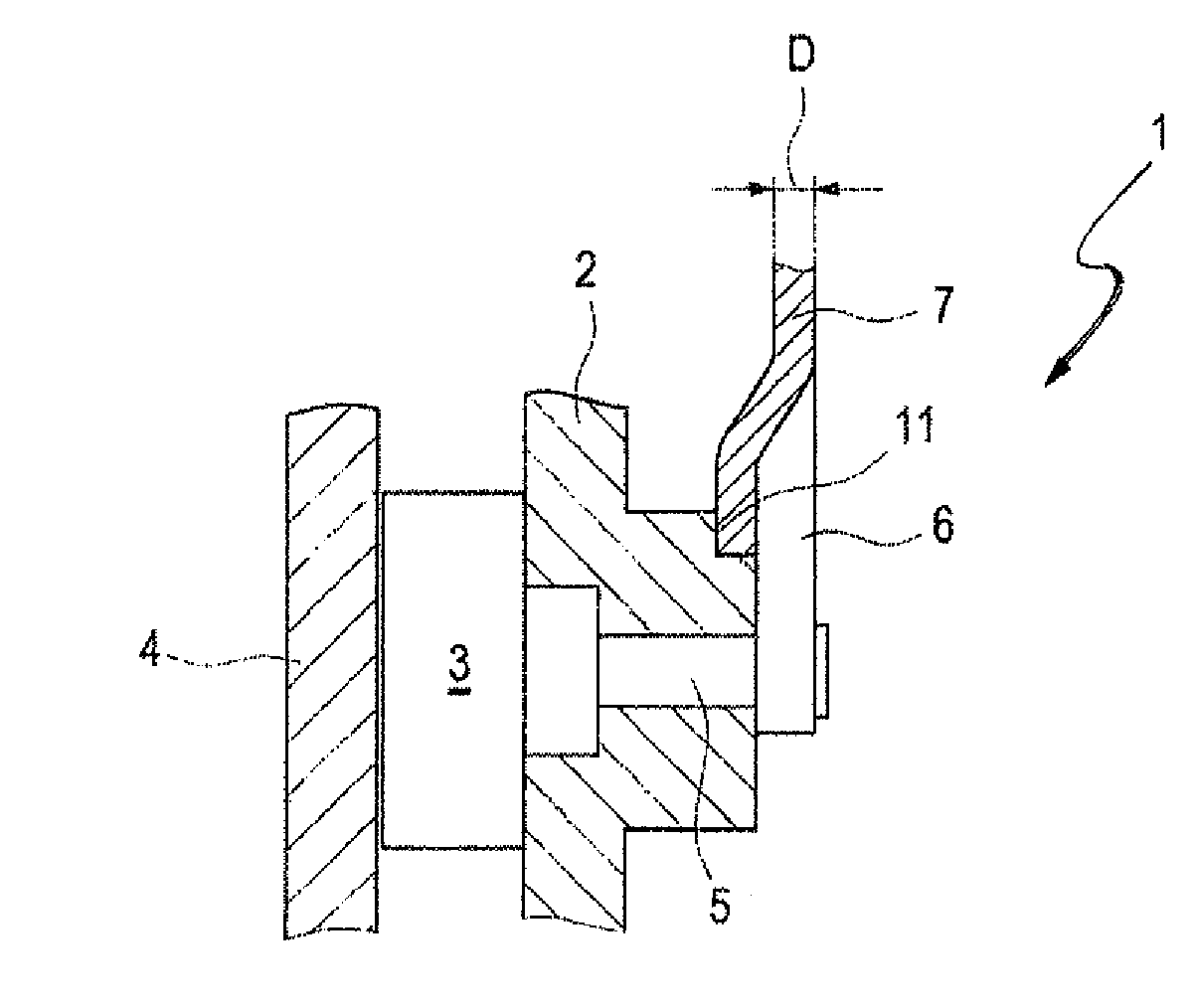

In an adjustable guide vane mechanism for a turbine, comprising a bearing ring with a plurality of guide vanes rotatably supported on the bearing ring by means of guide vane shafts provided with actuating levers which are engaged by a rotatable ring, the rotatable ring comprises axially spaced radial inner and outer sections with a radially inclined center section joining the spaced radial inner and outer sections, the radially inner section being rotatably supported and the radially outer section extending around the actuating levers and having recesses in which the actuating levers are received for pivoting the actuating levers and the guide vanes upon rotation of the rotatable ring.
